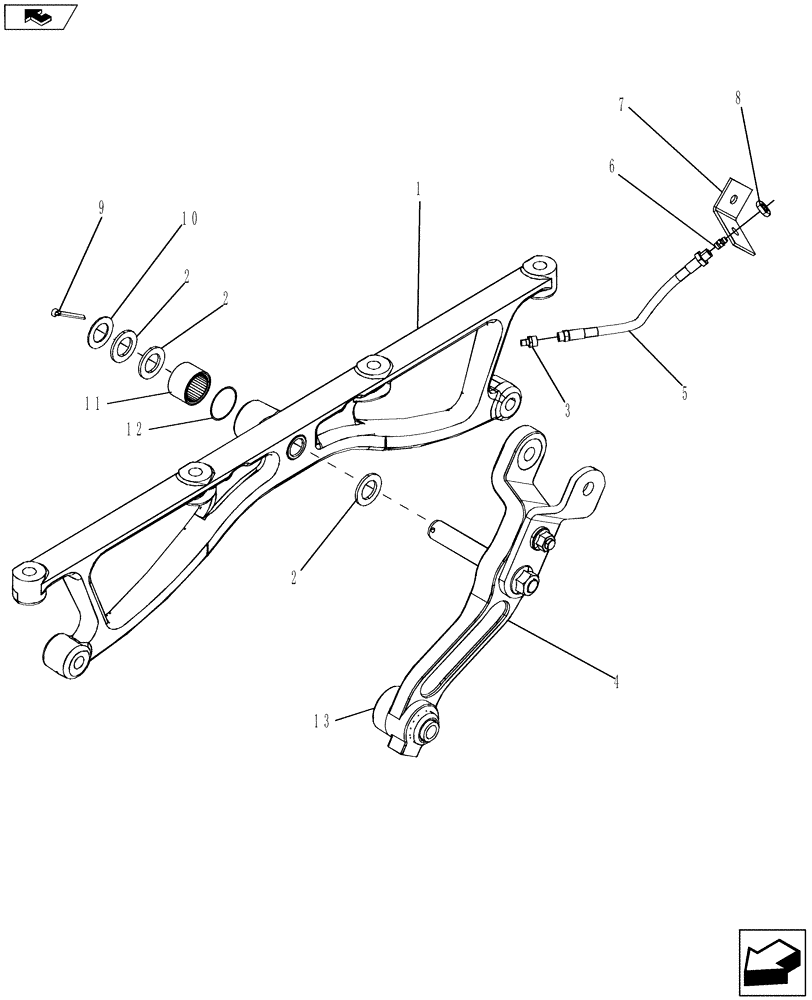

Запчасти Case IH 7130 (74.110.07) - HANGER ASSEMBLY ARM, RIGHT AND LEFT HAND (74) - CLEANING

1

84128519

PIVOT ASSY.

Shoe Shaker Assembly

2шт.

2

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

6шт.

3

219-418

ADAPTER,1/4"-1/8 NPTF

1шт.

4

84128533

LEVER

Shoe Shaker Assembly

2шт.

5

937773R91

HOSE,3.56 mm ID x 304.80 mm,

Bank Lube

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

7

178960C1

BRACKET

Steering Rear

1шт.

8

F53473

LOCK NUT,1/8-27 NPSM

1шт.

9

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

10

495-81056

WASHER,29/32" x 1 1/2" x 3/64

2шт.

11

551139R91

BEARING, NEEDLE

3шт.

12

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

Not Shown

2шт.

13

87538599

BUSHING,16mm ID x 38.2mm OD x 73mm L

Not Shown

1шт.
