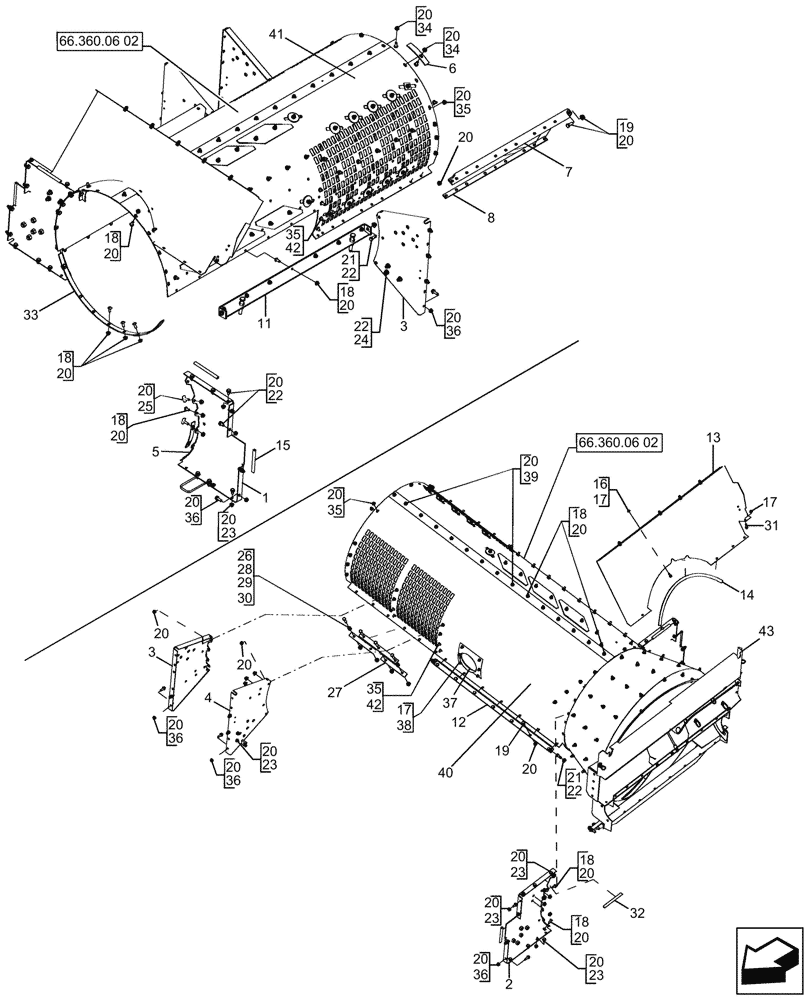

Запчасти Case IH 7130 (66.360.06[01]) - CAGE, FRONT (66) - THRESHING

1

84180972

SUPPORT

1шт.

2

87301087

BRACKET

1шт.

3

84180970

SUPPORT

2шт.

4

84136824

BRACKET

1шт.

5

1318900C1

SUPPORT

1шт.

6

186797C2

SUPPORT

1шт.

7

185386C1

SUPPORT

1шт.

8

183323C1

STRAP

1шт.

9

186785C2

REINFORCEMENT

1шт.

11

84161945

STIFFENER

1шт.

12

1324190C1

REINFORCEMENT

1шт.

13

87685417

SHEET

1шт.

14

1309111C1

SEAL,19mm W x 725mm L

1шт.

15

1327979C1

MOLDING

2шт.

16

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

18

87487071

SERRATED SCREW,M10 x 1.5 x 25mm

23шт.

19

87487059

BOLT

8шт.

20

86050279

FLANGE NUT,M10 x 1.5, Cl 10

94шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

16шт.

24

87343550

FLANGE BOLT,Hex, M12 x 25mm

3шт.

25

87106338

BOLT

2шт.

26

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

6шт.

27

186784C2

BAR

3шт.

28

87670764

BOLT,M12 x 61.8mm, Cl 10.9

6шт.

29

495-11053

WASHER,1/2", SAE

6шт.

30

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

6шт.

31

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

32

135370A1

PROTECTION STRIP

2шт.

33

186750C1

SUPPORT

1шт.

34

87487044

SCREW,Truss Slotted, M10 x 25mm, Cl 10.9

2шт.

35

87487056

SERRATED SCREW,M10 x 1.5 x 20mm, Cl 10.9

20шт.

36

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

14шт.

37

186700C1

COVER

1шт.

38

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

6шт.

39

87573369

SERRATED SCREW,Sl Truss, M10 x 20mm, Cl 10.9

8шт.

40

1321661C3

CAGE

1шт.

41

1318729C5

CAGE

1шт.

42

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

12шт.

43

84473715

COVER

Front

1шт.
