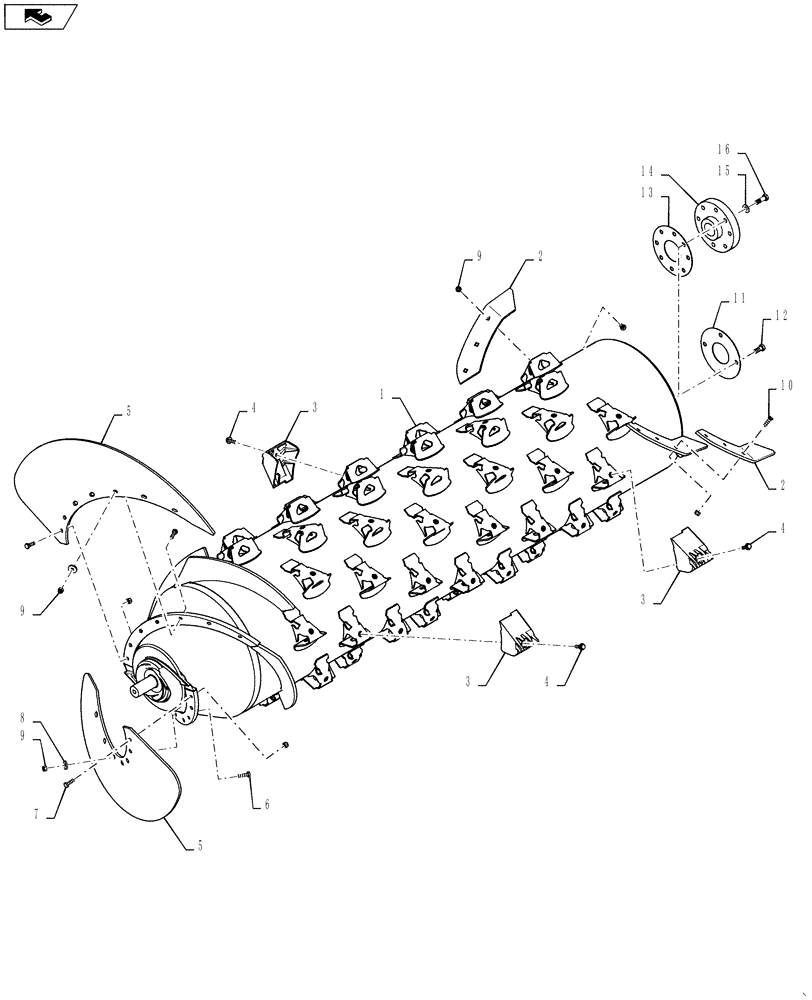

Запчасти Case IH 7130 (66.330.07) - ROTOR-SMALL TUBE RICE (66) - THRESHING

87723448

ROTOR

Complete Assembly

1шт.

1

NSS

NOT SOLD SEPARAT

Order Complete

1шт.

2

87544176

STEEL FLIGHT

Rear Kicker

2шт.

3

84317775

RASP BAR

Extended Ear, W/ Spike, 10 Degree

60шт.

4

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

60шт.

5

87532511

IMPELLER

Rotor inlet

2шт.

6

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

10шт.

7

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

4шт.

8

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

10шт.

9

412672

NUT,Hex, M12 x 1.75, Cl 10

20шт.

10

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

6шт.

11

NSS

NOT SOLD SEPARAT

Not Serviced

1шт.

12

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

13

87619363

PLATE

Rotor Load Ring 8 Bolt

1шт.

14

87619364

COUPLING

HD Rotor Drive 23 Tooth

1шт.

15

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

16шт.

16

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

8шт.
