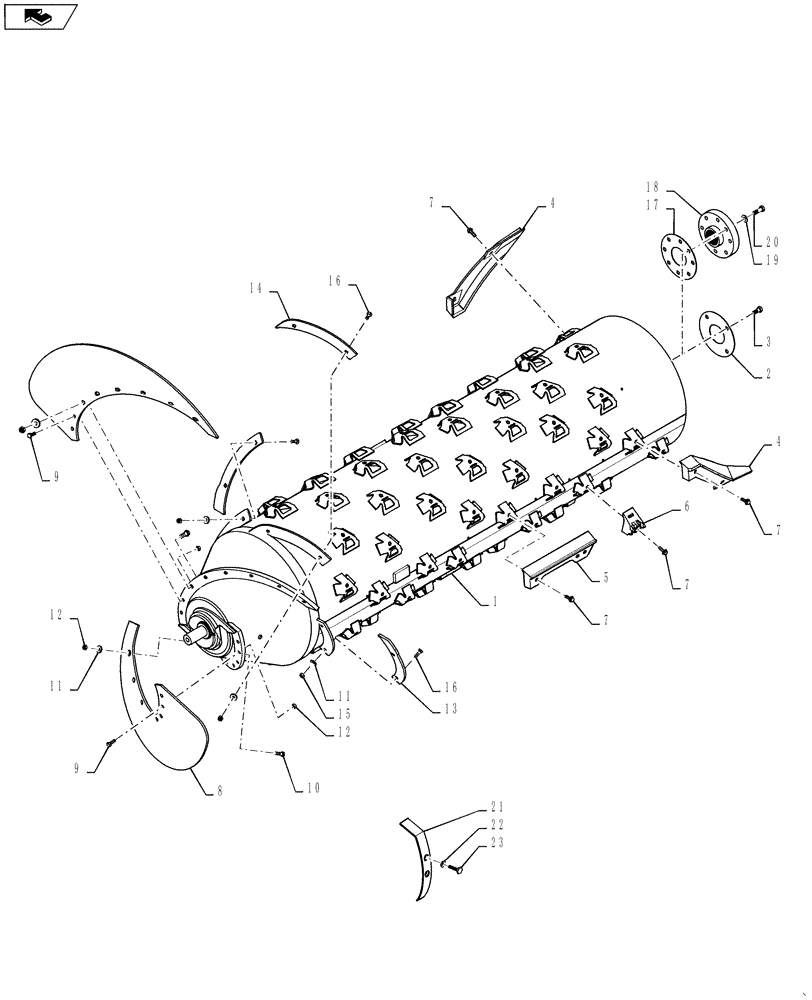

Запчасти Case IH 7130 (66.330.02) - ROTOR- STANDARD SMALL GRAIN W/ ANTI WIND (66) - THRESHING

87636590

ROTOR ASSY.

Complete Assy, Large Tube

1шт.

1

NSS

NOT SOLD SEPARAT

Order Complete Assyembly listed Above

1шт.

2

NSS

NOT SOLD SEPARAT

Rotor Plate

1шт.

3

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

4

1327676C1

BAR

Helical Kicker

2шт.

5

1318976C2

BAR,Straight Seperator

Straight Separator

4шт.

6

84164540

RASP BAR

W/O Spike, Modular Iron

66шт.

7

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

78шт.

8

410668A3

IMPELLER

AFX Rotor Inlet

2шт.

9

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

10

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

11

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

20шт.

12

199528A1

NUT

16шт.

13

84162517

EXTENSION

Inlet Flight

2шт.

14

84162516

EXTENSION

Intermediate

2шт.

15

412672

NUT,Hex, M12 x 1.75, Cl 10

8шт.

16

87314103

PLOW BOLT,M12 x 1.75 x 40mm, Cl 10.9

8шт.

17

87619363

PLATE

Rotor Load Ring, 8 Bolt

1шт.

18

87619364

COUPLING

HD Rotor Drive, 23 Tooth

1шт.

19

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

16шт.

20

87550181

BOLT,Hex, M16 x 95mm, Cl 10.9

8шт.

21

87416663

PLATE

Anti-Wind Extension, AFX Rotor

1шт.

22

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

23

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

24

87377347

DIA KIT, HARVESTER

Anti Wind, Includes Ref 10,11,21,22,23

1шт.
