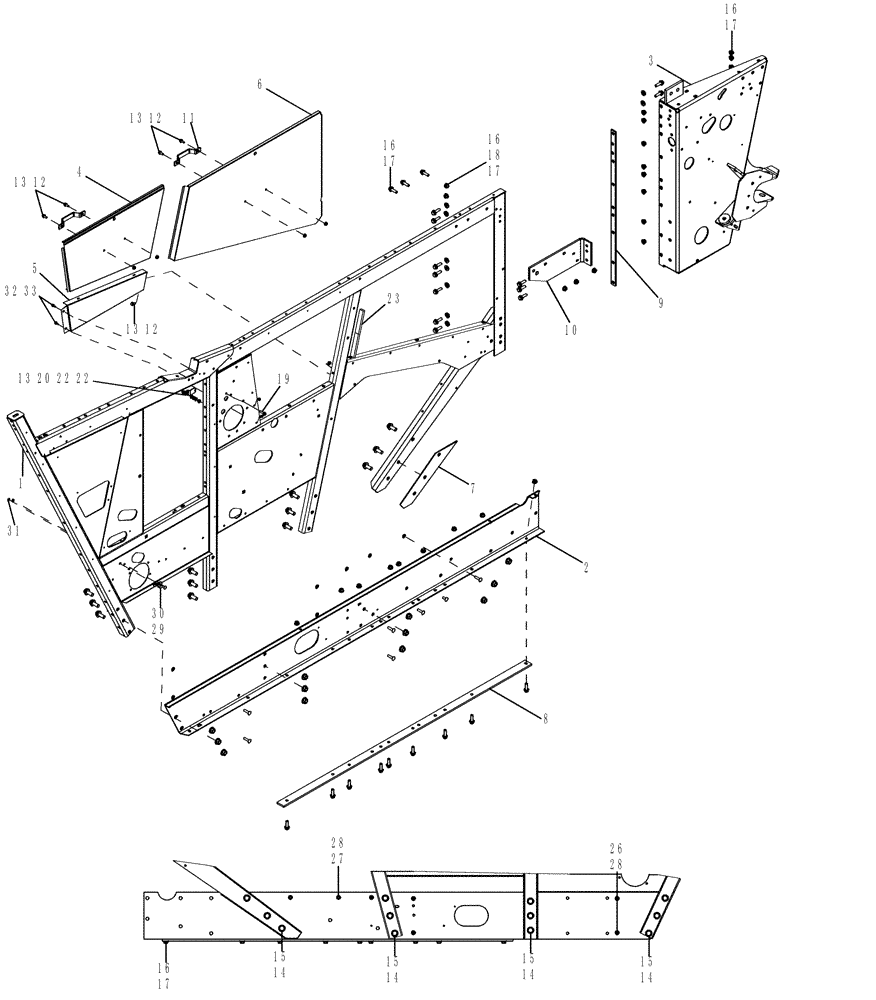

Запчасти Case IH 7130 (66.260.36) - SIDE ASSEMBLY, SEPARATOR, LEFT HAND (66) - THRESHING

1

84343137

SEPARATOR HOOD

Separator Side LH

1шт.

2

84332194

BRACKET

Sill Main L H

1шт.

3

84511580

POST

Front Left

1шт.

4

84201886

DOOR

Separator Side LH

1шт.

87472948

LATCH

Component Part Of Door, NA ONLY

1шт.

87472947

LATCH

Component Part Of Door, EU ONLY

1шт.

5

84201873

SUPPORT

Mid Center Left

1шт.

6

87745644

DOOR

1шт.

87472948

LATCH

Component Part Of Door, NA ONLY

1шт.

87472947

LATCH

Component Part Of Door, EU ONLY

1шт.

7

87357472

PLATE

1шт.

8

87545055

STRAP

Main Sill Flange

1шт.

9

87478648

STRAP

Front Post

1шт.

10

87701707

PLATE ASSY.

To Separator

1шт.

11

87735697

LATCH

2шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

13

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

14

86978772

FLANGE BOLT,Hex, M16 x 40mm, Cl 10.9, Full Thd

12шт.

15

86512498

FLANGE NUT,M16 x 2, Cl 10

12шт.

16

87695413

BOLT,M12 x 51.8mm, Cl 10.9

25шт.

17

86512497

FLANGE NUT,M12 x 1.75, Cl 10

25шт.

18

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

10шт.

19

847-3830

SERRATED SCREW,Sl Truss, M8 x 30mm, Cl 10.9

1шт.

20

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

3шт.

21

431114A1

BRACKET

Cleanout Access Door

1шт.

22

87681210

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

23

188062C2

DOOR SEAL,12.7mm H x 25.4mm W x 140mm L

2шт.

25

87682394

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 10.9

6шт.

27

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

28

87698854

NUT,M10

7шт.

29

87613189

WASHER,0.53" ID x 1.25" OD x 0.06" Thk

2шт.

30

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

31

131-440

PUSH-ON NUT

2шт.

32

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

33

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.
