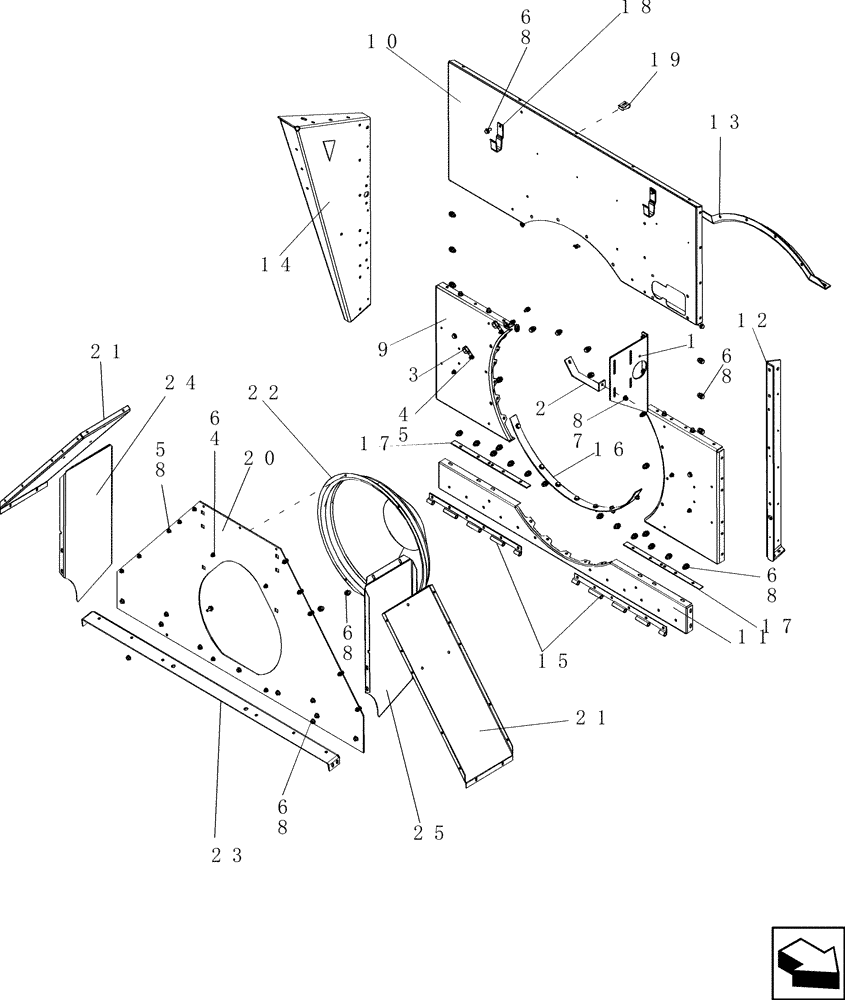

Запчасти Case IH 7130 (66.260.31) - SUPPORT ASSEMBLY, ROTOR CAGE REAR, SHIELDS FOR CHOPPER (66) - THRESHING

1

87393443

SUPPORT ASSY.

Speed Adjustment Rotor Drive, Left Hand

1шт.

2

87393444

SUPPORT ASSY.

Rotor Speed Adjustment Motor, Left Hand

1шт.

3

362666R1

CLIP

Wire Harness

2шт.

4

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

26шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

26шт.

6

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

77шт.

7

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

78шт.

9

191269C4

SUPPORT

Rotor Cage, Rear

2шт.

10

87704305

PANEL

Rotor Rear Upper

1шт.

11

182931C1

SUPPORT

Rear Lower Cage

1шт.

12

84128710

BRACKET

Rear Vertical Grain Tank, Right Hand

1шт.

13

1308696C1

SUPPORT

Rear Upper Cage

1шт.

14

87668629

SUPPORT ASSY.

Rear Vertical, Grain Tank, Left Hand

1шт.

15

182893C1

HINGE

Bottom

2шт.

16

182950C1

SUPPORT

Cage Filler

1шт.

17

182895C1

FILLER

Rear

2шт.

18

84138793

CLIP

Rocking Wrench

2шт.

19

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

5шт.

20

87704303

PLATE

Rear Rotor Discharge

1шт.

21

193393C1

COVER

Discharge, Side

2шт.

22

87619898

COVER

Rotor Gear Case 8 Bolt Coupler

1шт.

23

87757151

ANGLE

Engine Deck Support, Front

1шт.

24

182949C2

DEFLECTOR

Discharge, Right Hand

1шт.

25

182948C2

DEFLECTOR

Discharge, Left Hand

1шт.
