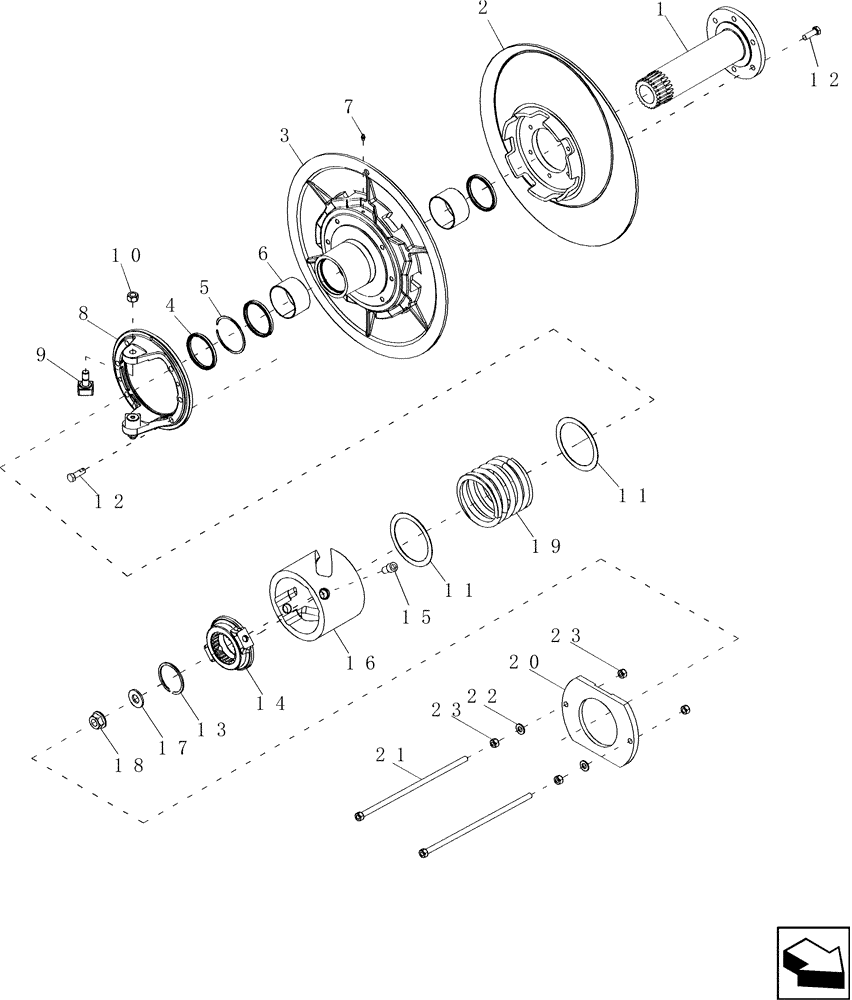

Запчасти Case IH 7130 (66.260.30) - PULLEY ASSEMBLY TORQUE SENSING UNIT (66) - THRESHING

1

87308245

HUB CAP

Half Pulley, 6130/7130

1шт.

1

184489C1

HUB

Half Pulley, 5130 Only

1шт.

2

87373385

PULLEY

Rotor Driven Fixed, 6130/7130 Only

1шт.

2

87369115

PULLEY

Rotor Driven Fixed, 5130 only

1шт.

3

87308253

PULLEY ASSY.

Rotor Driven Variable, 6130/7130 Only

1шт.

3

450621A1

PULLEY

Rotor Driven Variable, 5130 only

1шт.

4

87477369

WIPER SEAL

6130/7130 Only

3шт.

4

193965C92

SEAL

5130 Only

3шт.

5

87309921

RING

6130/7130 Only

1шт.

5

537602R1

RING

5130 Only

1шт.

6

87394078

PACKAGE,SERVICE

Bushing, Variable Pulley, Incl 4, 6130/7130 Only

2шт.

6

87400246

KIT

Bushing, Variable Pulley, Incl 4, 5130 Only

2шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

87308254

HUB CAP

Cam Follower, 6130/7130 Only

1шт.

8

411411A1

CAM FOLLOWER

Cam Follower, 5130 Only

1шт.

9

87554227

CAMSHAFT BEARING,1-1/2" OD x 2-3/8" OAL, 5/8" - 18

6130/7130 Only

2шт.

9

86582880

BEARING,15.9 mm ID x 38.1 mm OD x 60.3 mm

5130 only

2шт.

10

425-1110

NUT,5/8"-18, G5

2шт.

11

87310702

THRUST BEARING

6130/7130 Only

2шт.

11

188210C91

CAM FOLLOWER

5130 only

1шт.

12

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

13

87309922

RING

6130/7130 Only

1шт.

13

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

5130 Only

1шт.

14

87308257

HUB CAP

Cam Rotor Drive, 6130/7130 Only

1шт.

14

411410A1

HUB,60.58mm ID x 137.4mm OD x 42mm L

Cam Rotor Drive, 5130 Only

1шт.

15

194167C1

SCREW,5/8 - 11" x 1"

2шт.

16

87313007

CAM

Torque Sensing (45 Degree), 6130/7130 Only

1шт.

16

87436839

CAM

Torque Sensing (45 Degree), 5130 Only

1шт.

17

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

1шт.

18

1315288C1

FLANGE NUT

1шт.

19

87308258

COIL SPRING

Rotor Drive Torque Sensing, 6130/7130 Only

1шт.

19

413160A1

SPRING

Rotor Drive Torque Sensing, 5130 Only

1шт.

20

86992943

PLATE

Torque Sensing Unit Spring Compressor, 5130 Only

1шт.

20

84128607

PLATE

Torque Sensing Unit Spring Compressor, 6130/7130 Only

1шт.

21

86992947

ROD

Torque Sensing Spring

2шт.

22

495-11053

WASHER,1/2", SAE

2шт.

23

429-108

NUT,1/2"-13, G8

4шт.
