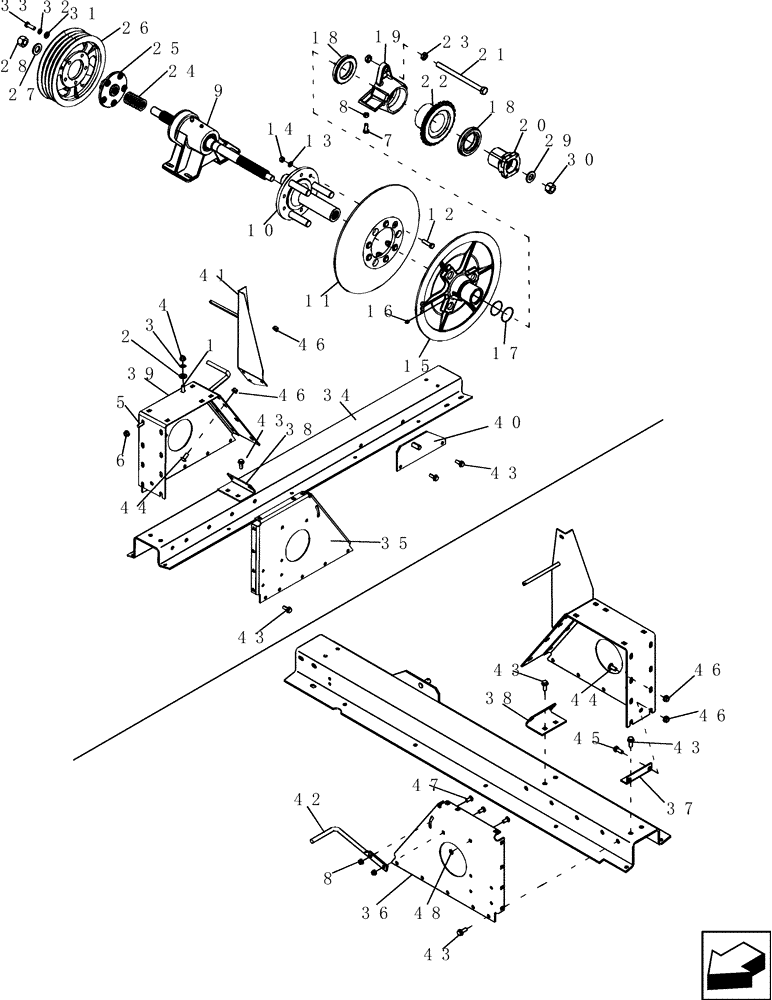

Запчасти Case IH 7130 (66.260.26) - SEPARATOR JACKSHAFT WITH PULLEYS AND SUPPORT- BEATER OPTION (66) - THRESHING

1

87495307

CARRIAGE BOLT,M12 x 45mm, Cl 10.9

6шт.

2

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

3

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

4

337475

NUT,M12, Cl 10

6шт.

5

87695427

CARRIAGE BOLT,M12 x 35mm, Cl 10.9

4шт.

6

87698855

PUSH-ON NUT

4шт.

7

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

9

87744680

HOUSING

Separator Jackshaft, 5130 Only

1шт.

9

87609224

HOUSING ASSY.

Separator Jackshaft, 61/7130 Only

1шт.

10

87307489

HUB

Stationary, Rotor Drive, 61/7130 Only

1шт.

10

87481453

HUB

Rotor Drive Variator, 5130 Only

1шт.

11

87602134

PULLEY

Rotor Drive Fixed, 61/7130 Only

1шт.

11

87529708

PULLEY ASSY.

Rotor Drive Fixed, 5130 Only

1шт.

12

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

13

492-21050

LOCK WASHER,1/2"

6шт.

14

429-108

NUT,1/2"-13, G8

6шт.

15

87307503

PULLEY ASSY.

Rotor Drive Variable, 61/7130 Only

1шт.

15

413164A1

PULLEY,520.7mm OD

Rotor Drive Variable, 5130 Only

1шт.

16

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

17

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

61/7130 Only

2шт.

17

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

5130 Only

2шт.

18

87307506

BALL BEARING,82.54mm ID x 132.06mm OD x 22.86mm W

61/7130 Only

2шт.

18

278927A1

THRUST BEARING,69.84mm ID x 113.79mm OD x 22.1mm W

5130 Only

2шт.

19

87307508

SLEEVE

Variator Pulley, Female, 61/7130 Only

1шт.

19

194394C1

HUB

Variator Pulley, Female, 5130 Only

1шт.

20

87307510

COUPLING

Universal Joint, 61/7130 Only

1шт.

20

87733473

COUPLING,20T

Universal Joint, 5130 Only

1шт.

21

413-12176

BOLT,3/4"-10 x 11", Gr 5

1шт.

22

87307512

SLEEVE

Variator Pulley, Male, 61/7130 Only

1шт.

22

87678413

SPROCKET

Variator Pulley, Male, 5130 Only

1шт.

23

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

24

87313981

WASHER,1.66" ID x 2.5" OD x 0.06" Thk

8шт.

25

87677098

PULLEY ASSY.

Hub Separator Driven

1шт.

26

87677105

PULLEY ASSY.

Separator Driven

1шт.

27

87301675

WASHER,1.38" ID x 2.5" OD x 0.25" Thk

1шт.

28

231-41120

NUT,1 1/4"-7, GB

1шт.

29

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

30

232-41316

NUT,1"-8, GC

1шт.

31

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

5шт.

32

87016618

LOCK WASHER,M16

5шт.

33

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

5шт.

34

84153801

CHANNEL

Separator Jackshaft Support

1шт.

35

87393437

SUPPORT

Separator Jackshaft, Right Hand

1шт.

36

87393438

SUPPORT

Separator Jackshaft, Left Hand

1шт.

37

87757057

SUPPORT

Separator Jackshaft

1шт.

38

87757061

SUPPORT

Separator Jackshaft

1шт.

39

87393439

SUPPORT

Separator Jackshaft Top

1шт.

40

87757085

GUIDE

Auxiliary Shift Handle

1шт.

41

84185358

BODY

Separator Belt Channel

1шт.

42

87331545

ROD

Separator Belt Guide

1шт.

43

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

16шт.

44

87695426

CARRIAGE BOLT,M12 x 30mm, Cl 0.9

10шт.

45

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

46

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

47

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

48

87698854

NUT,M10

1шт.
