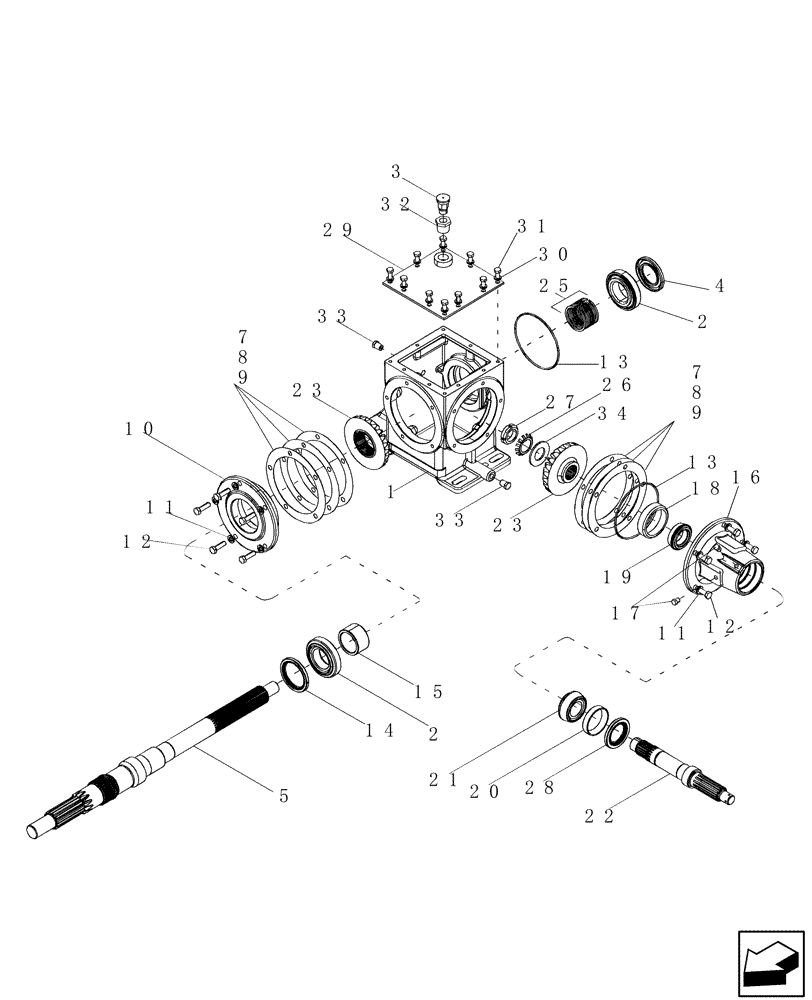

Запчасти Case IH 7130 (60.165.05) - GEAR CASE ASSEMBLY, CHOPPER DRIVE (60) - PRODUCT FEEDING

87608781

GEARBOX

Gear Case Assy, Chopper Drive For 61/7130

1шт.

87744660

GEARBOX

GearBox Assy Chopper Drive, For 5130

1шт.

1

181278C1

BEARING HOUSING

Separator Jackshaft

1шт.

2

87341589

BEARING ASSY,47.63mm ID x 90mm OD x 20mm W

2шт.

3

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

1шт.

4

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

Jackshaft Hub Forward

1шт.

5

87386758

SHAFT

Chopper Separator Jackshaft, 61/7130

1шт.

5

87736433

SHAFT

Chopper Separator Jackshaft, 5130

1шт.

6

195484C2

SHIM KIT

Forward Drive Rear Bell Housing, Inc 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHIM, 0.005 mm, Forward Drive Rear Bell Housing

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM, 0.007 mm, Forward Drive Rear Bell Housing

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM, 0.020 mm, Forward Drive Rear Bell Housing

1шт.

10

181274C1

BEARING HOUSING,79.375 mm ID x 177.8 mm OD x 38.1 mm

Separator Drive Jackshaft Bearing

1шт.

11

492-11038

LOCK WASHER,3/8"

10шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

13

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

2шт.

14

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

Jackshaft Hub, Rear

1шт.

15

181269C1

SPACER

Separator Drive Jackshaft, Rear

1шт.

16

191245C2

HUB

Forward Drive Bell, Rear

1шт.

17

217-84

PLUG,Hex Hd, 1/8"-27, Brass

2шт.

18

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

1шт.

19

1345296C1

ROLLER BEARING,1.3755" ID x 3" OD x 0.9375"

1шт.

20

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

21

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

22

181195C1

SHAFT

Chopper Drive

1шт.

23

243333A1

BEVEL GEAR

Chopper Drive, 23T/24T, Standard

1шт.

23

87608658

GEAR SET

Chopper Drive, 28T/21T, Fast Speed

1шт.

24

1315284C1

PACKAGE

Ring Drive Gear Snap, Inc 25

1шт.

25

181266C1

RING, SNAP

RING SNAP Drive Gear, 0.135 mm

1шт.

25

181265C1

RING, SNAP

RING SNAP Drive Gear, 0.132 mm

1шт.

25

181264C1

RING, SNAP

RING SNAP Drive Gear, 0.129 mm

1шт.

25

181263C1

RING, SNAP

RING SNAP Drive Gear, 0.126 mm

1шт.

25

181262C1

RING, SNAP

RING SNAP Drive Gear, 0.123 mm

1шт.

25

181261C1

RING, SNAP

RING SNAP Drive Gear, 0.120 mm

1шт.

25

181260C1

RING, SNAP

RING SNAP Drive Gear, 0.117 mm

1шт.

25

181259C1

RING, SNAP

RING SNAP Drive Gear, 0.114 mm

1шт.

25

181258C1

RING, SNAP

RING SNAP Drive Gear, 0.111 mm

1шт.

25

181257C1

RING, SNAP

RING SNAP Drive Gear, 0.108 mm

1шт.

25

181256C1

RING, SNAP

RING SNAP Drive Gear, 0.105 mm

1шт.

25

181255C1

SNAP RING

Drive Gear, 0.102 mm

1шт.

26

55-2006

BEARING WASHER,Type TW-106

1шт.

27

54-2006

BEARING LOCK NUT,Bearing, 1.1811" Bore

1шт.

28

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

Oil Forward Gear Case Input

1шт.

29

181281C1

COVER

Chopper Drive

1шт.

30

492-11031

LOCK WASHER,5/16"

10шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

32

144041

SEAL,3/4" NPT Male x 3/8" NPT Fem

1шт.

33

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

2шт.

34

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

1шт.
