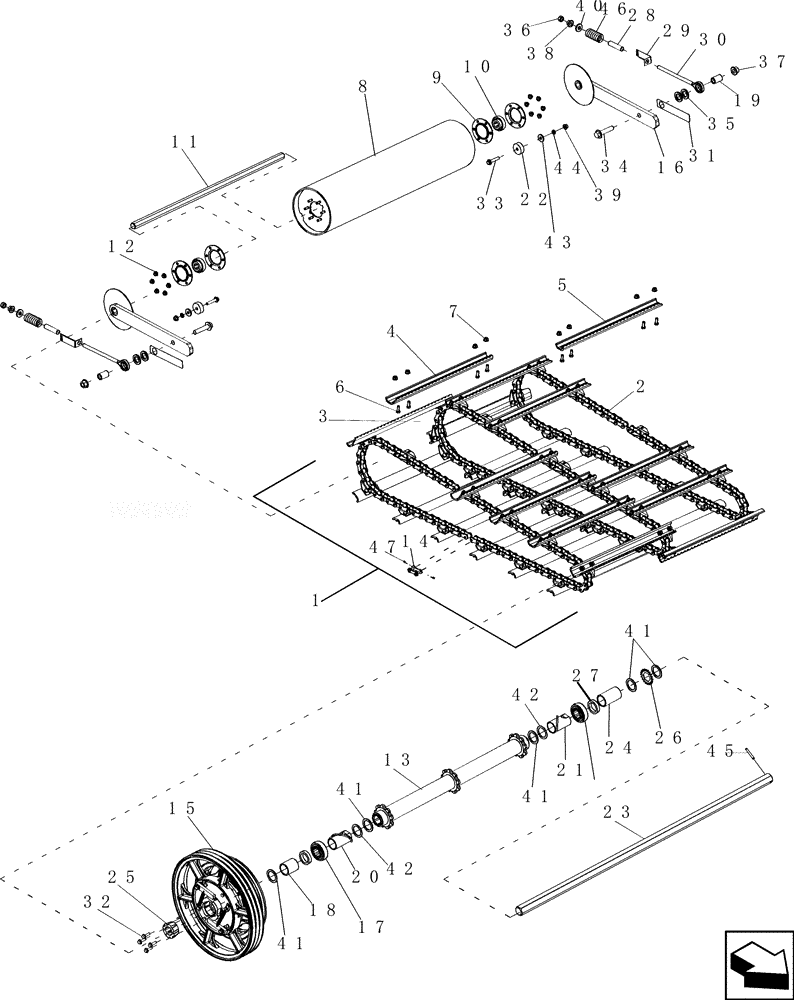

Запчасти Case IH 7130 (60.150.15[01]) - FEEDER CONVEYOR, ROCK TRAP (60) - PRODUCT FEEDING

1

84207192

CHAIN,75 Links x 41.4mm = 3105mm

Feeder, Includes 2-7

1шт.

2

118661A1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

Outer

2шт.

3

1989529C1

CHAIN,A557, 75 Links x 41.4mm = 3105mm

Center

1шт.

4

84148076

SLAT

RH, Serrated

12шт.

5

84148074

SLAT

LH, Serrated

12шт.

6

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

88шт.

7

84207195

NUT,M10 x 1.5

88шт.

8

84274643

ROLLER,228.6mm OD x 1091.6mm L

1шт.

87674764

BOLT

Studs For Front Conveyor Drum (Not Shown)

12шт.

9

87667404

FLANGED BEARING

Conveyor Front Drum

4шт.

10

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

Conveyor Front Drum

2шт.

11

87323562

SHAFT

Conveyor Front Drum

1шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

12шт.

13

84122242

SPROCKET ASSY.,9T

Feeder Conveyor

1шт.

14

1324294C1

LINK,40.893mm Pitch

3шт.

15

NSS

NOT SOLD SEPARAT

CLUTCH, Feeder Conveyor with Rock Trap

1шт.

16

87687030

ARM ASSY.

Conveyor

2шт.

17

87620467

BALL BEARING,44.48mm Hex x 100mm OD x 42.86mm W

2шт.

18

87740697

SPACER,52.39mm ID x 63.5mm OD x 68.8mm L

Clutch Hub

1шт.

19

87688473

SPACER,21mm ID x 31.75mm OD x 47.7mm L

Arm

2шт.

20

87751613

SPACER

Sprocket Cleanout, Right Hand

1шт.

21

87751611

SPACER

Sprocket Cleanout, Left Hand

1шт.

22

87389815

SPACER,13.5mm ID x 57.2mm OD x 20mm L

Feeder Drum Stop

2шт.

23

84174008

SHAFT

Feeder Conveyor

1шт.

24

87740715

SPACER

Sprocket

1шт.

25

87728796

HUB

Locking

1шт.

26

87674273

SPROCKET ASSY.

Beater Drive, 30T

1шт.

27

87620468

SPACER

Bearing

2шт.

28

84147444

SPACER,17.4mm ID x 22.23mm OD x 91mm L

Spring Tensioner

2шт.

29

84128484

BRACKET

Indicator

2шт.

30

84158123

EYEBOLT

BOLT, EYE

2шт.

31

84359856

STRAP

Feeder Side

2шт.

32

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

4шт.

33

84148135

BOLT

2шт.

34

84163827

BOLT,M20 x 118.9mm OAL, Cl 10.9

2шт.

35

495-82234

WASHER,32.54mm ID x 50.8mm OD x 6.1mm Thk

4шт.

36

392530

NUT,M16, Cl 10

2шт.

37

86512499

FLANGE NUT,M20 x 2.5, Cl 10

2шт.

38

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

39

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

40

325594

WASHER,M17 x 40mm OD x 5mm Thk

2шт.

41

87690483

WASHER,2.03" ID x 2.75" OD x 0.12" Thk

1шт.

42

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

1шт.

43

495-81162

WASHER,17/32" x 1 1/2" x .179"

2шт.

44

492-11050

LOCK WASHER,1/2"

2шт.

45

87016664

PIN,12mm OD x 70mm L, Coiled

1шт.

46

84272052

SPRING

2шт.

47

1329837C2

PIN,2.63mm OD

6шт.
