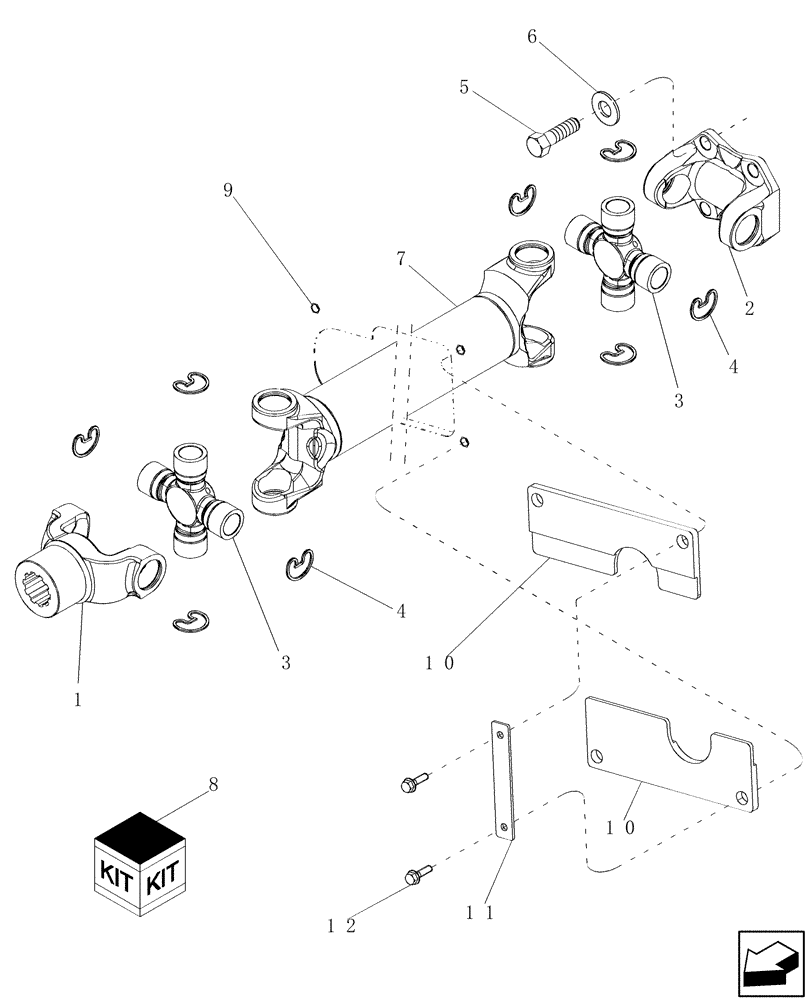

Запчасти Case IH 7130 (60.130.02) - DRIVESHAFT, SEPARATOR JACKSHAFT (60) - PRODUCT FEEDING

1

87600701

YOKE

STD Yoke

1шт.

87600699

YOKE

HD Yoke

1шт.

2

87600700

FLANGE

1шт.

3

NSS

NOT SOLD SEPARAT

Component Parts Ref to 1, 2, 8

2шт.

4

87600698

SNAP RING

8шт.

5

87035075

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

7

87330901

DRIVE SHAFT

TUBE ASSEMBLY, Driveshaft

1шт.

8

87597409

BEARING ASSY

Bearing, Incl 3, 4

1шт.

9

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

10

87584502

SEAL

Feeder Driveshaft

2шт.

11

87624399

STRAP

Driveshaft Seal Retainer

2шт.

12

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.
