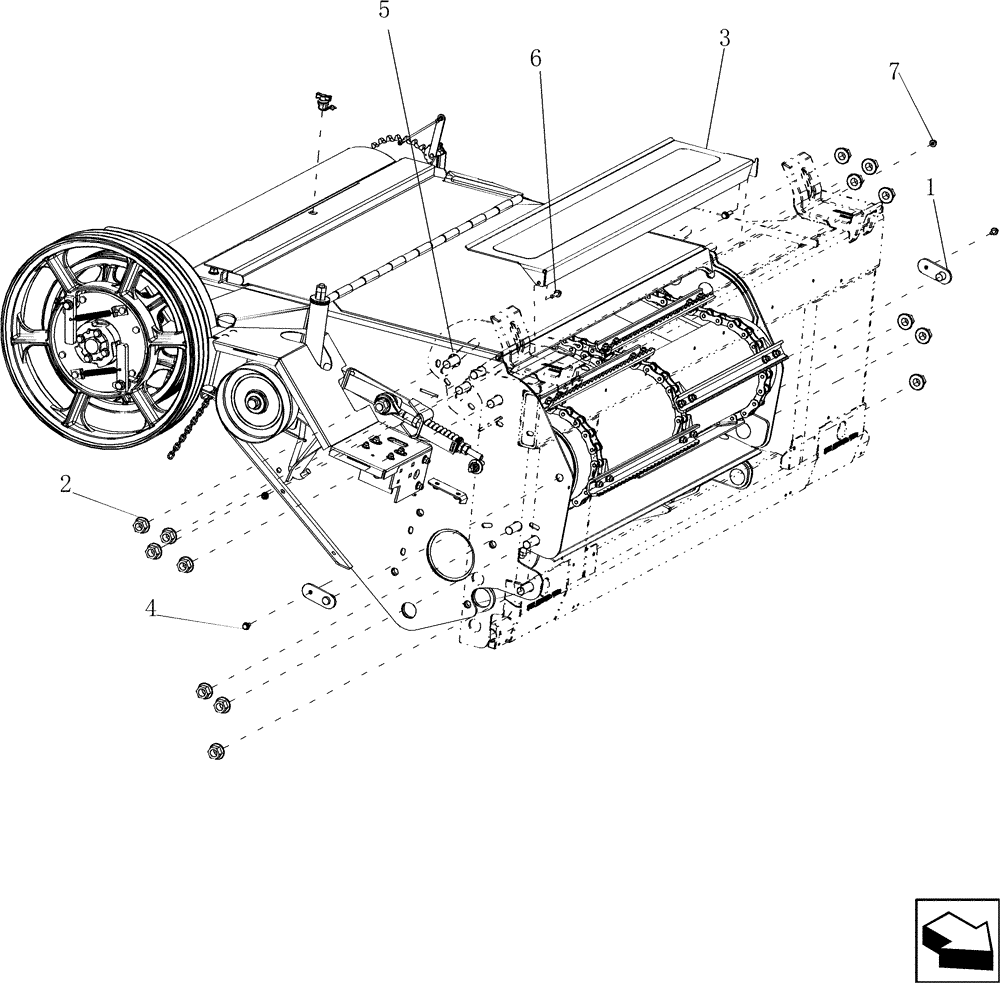

Запчасти Case IH 7130 (60.120.18) - FEEDER - HILLCO READY (60) - PRODUCT FEEDING

1

87106719

BRACKET

2шт.

2

86512499

FLANGE NUT,M20 x 2.5, Cl 10

14шт.

3

87677711

SHEET ASSY.

Top

1шт.

4

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

5

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

14шт.

6

87030775

BOLT,M8 x 38.1mm, Cl 10.9

2шт.

7

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

8

87604223

HANDRAIL

Front Short, Left Hand, (Not Shown)

1шт.

9

87619742

TUBE,28.2-33.35 mm OD

Handrail, Tube (Not Shown)

3шт.

10

87583643

LEVER ASSY.

Not Shown

1шт.
