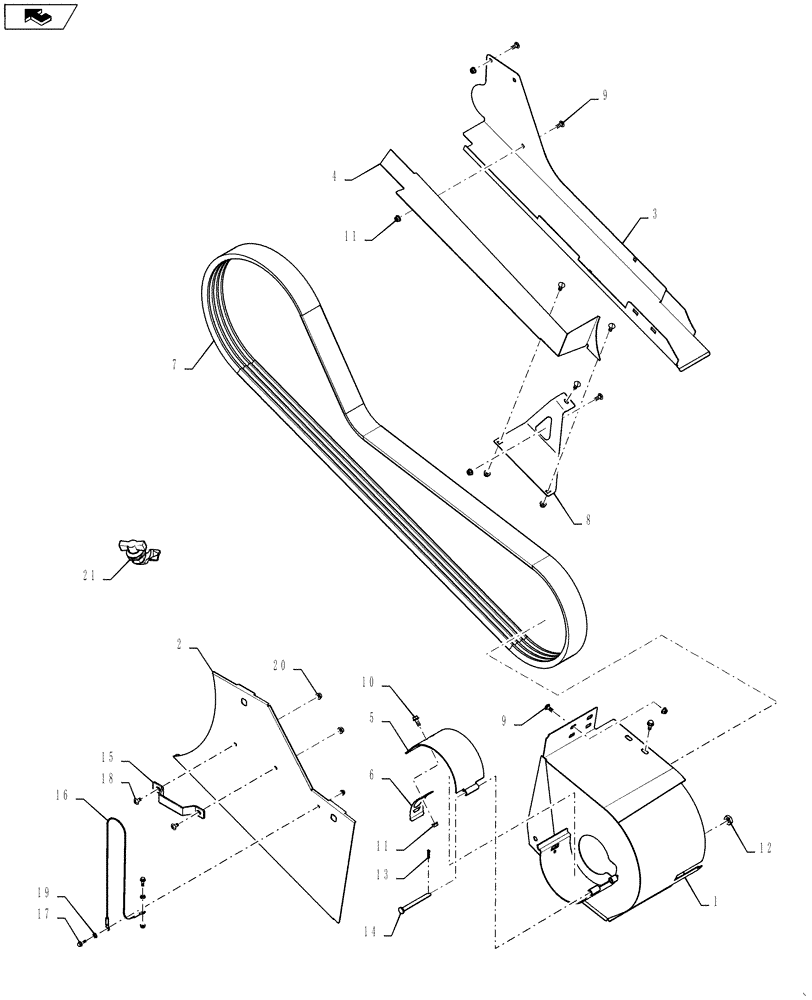

Запчасти Case IH 7130 (60.120.13) - HEADER DRIVE, ROCK TRAP, SINGLE SPEED (60) - PRODUCT FEEDING

1

84378114

SHIELD

Single Speed

1шт.

1

84378109

SHIELD

Two Speed

1шт.

2

87754566

COVER ASSY

1шт.

3

84378104

SHIELD

1шт.

4

87720948

COVER ASSY

Single Speed

1шт.

4

87720940

COVER ASSY

Two Speed

1шт.

5

87753756

SHIELD

1шт.

6

86638316

LATCH

1шт.

7

87332161

V-BELT

1шт.

8

84154101

BRACKET

1шт.

9

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

10шт.

10

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

11

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

12

10717511

THIN NUT,Thin, M16 x 2, Cl 04

1шт.

13

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

14

86605625

CLEVIS PIN,M10 x 110

1шт.

15

87686906

LATCH

1шт.

16

132657A2

CABLE

1шт.

17

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

18

847-3816

SERRATED SCREW,Sl Truss, M8 x 16mm, Cl 10.9

2шт.

19

86050300

FLANGE NUT,M6 x 1.0, Cl 10

4шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

21

138699A2

LOCK

Used On Side Shield

2шт.
