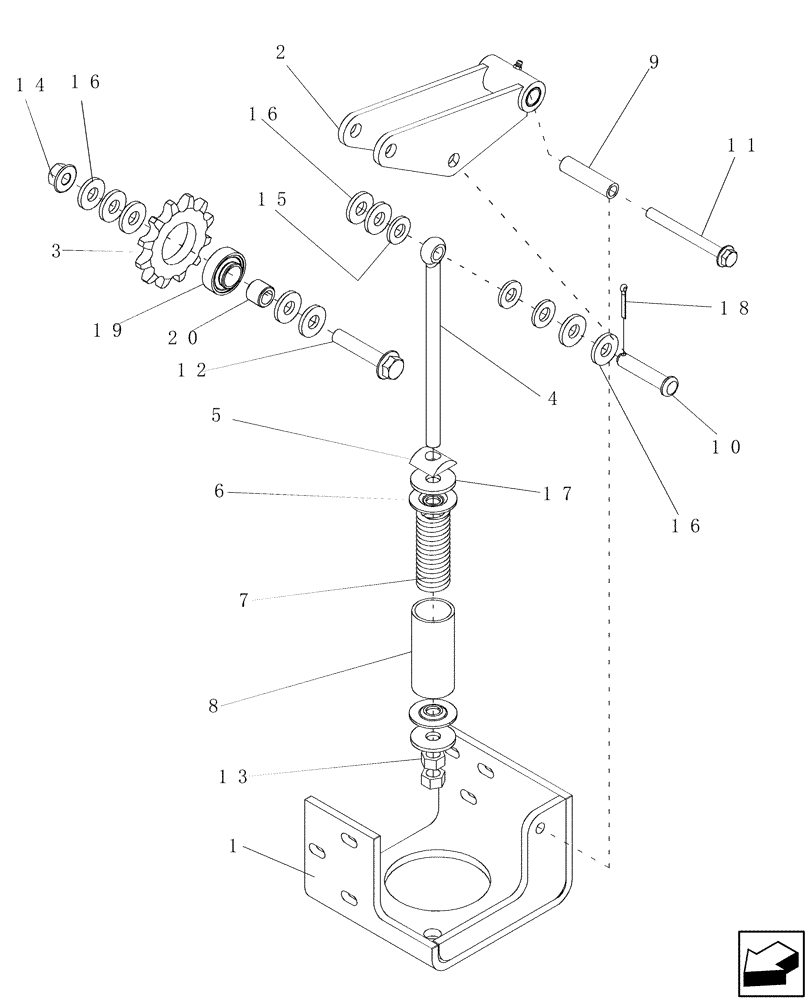

Запчасти Case IH 7130 (60.110.32) - IDLER ASSEMBLY, ROCK TRAP (60) - PRODUCT FEEDING

1

87755510

SUPPORT ASSY.

Idler Arm, Rock Trap

1шт.

2

87755503

ARM ASSY.

Idler, Rock Trap

1шт.

3

87477658

SPROCKET

12T, 16 mm Bore

1шт.

4

87578627

EYEBOLT

Idler, Rock Trap

1шт.

5

390870A1

PIVOT

Rock Trap Idler Bolt

1шт.

6

394120A1

SPRING WASHER

Feeder Idler

2шт.

7

390872A1

SPRING

1шт.

8

390869A1

SPACER,40.96mm ID x 48.3mm OD x 105mm L

Adjusting Spring Bolt

1шт.

9

87755999

BUSHING

Idler Pivot, Rock Trap

1шт.

10

439-11048

HEADED PIN,5/8" x 3"

1шт.

11

87698848

FLANGE BOLT,M12 x 120mm, Cl 10.9

1шт.

12

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

1шт.

13

100020

NUT,M16 x 2.0, Cl 8

2шт.

14

87016581

FLANGE NUT,M16 x 2, CI 10

1шт.

15

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

3шт.

16

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

9шт.

17

495-81030

WASHER,21/32" x 2" x .179"

2шт.

18

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

19

45396

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

1шт.

20

84130591

SPACER

1шт.
