(60.110.29[03]) - LATCH, PANEL, FEEDER

Запчасти Case IH 7130 (60.110.29[03]) - LATCH, PANEL, FEEDER (60) - PRODUCT FEEDING

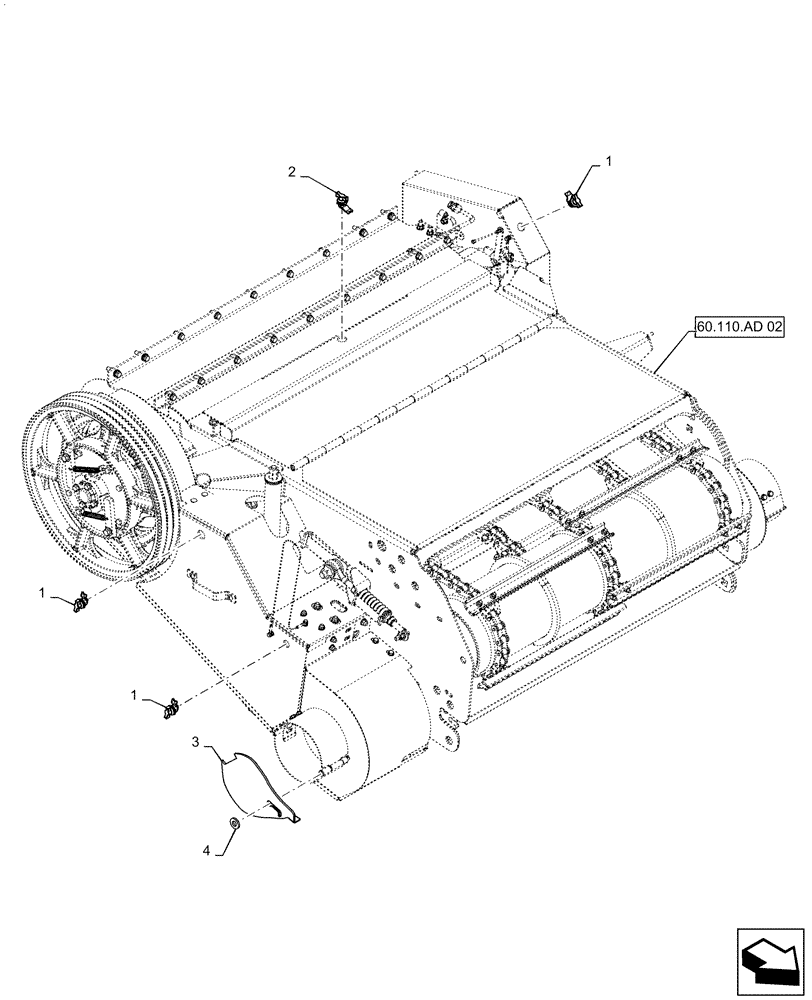

Схема запчастей Case IH 7130 - (60.110.29[03]) - LATCH, PANEL, FEEDER (60) - PRODUCT FEEDING
2
3
60.110.ad 02
1
1
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

138699A2

LOCK

Feeder Latch Shield, - VAR - 425086, 425087, 425081, 425082

3шт.

1

135476A1

LOCK

Feeder Latch, - VAR - 425088, 425083

3шт.

2

182925A1

LOCK

Feeder Latch Shield, - VAR - 425086, 425087, 425081, 425082

1шт.

2

143347A1

LATCH

Feeder, Shield, - VAR - 425088, 425083

1шт.

3

84159143

COVER ASSY

Protection, - VAR - 425088, 425083

1шт.

4

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

Выбрано товаров: 6
