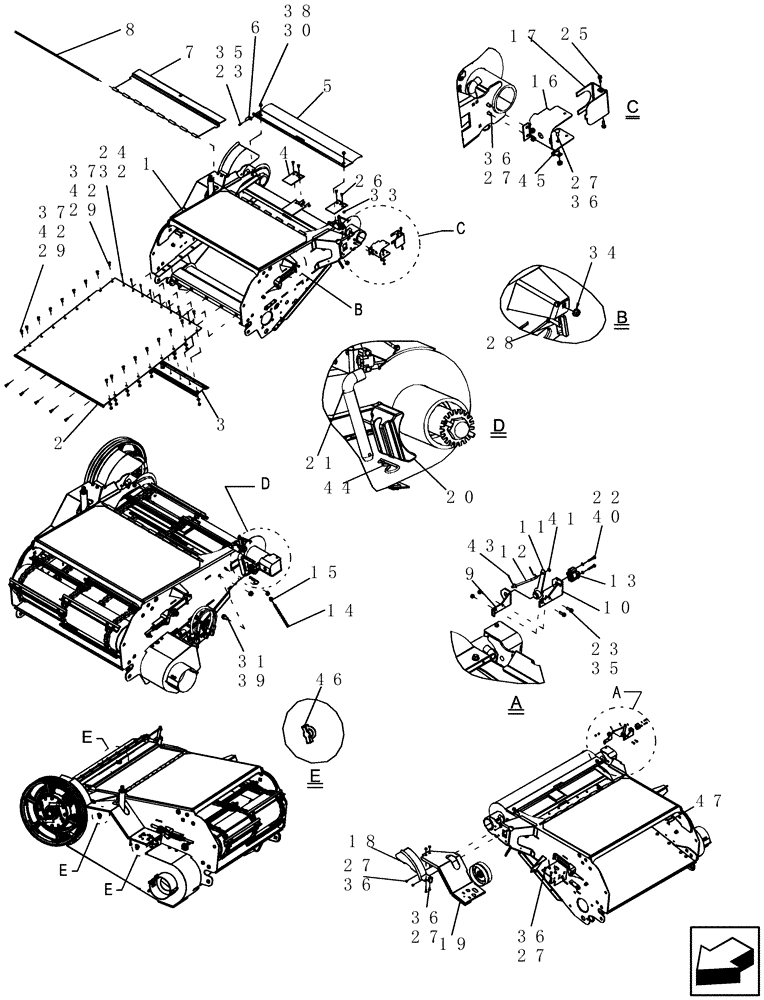

Запчасти Case IH 7130 (60.110.29[02]) - FEEDER - STANDARD (60) - PRODUCT FEEDING

1

84346464

HOUSING, GRAIN ELEVA

1.6M

1шт.

2

84346486

SHEET ASSY.

Feeder Floor

1шт.

2

84385344

SHEET

Perforated Feeder Floor

1шт.

3

84310770

SUPPORT

Feeder Rear, Order All Sub Components Below For Complete

1шт.

1319962C1

SEAL

Feeder Rear

1шт.

197526C1

SEALING STRIP

Feeder Rear

1шт.

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

10шт.

4

87748011

STRIPPER

Stripper, Feeder Pivot

3шт.

5

84261477

COVER ASSY

Feeder Top

1шт.

6

84215095

ANGLE

Feeder Door

2шт.

7

84215091

DOOR

Feeder Top

1шт.

8

87666924

ROD

Hinge

1шт.

9

87384568

SHEET

Feeder Sensor

1шт.

10

84127177

BRACKET

Feeder Sensor

1шт.

11

84538095

SHAFT

1шт.

12

87720415

CONNECTING LINK

Feeder Sensor

1шт.

13

87330286

SENSOR

Rotary Position

1шт.

14

167570C1

CHAIN,203.2mm L

Coil

2шт.

15

635503R1

SPRING,148.8mm Free Length

Pedal Return

2шт.

16

87754319

BRACKET

Feeder Speed Sensor

1шт.

17

87618166

SHIELD

Feeder Speed Sensor

1шт.

18

87712040

COVER ASSY

Feeder Drive, 60 Inch

1шт.

19

84375995

SHIELD

Feeder Drive, 60 Inch

1шт.

20

87489758

RETAINER

Feeder Pivot

2шт.

21

87497922

BOLT,Hex, M30 x 260mm, Cl 10.9

Feeder Pivot

2шт.

87499320

SPACER,31.8mm ID x 50.8mm OD x 75mm L

Used With Bolt 87497922

2шт.

22

87384106

BOLT,M4 x 42.92mm, Cl 8.8

2шт.

23

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

3шт.

24

87015849

SCREW,Phillips Drive, Flat HD, M6 x 20mm, Cl 5.8

8шт.

25

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

2шт.

26

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

6шт.

27

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

9шт.

28

NA

NOT SERVICED

Not Used

1шт.

29

87682392

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 10.9

25шт.

30

9503839

CARRIAGE BOLT,Short NK, M12 x 25, Cl8.8, Full Thd

2шт.

31

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

2шт.

32

353308

NUT,M6 x 1.0, Cl 8

8шт.

33

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

34

NA

NOT SERVICED

Not Used

1шт.

35

86050300

FLANGE NUT,M6 x 1.0, Cl 10

3шт.

36

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

37

86050279

FLANGE NUT,M10 x 1.5, Cl 10

23шт.

38

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

39

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

40

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

41

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

42

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

23шт.

43

86977785

COTTER PIN,M1.6 x 20mm

2шт.

44

87752066

NUT

Replaces Lock Pin

2шт.

45

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

1шт.

46

138699A2

LOCK

Feeder Drive Shield

2шт.

46

182925A1

LOCK

Feeder Top Cover Shield

1шт.
