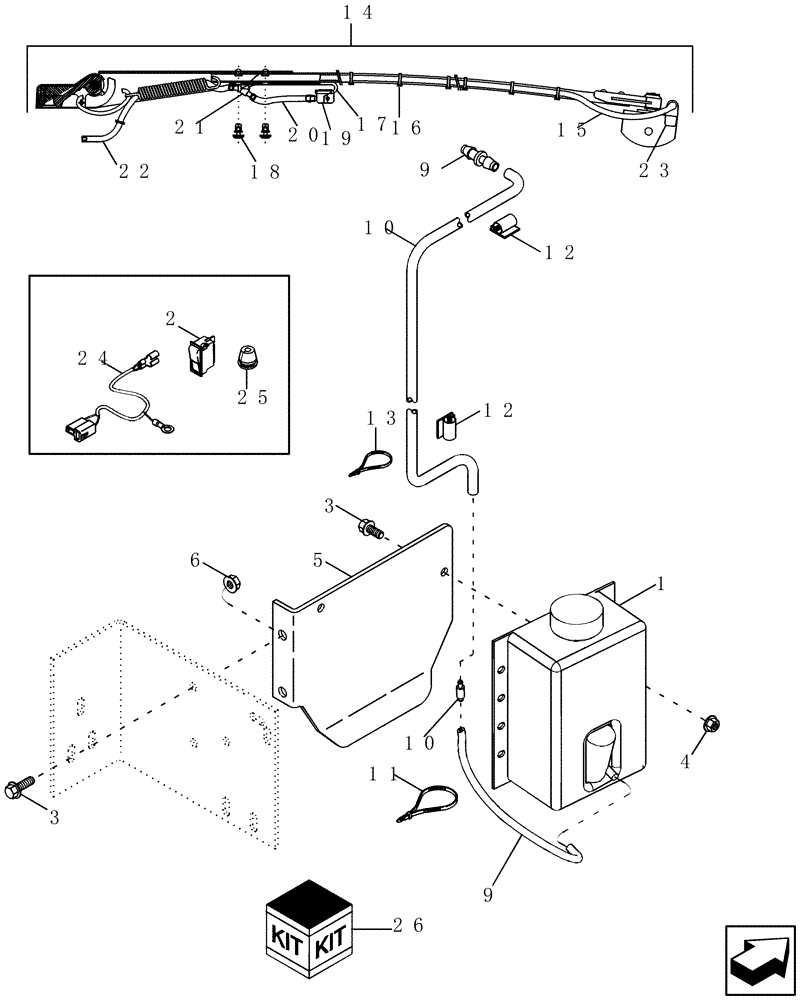

Запчасти Case IH 7130 (55.518.03) - WINDSHIELD WASHER (55) - ELECTRICAL SYSTEMS

1

87014923

RESERVOIR, WINDSHIEL

1шт.

2

87447601

WINDSHIELD WIPER SWI

W/Washer

1шт.

3

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

4

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

5

87447938

SUPPORT

Reservoir

1шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

7

31-2423

HOSE,0.19" ID x 15.00"

381 mm (15")

1шт.

8

84037530

VALVE

1шт.

9

31-2364

FITTING

3/16 x 7/64

1шт.

10

31-2582

HOSE

3962 mm (156"), Cut From 4-1056

1шт.

11

702093C1

CABLE TIE

CABLE STRAP

3шт.

12

245854A1

CLIP

4шт.

13

58556C1

CABLE TIE

CABLE STRAP 14"

2шт.

14

87281666

WINDSHIELD WASHER

Incl 15 - 23

1шт.

15

87282393

HOSE

1шт.

16

PL

PROCURE LOCALLY

Bundling Tie

8шт.

17

87282394

ARM

1шт.

18

87282395

RIVET

Snap

2шт.

19

87282396

NOZZLE CAP

Single

1шт.

20

87282397

HOSE

1шт.

21

87282398

FITTING

Y

1шт.

22

PL

PROCURE LOCALLY

Hose, 450 mm

1шт.

23

87282392

HOLDER

Nozzle, Double

1шт.

24

87447600

WIRE HARNESS

Windshield Washer

1шт.

Used with Field Installed Kit

1шт.

25

195803C1

GROMMET

1шт.

Used with Field Installed Kit

1шт.

26

87447598

KIT

DIA, Windshield Washer

1шт.
