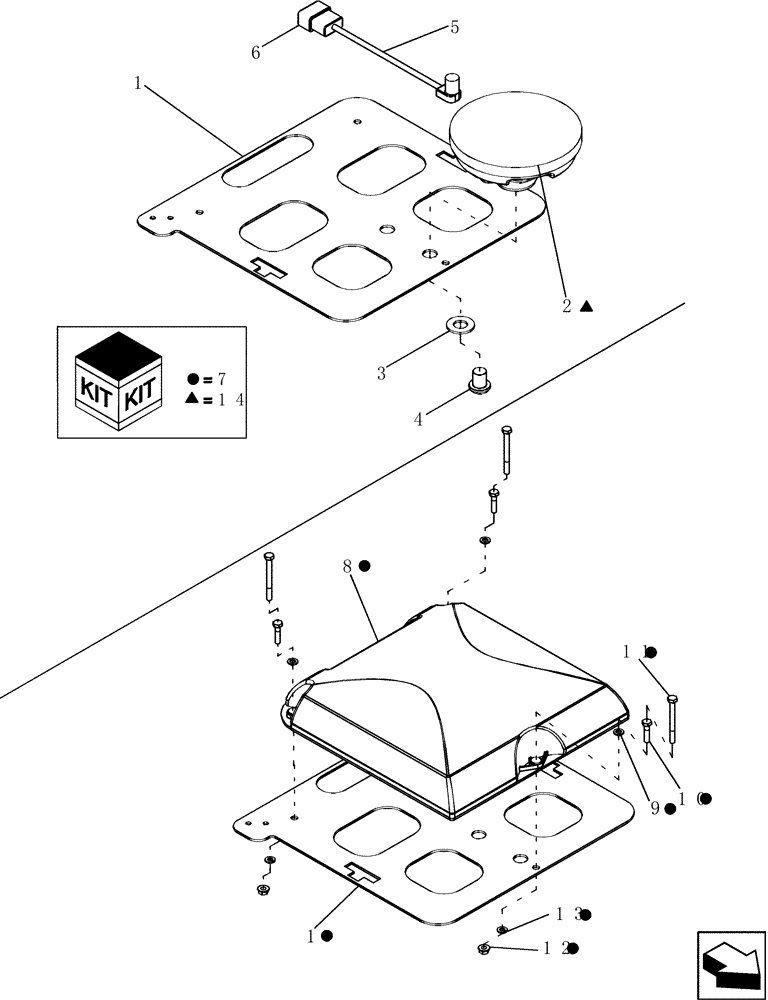

Запчасти Case IH 7130 (55.440.24) - AFS 162/262 ANTENNA/RECEIVER AND MOUNTING (55) - ELECTRICAL SYSTEMS

1

87496985

MOUNTING PLATE

AFS100 Antenna

2шт.

2

87491749

ANTENNA

WAAS/EGNOS

1шт.

2

87491749R

REMAN ELECT CONTROL

5130, 6130 GPS, 7130, All COMBINE TIER 4, WAAS/EGNOS (1/12-)

1шт.

2

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

4

87106351

HEX SOC SCREW,BTN HD, 5/8" - 11 x 3/4"

1шт.

5

87383158

WIRE HARNESS

252 To 100 Adapter, Incl 6

1шт.

6

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

Harness, 12-Pin

1шт.

7

87595761

KIT

DIA, AFS262 WAAS, EGNOS, VBS, Incl 1, 8 - 13

1шт.

7

87369143

KIT

DIA, AFS262 WAAS/OMNISTAR, Incl 1, 8-13

1шт.

7

84588269R

REMAN ELECT CONTROL

5130, 6130, 7130, All COMBINE TIER 4, DIA, AFS162/262 WAAS/OMNISTAR (1/12-), Reman for New PN 87369143

1шт.

7

84588269C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

84148119

MODULE

Receiver, AFS262 WAAS, EGNOS, VBS

1шт.

8

84574271R

REMAN ELECT CONTROL

5130, 6130, 7130, All COMBINE TIER 4, Receiver, AFS262 WAAS, EGNOS, VBS (1/12-), Reman for New PN 84148119

1шт.

8

84574271C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

84148115

MODULE

GPS Receiver, AFS262 WAAS/VBS/HP/XP with Software

1шт.

8

84574273R

REMAN ELECT CONTROL

5130, 6130, 7130, All COMBINE TIER 4, AFS262 WAAS/OMNISTAR - WAAS/VBS/HP/XP, Receiver Only (1/12-), Reman for New 84148115

1шт.

8

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

10

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

11

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

12

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

13

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

14

84150838

ANTENNA

AFS162, Incl 2, W/Software

1шт.
