Запчасти Case IH 7130 (55.440.20) - HARDWARE, CHASSIS HARNESSES (55) - ELECTRICAL SYSTEMS

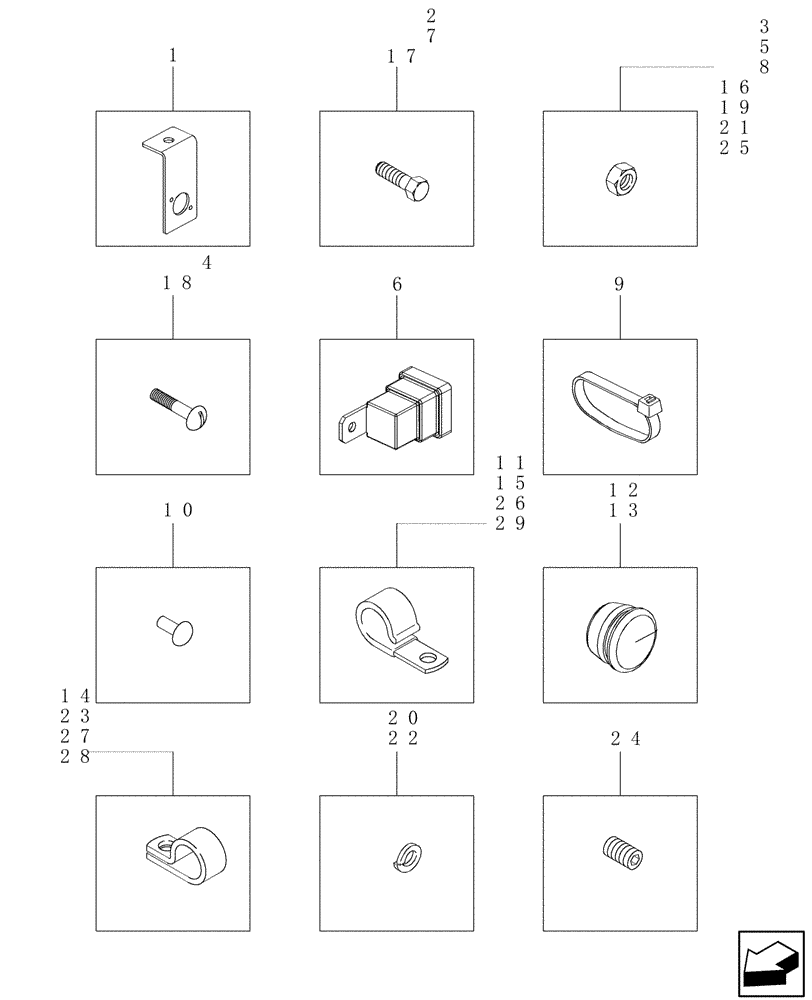

Схема запчастей Case IH 7130 - (55.440.20) - HARDWARE, CHASSIS HARNESSES (55) - ELECTRICAL SYSTEMS
23
25
13
24
5
3
3
2
29
7
4
11
7
19
4
1
8
16
21
22
8
5
12
20
6
18
28
27
14
10
17
9
15
2
26

Артикул

Название

Примечание

Количество

1

87752142

BRACKET

Use To Mount Service Light Connector On Right Hand Side

1шт.

2

87698834

BOLT,M8 x 48.1mm, Cl 10.9

Use To Mount Bracket Ref 1

1шт.

3

86507066

FLANGE NUT,M8 x 1.25, Cl 10

Use To Mount Bracket Ref 1

1шт.

4

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

Use To Mount Service Light And Grain Tank Bulkhead Connectors

8шт.

5

100012

NUT,M4 x 0.7, Cl 8

Use To Mount Service Light And Grain Tank Bulkhead Connectors

8шт.

6

86508603

RELAY,12V

Sealed Skirt with Bracket

2шт.

7

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

86566989

CABLE TIE,208mm L

CABLE STRAP

60шт.

10

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

60шт.

11

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

75шт.

12

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3шт.

13

87107420

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

3шт.

14

370383R1

CLIP

2шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

Use To Secure Front Harness To Left Hand Side Post

1шт.

16

231-5146

FLANGE NUT,3/8"-16

Use To Secure Front Harness To Left Hand Side Post

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

Use To Secure Front Harness To Left Hand Side Post

1шт.

18

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

2шт.

19

425-105

NUT,5/16"-18, G5

2шт.

20

492-11031

LOCK WASHER,5/16"

2шт.

21

225-14210

NUT,#10-32

1шт.

22

492-11010

LOCK WASHER,#10

1шт.

23

197991A1

CLIP,ELECTRICAL

Grain Tank Switch Wire

2шт.

24

878-30840

SET SCREW,M8 x 40mm

Install Into Grounding Bushings

2шт.

25

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Use To Secure Ground Wires To Chassis

4шт.

26

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Use To Secure Wires To Fuel Pump

2шт.

27

87694057

CABLE TIE,200mm L

Use To Secure Right Hand Harness Wires In Rear

2шт.

28

362666R1

CLIP

Use On Right Hand Rear Rotor Panel Area

2шт.

29

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

4шт.

Выбрано товаров: 29
