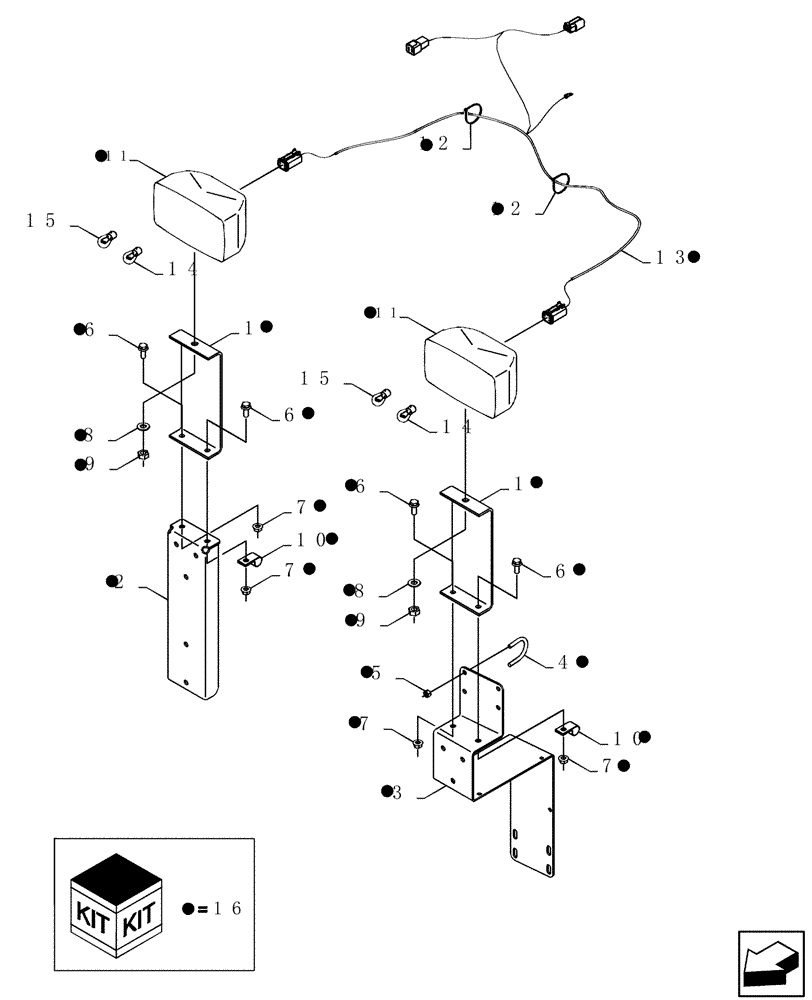

Запчасти Case IH 7130 (55.404.47) - KIT, ROAD LIGHTING, FOLDING CORN HEAD - 7130 (55) - ELECTRICAL SYSTEMS

1

87524401

PLATE

Light Support

2шт.

2

87564056

BRACKET

Right Hand Signal Plate

1шт.

3

87567408

BRACKET

Upper Left Hand Light

1шт.

4

188528A1

U-BOLT,1/4" - 20 x 34.80mm W x 44mm L, Gr 5

BOLT "U"

4шт.

5

230-4214

LOCK NUT,1/4"-20, GA

8шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

9

100016

NUT,M10 x 1.5, Cl 8

2шт.

10

9837692

CLAMP,16.67mm ID, 13.46mm Bolt Hole, P Type

2шт.

11

86613046

LAMP

Incl 14, 15

2шт.

12

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

20шт.

13

84457539

HARNESS

Lighting

1шт.

14

353078

BULB,T8/4, 12V, 4W

1шт.

15

446592

BULB,Halogen, 12V, 60/55W

1шт.

16

87584550

DIA KIT, HARVESTER

Road Lighting, Folding Corn Head, Incl 1 - 13

1шт.
