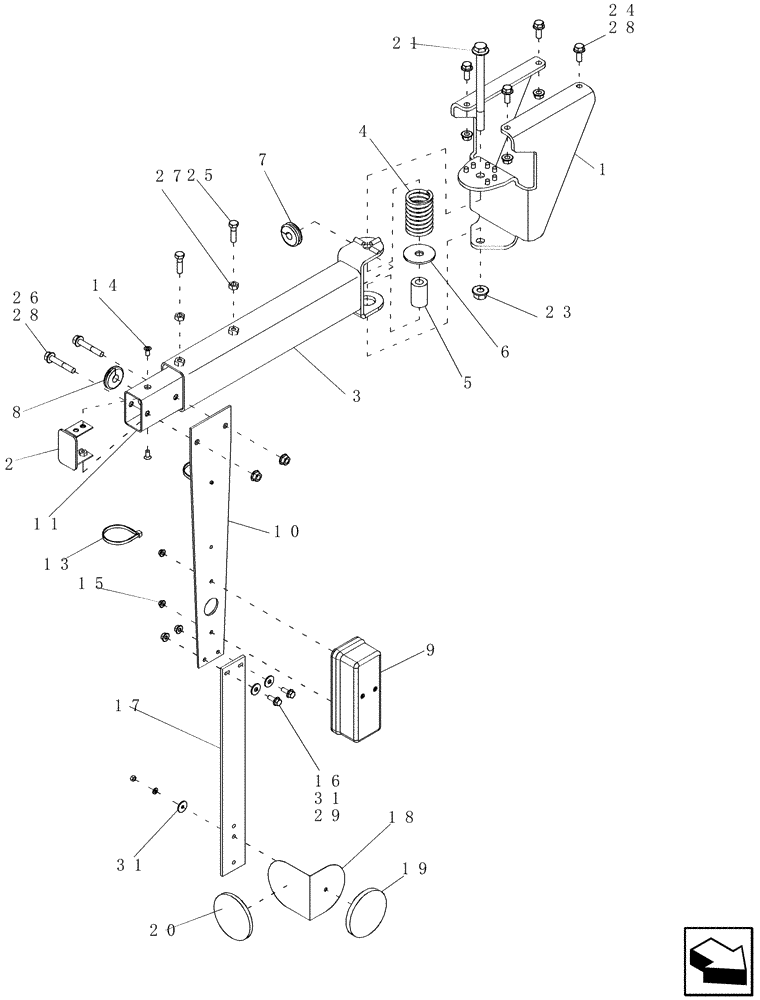

Запчасти Case IH 7130 (55.404.10) - LIGHTS, REAR, (EU ONLY) (55) - ELECTRICAL SYSTEMS

1

87638940

BRACKET

Rear Left Hand Warning Arm

2шт.

2

87284717

BRACKET

2шт.

3

87284265

ARM

Supporting

2шт.

4

87283260

SPRING

2шт.

5

87283257

SPACER

2шт.

6

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

7

87015294

GROMMET,1/2" ID x 1-1/2" OD x 0.438" Thk

2шт.

8

87015293

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

2шт.

9

87691270

WORK LAMP

Stop/Tail/Turn

2шт.

10

87001252

MOUNTING PLATE

2шт.

11

87001250

EXTENSION

2шт.

13

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

4шт.

14

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

4шт.

15

86507064

FLANGE NUT,M5 x 0.8

4шт.

16

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

4шт.

17

84442354

SUPPORT

Arm

2шт.

18

84158104

BRACKET

2шт.

19

470023

REFLECTOR

Red

2шт.

20

435895

REFLECTOR,80mm OD, Orange

Amber

2шт.

21

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

2шт.

23

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

2шт.

24

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

8шт.

25

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

26

87698763

FLANGE BOLT,Hex, M8 x 50mm, Cl 0.9

4шт.

27

9706690

NUT,M8 x 1.25, Cl 8

4шт.

28

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

29

43440

LOCK NUT,M5 x .8, Cl 8

4шт.

31

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

6шт.
