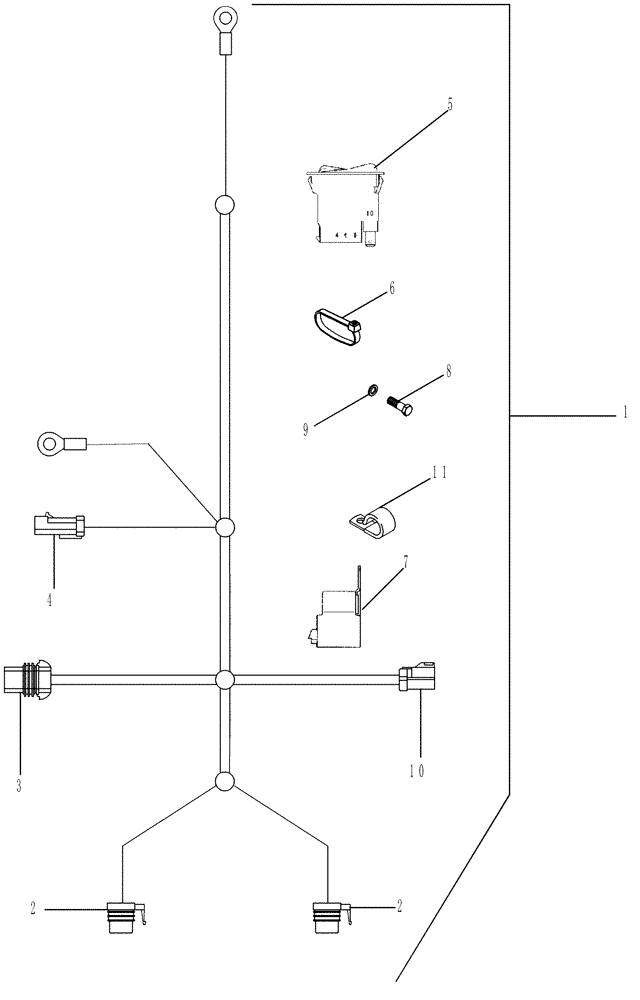

Запчасти Case IH 7130 (55.100.68) - HARNESS, GRAIN TANK COVER (55) - ELECTRICAL SYSTEMS

1

84368991

WIRE HARNESS

Grain Tank Covers R.H, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR, C324 and C325, Relay A and B

2шт.

3

182069A1

CONNECTOR, ELEC

CONNECTOR C302, Covers Motor

1шт.

4

NSS

NOT SOLD SEPARAT

CONNECTOR, C195

1шт.

5

87641192

SWITCH ASSY

Grain Tank Covers

1шт.

6

86566989

CABLE TIE,208mm L

CABLE STRAP

24шт.

7

86508603

RELAY,12V

Sealed, wth Bracket

2шт.

8

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

9

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

10

NSS

NOT SOLD SEPARAT

Connector, C393, Cover Open Sensor

1шт.

11

87694057

CABLE TIE,200mm L

2шт.
