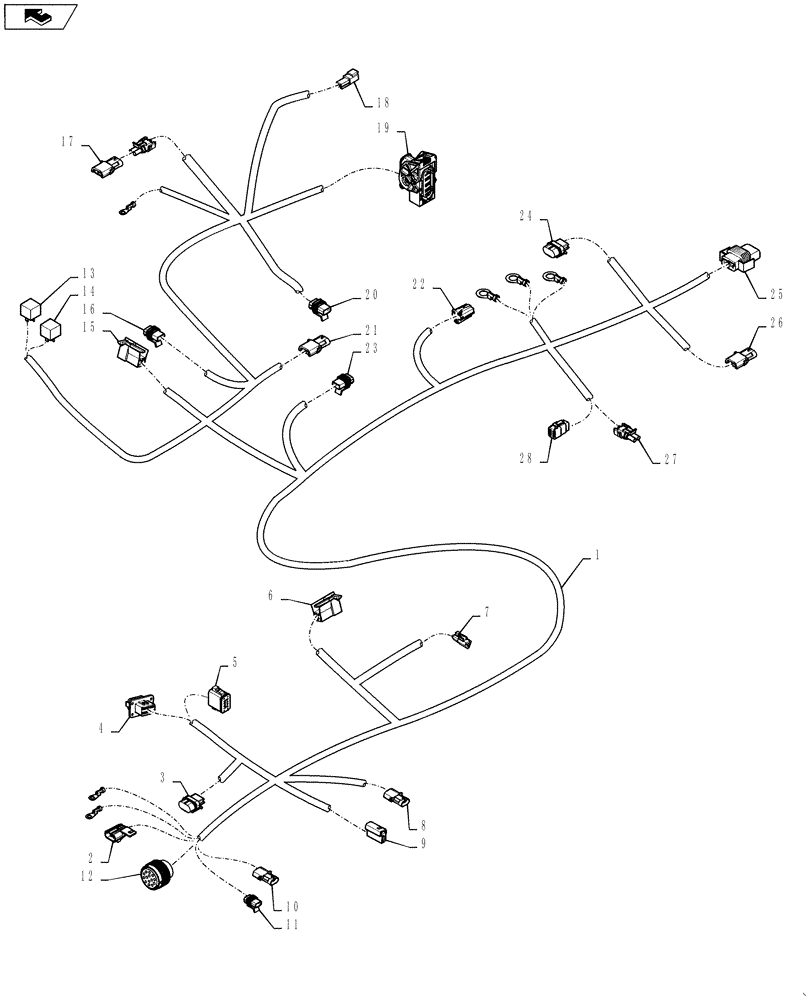

Запчасти Case IH 7130 (55.100.61) - HARNESS, CHASSIS, RH SIDE (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
84499589
WIRE HARNESS
RH Side
1шт.
2
NSS
NOT SOLD SEPARAT
Cab Connector, 34 Cavity, X023
1шт.
3
NSS
NOT SOLD SEPARAT
Auto Guidance, 10 Cavity, X192
1шт.
4
NSS
NOT SOLD SEPARAT
Can Connector, 12 Cavity, X173
1шт.
5
NSS
NOT SOLD SEPARAT
To Grain Tank Harness, 12 Cavity, X174
1шт.
6
199438A1
CONNECTOR, ELEC
CONNECTOR Fan Speed Motor, 2 Cavity, X176
1шт.
7
NSS
NOT SOLD SEPARAT
Plug In Service Light, 3 Cavity, X177
1шт.
8
NSS
NOT SOLD SEPARAT
To Front Lower Harness, 14 Cavity, X219
1шт.
9
877291R1
ELEC CONNECTOR,Female
Washer Pump, 2 Cavity, X196
1шт.
10
NSS
NOT SOLD SEPARAT
Auto Guidance Controller, If Equipped, "C", 4 Cavity, X172
1шт.
11
NSS
NOT SOLD SEPARAT
Auto Guidance Controller, If Equipped, "A", 4 Cavity, X171
1шт.
12
NSS
NOT SOLD SEPARAT
Cab Connector, 50 Cavity, X024
1шт.
13
NSS
NOT SOLD SEPARAT
Relay A, 5 Cavity, X334
1шт.
14
NSS
NOT SOLD SEPARAT
Relay B, 5 Cavity, X335
1шт.
15
199438A1
CONNECTOR, ELEC
CONNECTOR Rotor Speed Motor, 2 Cavity, X178
1шт.
16
NSS
NOT SOLD SEPARAT
Grain Tank Covers, 4 Cavity, X195
1шт.
17
245486C1
ELEC CONNECTOR,4 Pin
Lincoln Lube, 4 Cavity, X183
1шт.
18
NSS
NOT SOLD SEPARAT
Plug In Service Light, 3 Cavity, X194
1шт.
19
NSS
NOT SOLD SEPARAT
Engine Harness, X182
1шт.
20
NSS
NOT SOLD SEPARAT
Fuse, 2 Cavity, X333
1шт.
21
NSS
NOT SOLD SEPARAT
To LH Harness, 10 Cavity, X179
1шт.
22
245716C1
ELEC CONNECTOR,Male, 4 Pin
Rotor limit Switch Harness, 4 Cavity, X189
1шт.
23
NSS
NOT SOLD SEPARAT
Under Panel Lights, 2 Cavity, X193
1шт.
24
NSS
NOT SOLD SEPARAT
Rear Stop/Tail Lights, 6 Cavity, X188
1шт.
25
237661A1
ELEC CONNECTOR,Female, 2 Pin
RH Rear Work Light, 2 Cavity, X190
1шт.
26
NSS
NOT SOLD SEPARAT
Spread Pattern Control (Optional), 6 Cavity, X191
1шт.
27
245484C1
ELEC CONNECTOR,3 Pin
Tailings Volume Sensor, 3 Cavity, X187
1шт.
28
277904A1
ELEC CONNECTOR,Female, 4 Pin
4 Cavity, X161
1шт.
Выбрано товаров: 28
