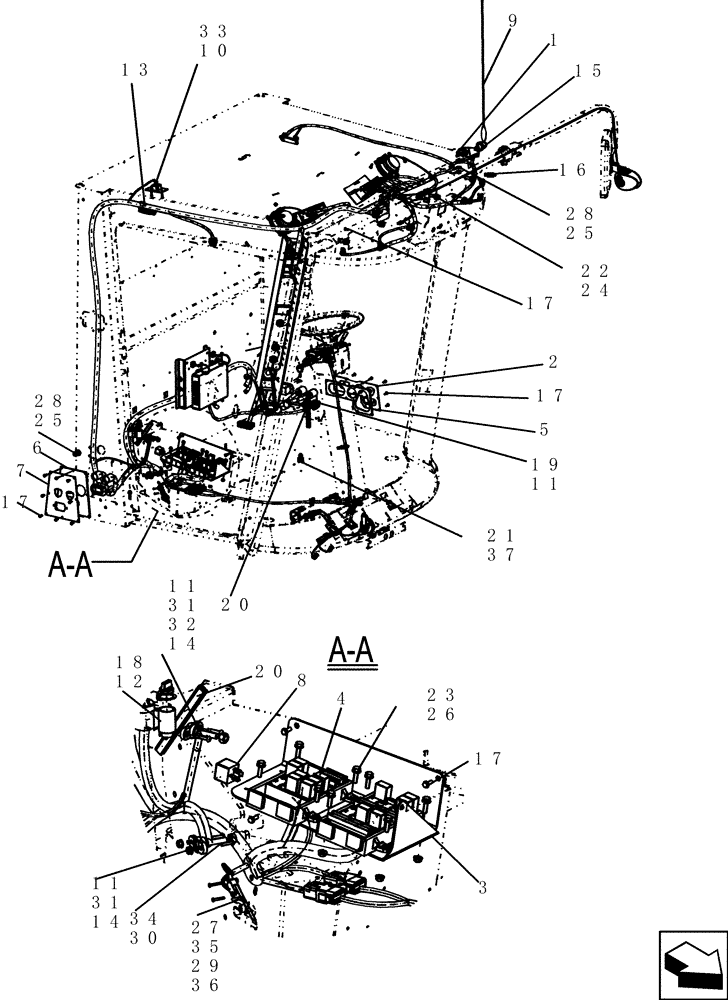

Запчасти Case IH 7130 (55.100.57) - CAB WIRING (55) - ELECTRICAL SYSTEMS

1

R54547

GROMMET

Antenna

1шт.

2

87603488

PANEL

Electrical Access, Left Hand

1шт.

3

87594437

BRACKET

Fuse/Relay

1шт.

4

87414866

RELAY,12V, 20A

Micro

14шт.

5

87389127

GASKET,5mm Thk

Electrical Access Plate, Left Hand

1шт.

6

87388344

GASKET

Electrical Access Plate, Right Hand

1шт.

7

87387874

PLATE

Electrical Access, Right Hand

1шт.

8

87522476

RELAY

70 amp Power

1шт.

9

97080C1

ANTENNA

1шт.

10

83882C91

LAMP

Cab Interior

1шт.

11

83822C1

TAPE

3шт.

12

432212A1

CIGAR LIGHTER

Power Outlet

2шт.

13

429726A1

COURTESY LIGHT

DOME LIGHT

2шт.

14

303717A1

JUNCTION BLOCK

2шт.

15

278032A1

GROUND STRAP

Antenna

1шт.

16

1983341C1

SWITCH

Door Jamb

1шт.

17

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

24шт.

18

190812A1

COVER

Cigarette Lighter

2шт.

19

190158A1

BLOCK

Junction

1шт.

20

1327979C1

MOLDING

2шт.

21

878-30840

SET SCREW,M8 x 40mm

2шт.

22

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

23

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

25

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

27

495-31012

WASHER,#4

2шт.

28

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

3шт.

29

463-10412

SCREW,Hex Hd, #4-40 x 3/4"

2шт.

30

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

2шт.

33

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

34

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

35

225-14104

NUT,#4-40

2шт.

36

60-6515T1

SWITCH

Micro

1шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
