Запчасти Case IH 7130 (55.100.09) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS

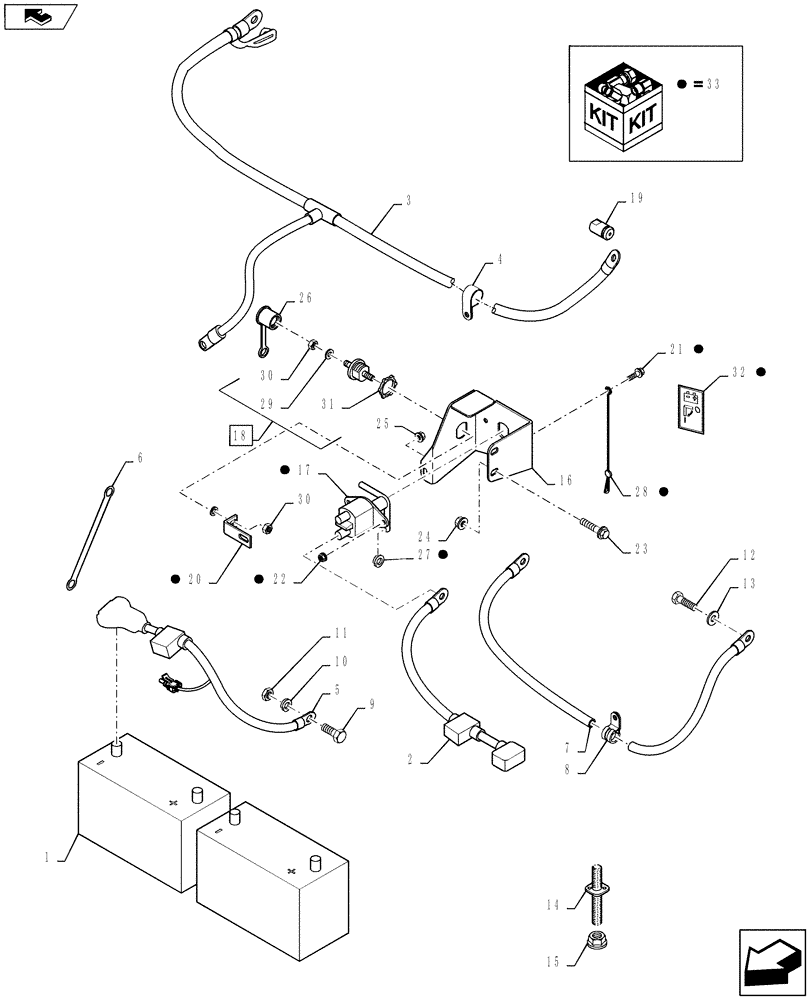

Схема запчастей Case IH 7130 - (55.100.09) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS
10
30
33
31
22
33
8
14
11
32
6
1
16
17
24
33
3
30
7
26
33
21
2
19
33
9
5
33
29
4
20
27
23
18
home
28
12
33
15
33
33
13
25

Артикул

Название

Примечание

Количество

1

86993119

WET BATTERY

BATTERY DRY Dry, 12V

2шт.

2

87726635

CABLE

Battery, Positive

1шт.

3

87726637

CABLE

Battery, Positive

1шт.

4

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

5

87398398

NEG BATTERY CABLE

1шт.

6

278033A2

GROUND STRAP

, Serial Range: Cab-Chassis

1шт.

7

128742A2

NEG BATTERY CABLE

Engine

1шт.

84423057

NEG BATTERY CABLE

Chassis Negative, Not Shown, Total Length 3230 MM w/ 2 Battery Connections, 5130 Only

1шт.

8

291207C1

CLAMP

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

128289A1

BOLT,5/16" - 18 x 2 3/16"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

16

87721282

BRACKET

Battery, Disconnect

1шт.

17

84004375

BATTERY CUT-OUT

Battery, Disconnect

1шт.

18

190158A1

BLOCK

Junction, Incl 29 - 31

1шт.

19

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

Jump Start

1шт.

20

87538385

BAR

Jump, Serial Range: Start-Disconnect

1шт.

21

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

22

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

2шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

24

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

25

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

26

87539000

CAP

Battery Stud

1шт.

27

87026295

LOCK WASHER,M20 x 24.6mm OD x 2.8mm Thk

1шт.

28

409114A1

CABLE

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER

2шт.

30

NSS

NOT SOLD SEPARAT

NUT

2шт.

31

NSS

NOT SOLD SEPARAT

NUT

1шт.

32

86993121

LABEL

Battery Switch

1шт.

33

84142796

DIA KIT, HARVESTER

Battery Disconnect, Incl 17, 20 - 22, 27, 28, 32 (NA & ANZ ONLY)

1шт.
