Запчасти Case IH 7130 (50.200.12) - AIR CONDITIONING- COMPRESSOR MOUNTING AND DRIVE-61/7130 CURSOR 9 T2/T4 (50) - CAB CLIMATE CONTROL

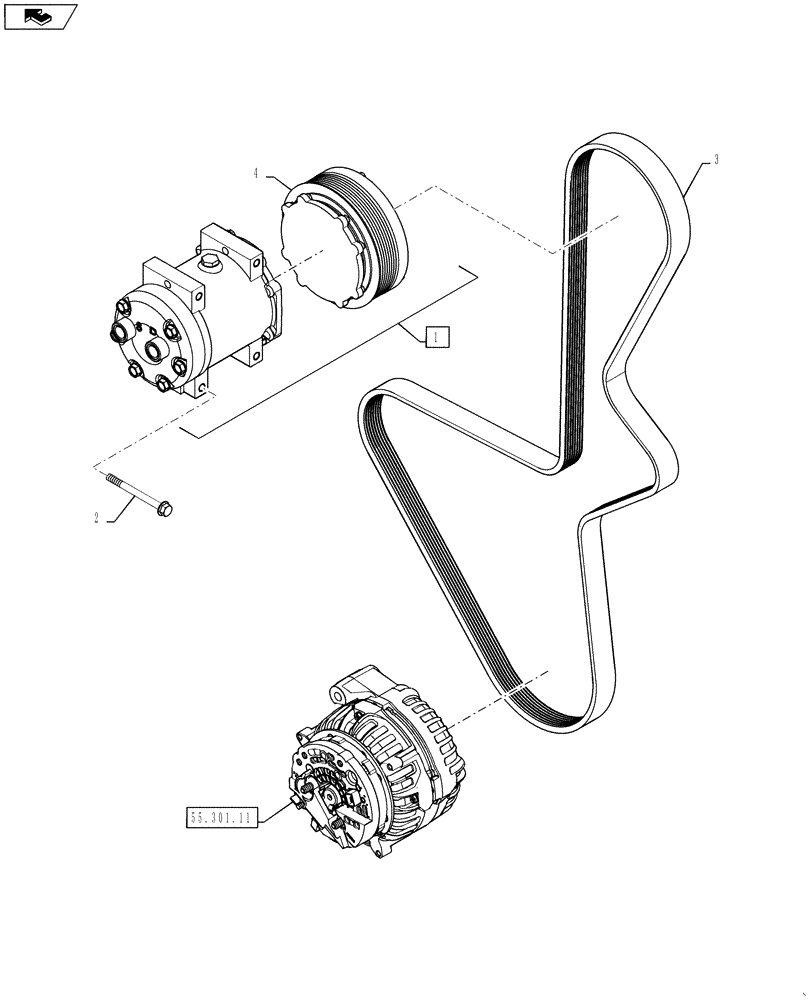

Схема запчастей Case IH 7130 - (50.200.12) - AIR CONDITIONING- COMPRESSOR MOUNTING AND DRIVE-61/7130 CURSOR 9 T2/T4 (50) - CAB CLIMATE CONTROL
1
3
4
55.301.11
2
home

Артикул

Название

Примечание

Количество

1

86993463

AIRCOND. COMPRESSOR

12V, uses A Poly V Belt

1шт.

1

86993463GV

AIRCOND. COMPRESSOR

Value, 12V, Uses a Poly V Belt

1шт.

1

86993463R

REMAN-A/C COMPRESSOR

Reman for New PN 86993463

1шт.

1

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

4шт.

3

84292913

BELT,2203.00 mm L

1шт.

4

403585A1

CLUTCH

Used With Ref 1

1шт.

Выбрано товаров: 7
