Запчасти Case IH 7130 (44.200.20) - MOTOR, HYDRAULIC, 1260 CC, REAR POWER GUIDE AXLE - 7088 (44) - WHEELS

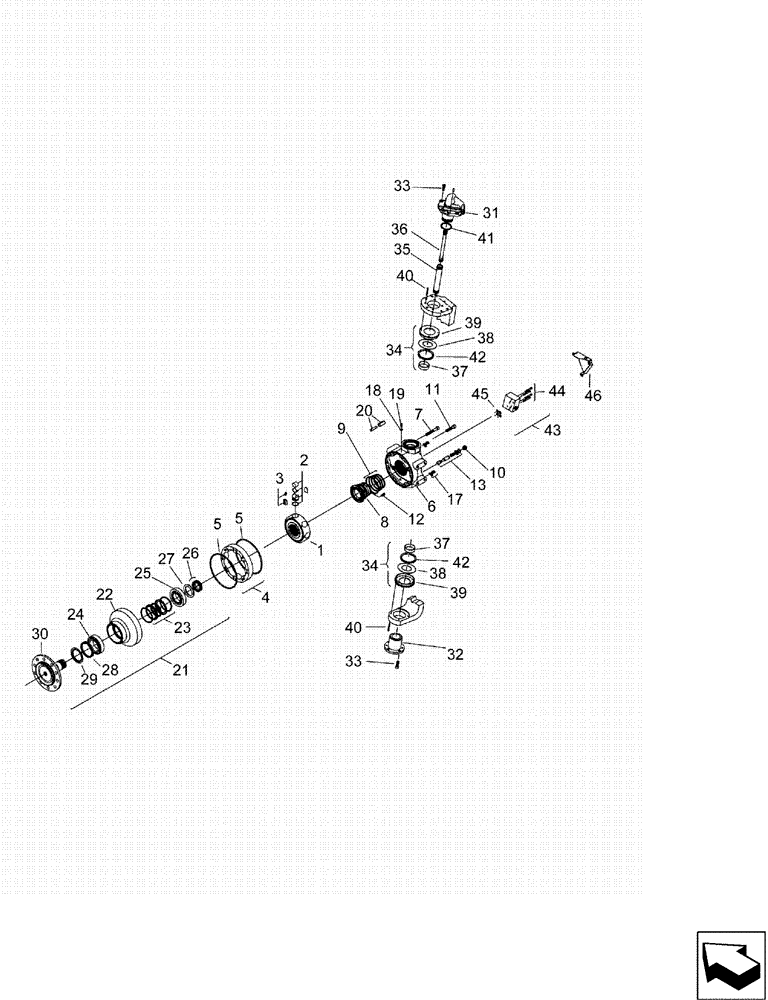

Схема запчастей Case IH 7130 - (44.200.20) - MOTOR, HYDRAULIC, 1260 CC, REAR POWER GUIDE AXLE - 7088 (44) - WHEELS
3
8
45
7
5
40
1
19
10
39
21
23
5
26
9
37
33
46
42
37
22
33
30
40
18
24
44
20
43
2
27
32
25
28
13
36
41
29
12
31
17
6
34
34
4
38
39
38
11
42
35

Артикул

Название

Примечание

Количество

87648796

MOTOR, HYDRAULIC

LH Complete, Single Speed

1шт.

84280361

HYDRAULIC MOTOR,1259CC

LH Complete, 2 Speed

1шт.

87726688

MOTOR, HYDRAULIC

RH Complete, Single Speed

1шт.

87726688R

REMAN-HYD MOTOR

5130, 6130, 7130 all COMBINE TIER 4 (1/12-)

1шт.

87726688C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

84280362

HYDRAULIC MOTOR,1259CC

RH Complete, 2 Speed

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER BLOCK ASSEMBLY

1шт.

2

NSS

NOT SOLD SEPARAT

KIT, Piston

8шт.

3

NSS

NOT SOLD SEPARAT

KIT, Piston Retainer

1шт.

4

NSS

NOT SOLD SEPARAT

CAM RING, Incl 5

1шт.

5

87484762

O-RING

Cam Ring

2шт.

6

NSS

NOT SOLD SEPARAT

COVER, Distributor

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Socket Head Cap

6шт.

8

NSS

NOT SOLD SEPARAT

VALVE, Distributor

1шт.

9

87484763

SEAL KIT

Distributor Seal

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG, Hex Socket

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW, Socket Head Cap

4шт.

12

NSS

NOT SOLD SEPARAT

SPRING

9шт.

13

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER (Not Shown)

1шт.

15

NSS

NOT SOLD SEPARAT

RING, Snap (Not Shown)

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING (Not Shown)

1шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

ZERK, Grease

2шт.

18

NSS

NOT SOLD SEPARAT

WASHER, Bleed Screw

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW, Socket Head Cap

1шт.

20

NSS

NOT SOLD SEPARAT

PIN, Safety

2шт.

21

NSS

NOT SOLD SEPARAT

BEARING SUPPORT ASSEMBLY, Incl 22 - 30

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING SUPPORT

1шт.

23

87485684

SEAL

Inner Shaft

1шт.

24

87485685

BEARING

Outer

1шт.

25

87485686

BEARING

Inner

1шт.

26

NSS

NOT SOLD SEPARAT

RING, Split

1шт.

27

NSS

NOT SOLD SEPARAT

SHIM

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL, Grease

1шт.

29

NSS

NOT SOLD SEPARAT

DEFLECTOR

1шт.

30

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

31

432698A1

GUIDE

PIN, Top

1шт.

32

84800194

PIN,3.15" OD x 3.07" L

PIN, Bottom

1шт.

33

86508097

HEX SOC SCREW,M10 x 25mm, Cl 12.9, Full Thd

SCREW, Socket Head Cap

9шт.

34

NSS

NOT SOLD SEPARAT

KIT, Pivot Seal, Incl 37 - 39, 42

2шт.

35

84800212

TUBE,1.77" OD x 5.24" L

PIPE, Outer, With Seals

1шт.

36

84800213

TUBE,1.25" DIA x 7.05" L

PIPE, Inner, With Seals

1шт.

37

84817916

BUSHING,80.01mm ID x 89.15mm OD x 20.07mm L

BUSHING

2шт.

38

84817900

THRUST WASHER,3.23" ID x .08" Thk

WASHER, Thrust

2шт.

39

84817924

DUST CAP,137.92mm OD x 22.1mm W

SEAL COVER, Protector

2шт.

40

9515561

HEX SOC SCREW,M6 x 35mm, Cl 12.9

SCREW, Socket Head Cap

8шт.

41

84817917

SEAL,66.04mm ID x 76.71mm OD x 5.33mm Thk

SEALRING Top Pin

1шт.

42

84817926

SEAL,109.22mm ID x 127mm OD x 9.14mm Thk

SEALRING

2шт.

43

87281713

CONTROL VALVE

VALVE ASSEMBLY, Pilot, 1 Speed

1шт.

43

87283383

VALVE

Valve Assy, Pilot, 2 Speed

1шт.

44

NSS

NOT SOLD SEPARAT

SCREW, Socket Head Cap

4шт.

45

NSS

NOT SOLD SEPARAT

O-RING

4шт.

46

NSS

NOT SOLD SEPARAT

COVER, Pilot Valve

1шт.

47

87360505

SEAL KIT

Incl 5, 9, 41 (Includes 7 Additional NSS seals for motor)

1шт.

48

87552816

BEARING ASSY

Front Side Motor, Incl 23 - 25

1шт.

87552816R

REMAN-WHEEL END ASSY

5130, 6130, 7130 ALL TIER 4 (1/12-)

1шт.

87552816C

CORE-WHEEL END ASSY

Return Number

1шт.

Выбрано товаров: 57
