Запчасти Case IH 7130 (44.200.18[01]) - EXTENSION, STEERING KNUCKLE AND HUB, REAR AXLE, NON - POWER GUIDE AXLE (44) - WHEELS

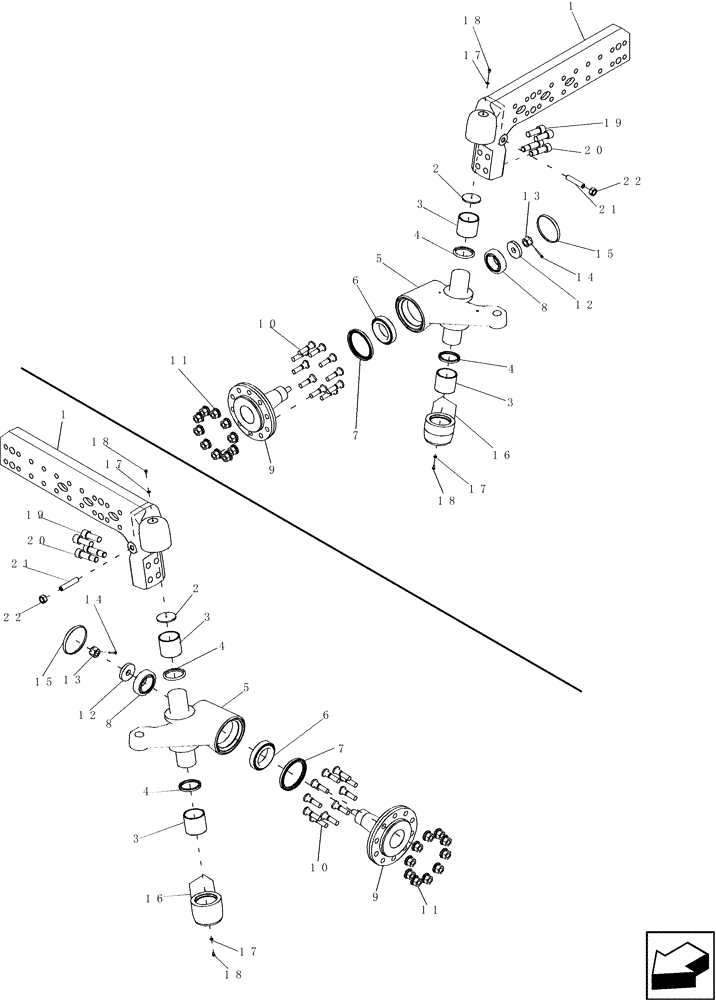

Схема запчастей Case IH 7130 - (44.200.18[01]) - EXTENSION, STEERING KNUCKLE AND HUB, REAR AXLE, NON - POWER GUIDE AXLE (44) - WHEELS
17
21
10
14
8
5
3
4
10
18
4
15
11
15
6
22
7
19
4
3
6
14
18
1
3
16
21
11
3
4
2
5
13
12
13
17
20
17
19
18
18
1
20
16
9
7
2
9
17
12
8
22

Артикул

Название

Примечание

Количество

1

87702086

EXTENSION

Rear Axle, Right Hand

1шт.

1

87702084

EXTENSION

Rear Axle, Left Hand

1шт.

2

84074068

DISC,5mm ID x 82mm OD x 5mm Thk

1шт.

3

84064163

BUSHING,80mm ID x 90mm OD x 80mm L

2шт.

4

84069731

SEALING RING,80mm ID x 94mm OD x 9mm Thk

2шт.

5

87660281

KNUCKLE JOINT

Steering, Right Hand

1шт.

5

87660278

KNUCKLE JOINT

Steering, Left Hand

1шт.

6

84068654

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

1шт.

7

84454949

SEALING RING,125mm ID x 150mm OD x 12mm Thk

1шт.

8

84068653

TAPERED BEARING,65mm ID x 110mm OD x 34mm W

1шт.

9

84448564

FLANGE

1шт.

10

84443588

WHEEL BOLT,M20 x 76mm, Cl 10.9

10шт.

11

84062511

WHEEL NUT,M20

10шт.

12

84064952

WASHER,25mm ID x 80mm OD x 12mm Thk

1шт.

13

309090

SLOTTED NUT,M24 x 1.5, Cl 8

1шт.

14

130011

COTTER PIN,M5 x 40

1шт.

15

84429450

COVER

1шт.

16

84446949

SUPPORT

Right Hand

1шт.

16

84446948

SUPPORT

Left Hand

1шт.

17

446307

SEALING RING,6.3mm ID x 13mm OD x 1.5mm Thk

SEALRING

2шт.

18

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

19

84069505

BOLT,Hex Skt, Shldr, M24 x 2 x 70mm, Cl 8.8

2шт.

20

87618988

HEX SOC SCREW,M24 x 2 x 90mm, Cl 8.8

2шт.

21

87035487

SET SCREW,M20 x 100mm, Cl 8.8

1шт.

22

9847024

NUT,M20, Cl 10

1шт.

Выбрано товаров: 25
