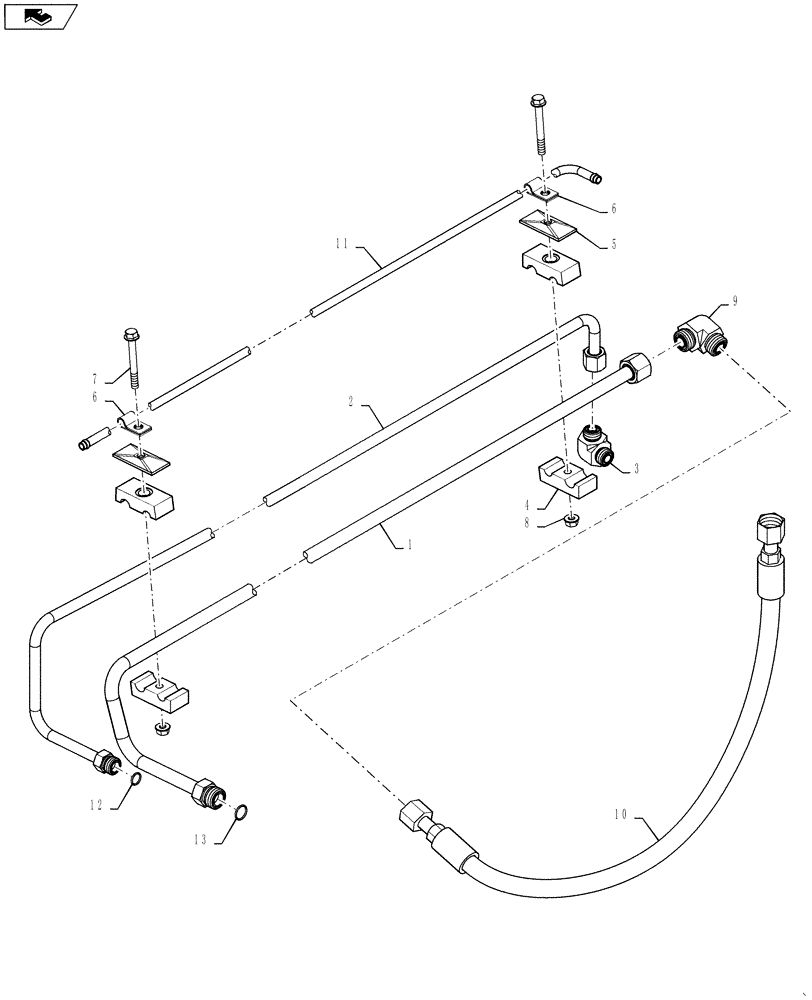

Запчасти Case IH 7130 (35.752.08) - HYDRAULICS- AIR SCREEN (35) - HYDRAULIC SYSTEMS

1

84347782

HYD TUBE

Air Screen Return

1шт.

2

84347781

HYD TUBE

Air Screen Supply

1шт.

3

201-334

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

4

109619A1

CLAMP

2шт.

5

87000230

PLATE

2шт.

6

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

7

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

9

201-340

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

10

84428411

HYDRAULIC HOSE,12.7mm ID x 870mm L, SAE 30R2

Vacuum Motor Return

1шт.

11

84428409

HYD TUBE

Vacuum Motor Case Drain

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
