Запчасти Case IH 7130 (35.310.42[01]) - HYDRAULIC PLUMBING, TUBE BUNDLE, FILTER & VALVE ATTACHMENT (35) - HYDRAULIC SYSTEMS

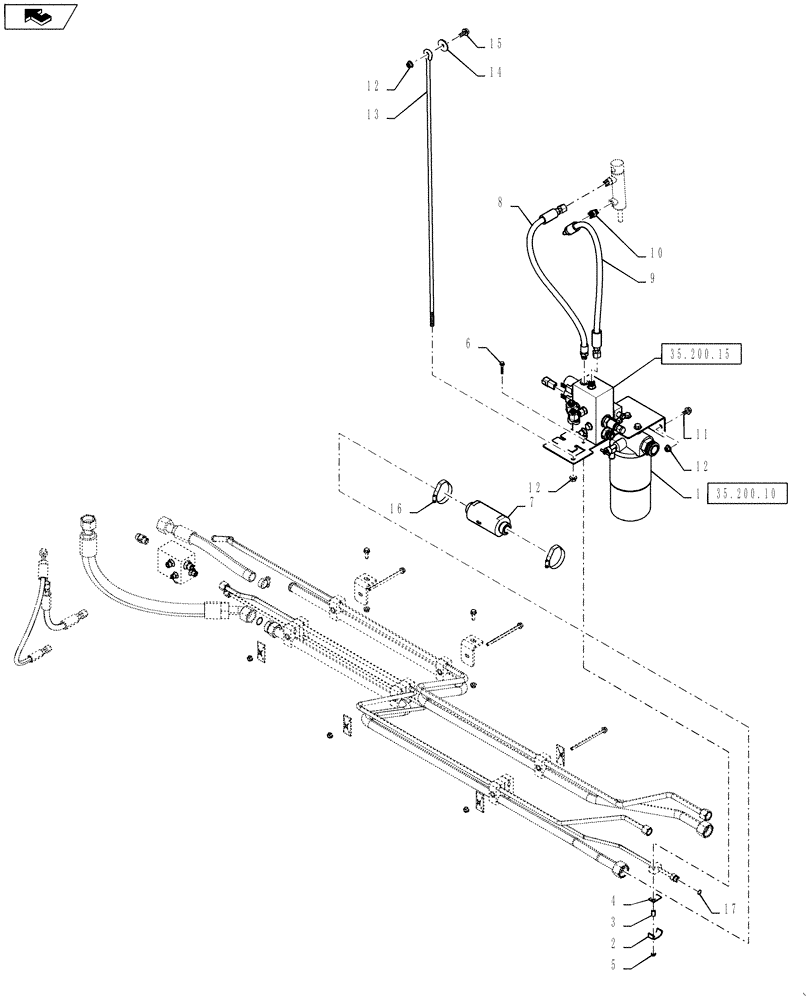

Схема запчастей Case IH 7130 - (35.310.42[01]) - HYDRAULIC PLUMBING, TUBE BUNDLE, FILTER & VALVE ATTACHMENT (35) - HYDRAULIC SYSTEMS
1
8
4
12
2
10
3
35.200.15
home
7
6
16
17
14
5
13
12
35.200.10
12
9
11
15

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

See Page 35.200.10

1шт.

2

449127A1

CLAMP

1шт.

3

418785A1

SPACER

1шт.

4

449128A1

CLAMP,20mm ID

1шт.

5

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

6

87698832

FLANGE BOLT,Hex, M6 x 35mm, Cl 10.9

1шт.

7

84181465

HYDRAULIC OIL FILTER,1-7/16" - 12 x 1-7/16" - 12, 159.5mm L, 90 Micron

1шт.

8

128068A2

FLEXIBLE HOSE

1шт.

9

87558237

HOSE ASSY.

1шт.

10

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

1шт.

11

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

12

86050279

FLANGE NUT,M10 x 1.5, Cl 10

5шт.

13

84160822

ROD

1шт.

14

495-81143

WASHER,13/32" x 1 1/2" x .120"

1шт.

15

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

16

82012728

COLLAR,50mm - 65mm, Worm Gear

2шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 17
