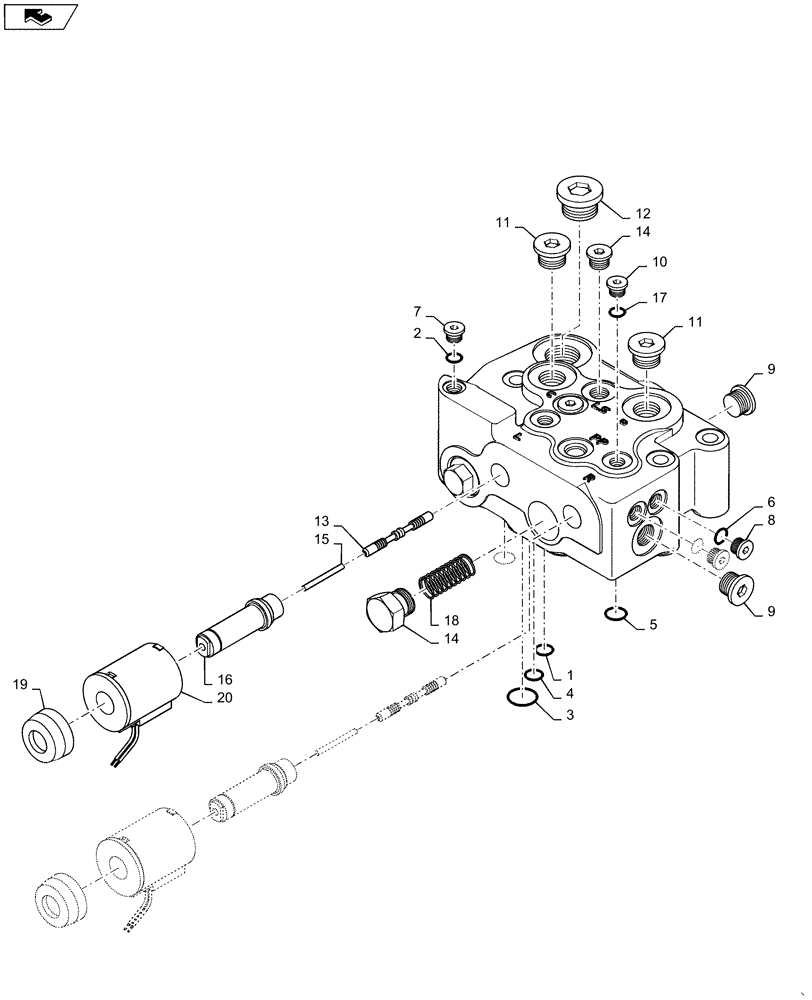

Запчасти Case IH 7130 (35.204.21) - FEEDER LIFT VALVE, BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1шт.

4

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

6

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

7

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

8

218-5210

PLUG,Hex, 3/4"-16 ORB

2шт.

9

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

2шт.

10

218-5206

PLUG,Hex, 3/8"-24 ORB

2шт.

11

221579A1

PLUG,M22 x 1.5 ORB

2шт.

12

188110A1

PLUG

Stop Meter In Spool

1шт.

13

188104A1

SPOOL

Pilot Header Lift

2шт.

14

188107A1

PLUG

Check Header Lift

1шт.

15

188116A1

PIN,3.25mm OD x 39.93mm L

Actuating E.H. Servo

2шт.

16

188117A1

CARTRIDGE,72.25mm OAL

Core Single Acting E.H. Servo Includes #15

2шт.

17

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

18

188114A1

SPRING

Check Header Lift

1шт.

19

188106A1

NUT

2шт.

20

188105A1

SOLENOID

Coil

2шт.
