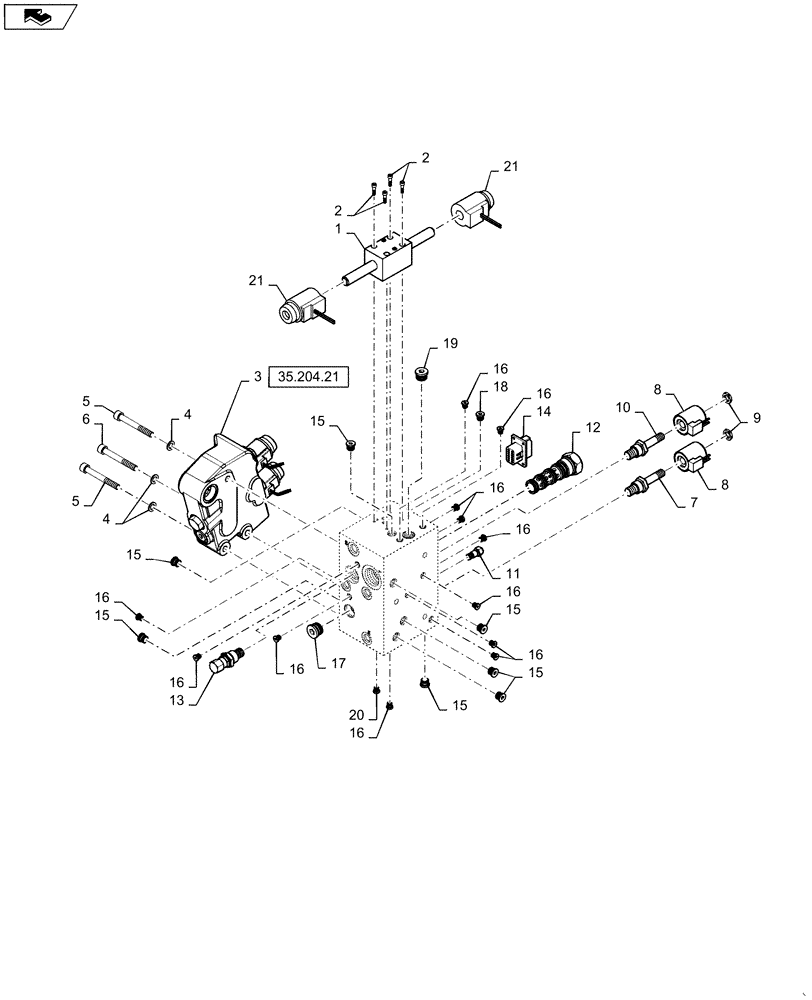

Запчасти Case IH 7130 (35.204.20) - MANIFOLD,MAIN,BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

87434014

CONTROL VALVE

3 Position, 4 Way, Uses Coil 188105A1

1шт.

2

280160

HEX SOC SCREW,#10 - 32 x 3/4"

4шт.

3

87648197

CONTROL VALVE

Feeder Lift

1шт.

87648197R

REMAN-HYD VALVE

5130, 6130, 7130 ALL TIER 4, ALL (1/12-)

1шт.

87648197C

CORE-VALVE HYD

Return Number

1шт.

4

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

5

84549789

BOLT,M10 x 1.5 x 80mm, Cl 12.9

2шт.

6

84557167

SCREW

1шт.

7

191121A1

VALVE

2 Way, 2 Position, Normally Closed

1шт.

8

86995302

SOLENOID

2шт.

9

195683A1

JAM NUT,1/2"-20

2шт.

10

87281256

CARTRIDGE

2 Way, 2 Position W Orifice

1шт.

11

190704A1

CHECK VALVE

1шт.

12

84569276

FLOW CONTROL VALVE

Priority

1шт.

13

87434000

VALVE PRESSURE RELIE

1шт.

14

323464A1

CONNECTOR, ELEC

12 Cavity Deutsch

1шт.

15

87035062

PLUG,Hex, 1/2"-20 ORB

7шт.

16

86632547

PLUG,Hex, 5/16"-24 ORB

12шт.

17

86625138

PLUG,7/18" - 14

1шт.

18

87434016

PLUG

Orificed W Screen

1шт.

19

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

20

87434017

PLUG

Orificed, .030

1шт.

21

188105A1

SOLENOID

2шт.
