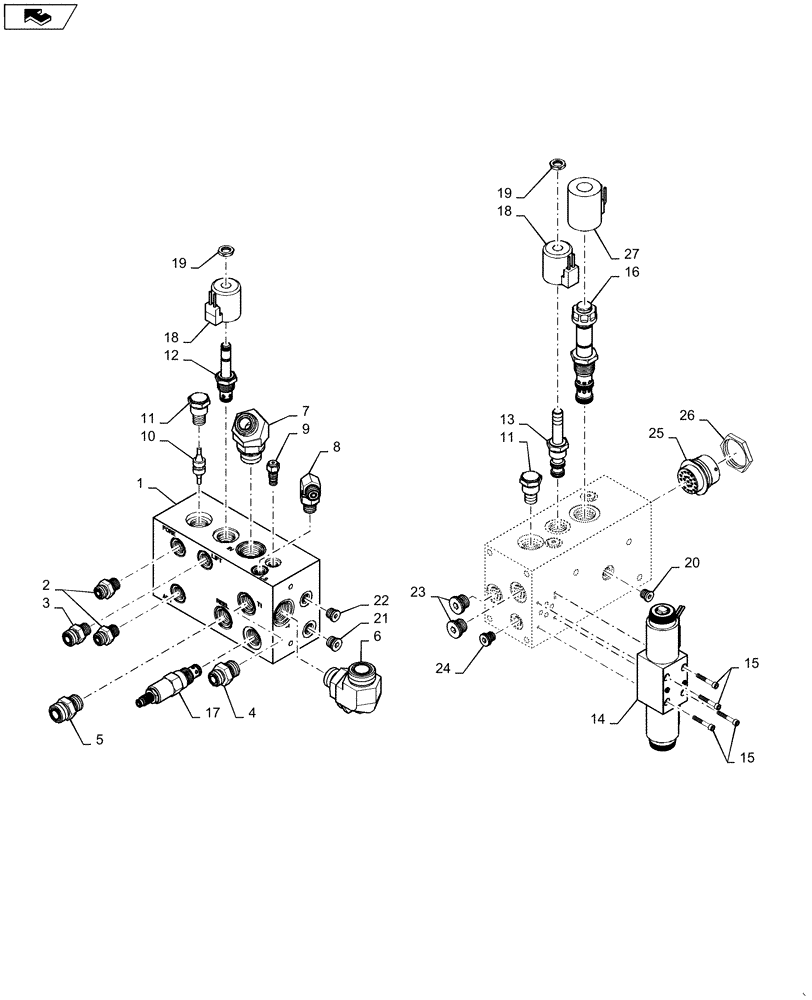

Запчасти Case IH 7130 (35.204.15) - VALVE ASSEMBLY- STANDARD FEEDER FIXED (35) - HYDRAULIC SYSTEMS

1

84300159

VALVE

Complete Valve Without Fittings

1шт.

2

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Reel Fore Flow(Top Left)Reel Aft Flow(Bottom Left)

2шт.

3

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Reel Lift Flow

1шт.

4

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Reel Drive Return

1шт.

5

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Reel Drive Flow To Motor

1шт.

6

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

Return Flow To Tank

1шт.

7

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

Supply To Valve Assy

1шт.

8

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

Load Sense To PFC

1шт.

9

190704A1

CHECK VALVE

30PSI

1шт.

10

149940C1

PISTON

1шт.

11

87433998

CHECK VALVE,7/8" - 14

2-5 PSI

2шт.

12

87436627

VALVE

Relief, 3000PSI, Reel Lower

1шт.

13

190711A1

VALVE

Reel Lift

1шт.

14

87434014

CONTROL VALVE

Rear Fore-Aft

1шт.

15

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

16

87757015

VALVE

Reel Drive/Speed

1шт.

17

84303615

VALVE

Reel Drive Pressure Relief

1шт.

18

86995302

SOLENOID

Reel Drive

2шт.

19

195683A1

JAM NUT,1/2"-20

2шт.

20

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

21

9625178

PLUG,9/16" - 18 ORB

1шт.

22

87035062

PLUG,Hex, 1/2"-20 ORB

3шт.

23

86598046

PLUG,M18 x 1.5 ORB

2шт.

24

86598043

PLUG,M12 x 1.5 ORB

1шт.

25

319151A1

CONNECTOR, ELEC

23 Cavity Receptacle

1шт.

26

86619907

NUT,1.6875"-18

1шт.

27

84304075

COIL

1шт.
