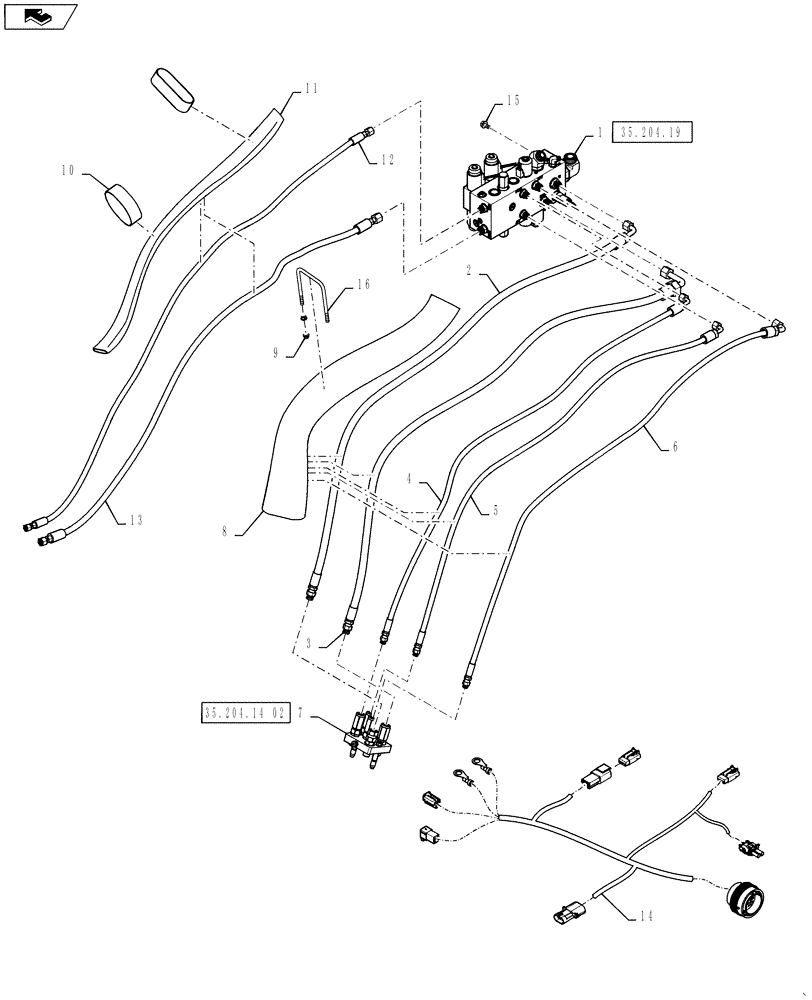

Запчасти Case IH 7130 (35.204.14) - HYDRAULICS-FEEDER COUPLER/LATERAL TILT FEEDER (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Not Serviced Complete, See Page 35.204.19

1шт.

2

84324768

HOSE ASSY.,12.7mm ID x 2320mm L, SAE 100R17

Reel Return

1шт.

3

84324771

HOSE ASSY.,12.7mm ID x 2320mm L, SAE 100R17

Reel Supply

1шт.

4

84324772

HOSE ASSY.,9.53mm ID x 2220mm L, SAE 100R17

Reel Fore

1шт.

5

84324773

HOSE ASSY.,9.53mm ID x 2320mm L, SAE 100R17

Reel Aft

1шт.

6

84324781

HOSE ASSY.

Reel Lift

1шт.

7

87721868

QUICK MALE COUPLING

1шт.

8

84273275

PROTECTIVE SLEEVE,115mm ID x 1050mm L

1шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

10

87108048

SECURING STRAP

2шт.

11

84202851

SLEEVE,25mm ID x 1000mm L

1шт.

12

84324783

HOSE ASSY.,6.35mm ID x 1900mm L, SAE 100R17

Lateral Tilt Rod

1шт.

13

84324784

HOSE ASSY.,9.53mm ID x 1920mm L, SAE 100R17

Lateral Tilt Piston

1шт.

14

87742267

WIRE HARNESS

Feeder

1шт.

15

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

3шт.

16

84372493

SUPPORT

1шт.
