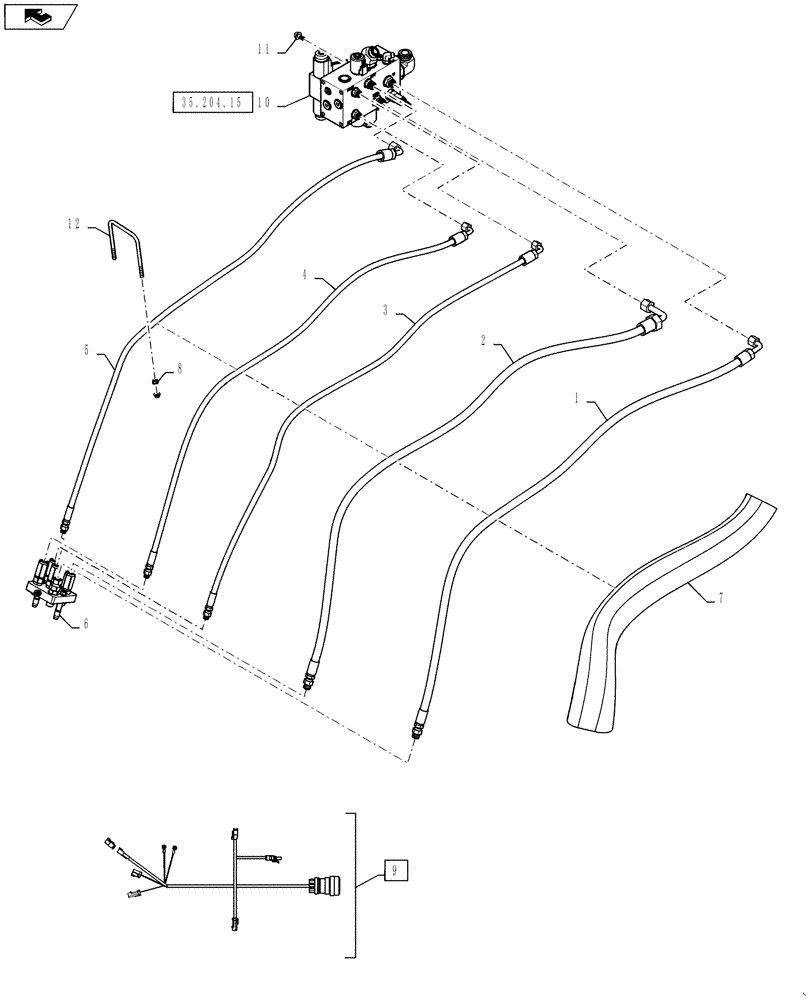

Запчасти Case IH 7130 (35.204.13) - HYDRAULICS-FEEDER COUPLER/FIXED FEEDER (35) - HYDRAULIC SYSTEMS

1

84324768

HOSE ASSY.,12.7mm ID x 2320mm L, SAE 100R17

Reel Return

1шт.

2

84324771

HOSE ASSY.,12.7mm ID x 2320mm L, SAE 100R17

Reel Supply

1шт.

3

84324772

HOSE ASSY.,9.53mm ID x 2220mm L, SAE 100R17

Fore

1шт.

4

84324773

HOSE ASSY.,9.53mm ID x 2320mm L, SAE 100R17

Aft

1шт.

5

84324781

HOSE ASSY.

Lift

1шт.

6

87721868

QUICK MALE COUPLING

See Page 35.204.14(02) For Breakdown

1шт.

7

84273275

PROTECTIVE SLEEVE,115mm ID x 1050mm L

1шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

9

87742267

WIRE HARNESS

Feeder

1шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

Not Serviced Complete, See Page 35.204.15

3шт.

12

84372493

SUPPORT

1шт.
