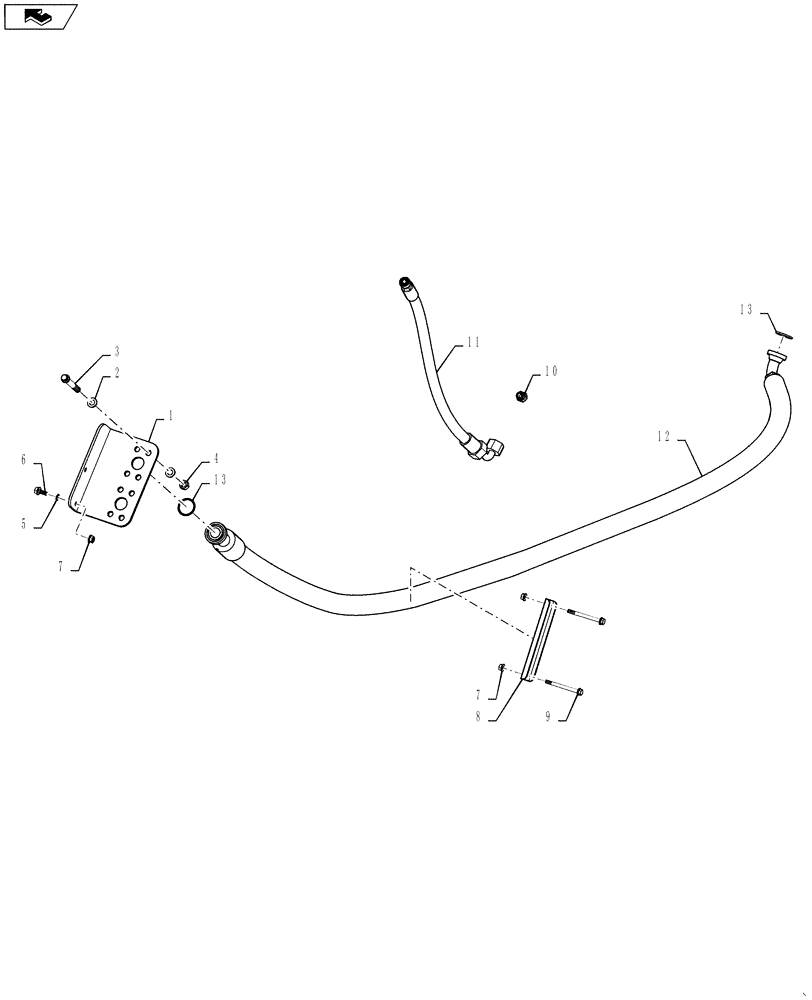

Запчасти Case IH 7130 (35.200.14) - HYDRAULICS, NON-POWER GUIDE AXLE PLUMBING (35) - HYDRAULIC SYSTEMS

1

84197923

BRACKET

Non Powered Flange Connection

1шт.

2

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

3

87026653

SCREW,12 Pt Hd, M12 x 85, 12.9

8шт.

4

337475

NUT,M12, Cl 10

8шт.

5

131-440

PUSH-ON NUT

2шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

8

87727969

BRACKET

1шт.

9

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

2шт.

10

214389

PLUG,3/4" - 16 ORB

1шт.

11

84348781

HOSE ASSY.,15.88mm ID x 725mm L, SAE 100R17

Air Screen Return

1шт.

12

84557184

HOSE ASSY.,31.75mm ID x 2960mm L

Forward Hydrostatic

1шт.

13

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.
