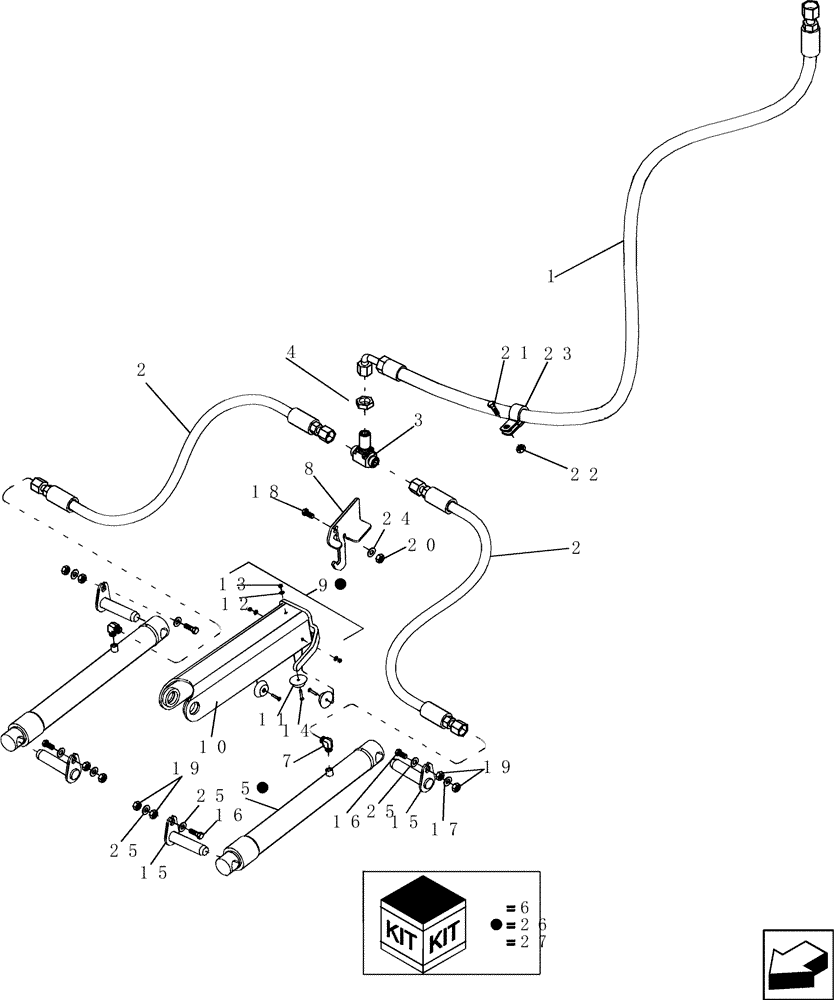

Запчасти Case IH 7130 (35.162.01) - HYDRAULICS - FEEDER LIFT (35) - HYDRAULIC SYSTEMS

1

84490696

HOSE ASSY.,15.88mm ID x 1170mm L, SAE 100R17

Feeder Lift

1шт.

2

87673511

HOSE ASSY.

Feeder Lift Cylinder

2шт.

3

201-452

TEE,13/16"-16, Blkhd Br

1шт.

4

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

1шт.

5

84365099

CYLINDER,60mm Rod, 654mm Stroke

75 mm, Feeder Lift for 5130

2шт.

5

84368142

CYLINDER,80mm Rod, 654mm Stroke

80 mm, Feeder Lift for 61/7130

2шт.

6

84274488

SEAL KIT

75 mm Feeder Lift Cylinder 5130

1шт.

6

84273167

SEAL KIT

80 mm Feeder Lift Cylinder 61/7130

1шт.

7

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

2шт.

8

84402613

HANGER

Safety Stand

1шт.

9

84411618

STAND

75 mm, Incl 10 - 14 For 5130

1шт.

9

84386334

STAND

80 mm, Incl 10-14 For 61/7130

1шт.

10

84411619

CHANNEL

75 mm Stand For 5130

1шт.

10

84386335

CHANNEL

80 mm Stand For 61/7130

1шт.

11

87499125

LINER

For 5130 Stand

3шт.

11

84386340

LINER

For 61/7130 Stand

3шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

13

353308

NUT,M6 x 1.0, Cl 8

3шт.

14

1589127

SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8

For 5130 Stand

3шт.

14

1520828

SCREW,Flat Hd, Csk, M6 x 30mm, Cl 8.8

For 61/7130 Stand

3шт.

15

87332721

PIN ASSY.,41.27mm OD x 202mm L

4шт.

16

120080

BOLT,Hex, M12 x 45, 8.8

4шт.

17

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

18

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

19

9706685

NUT,M12 x 1.75, Cl 8

8шт.

20

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

22

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

23

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

24

87387107

BUSHING

1шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

26

84386345

SERVICE KIT

For 80MM Cylinders, Includes 8,9,10,11,12,13,14,18,20,24

1шт.

27

84411621

SERVICE KIT

For 75MM Cylinders, Includes 8,9,10,11,12,13,14,18,20,24

1шт.

28

84411611

SERVICE KIT

Upgrade From 75mm Cylinder To 80MM

1шт.
