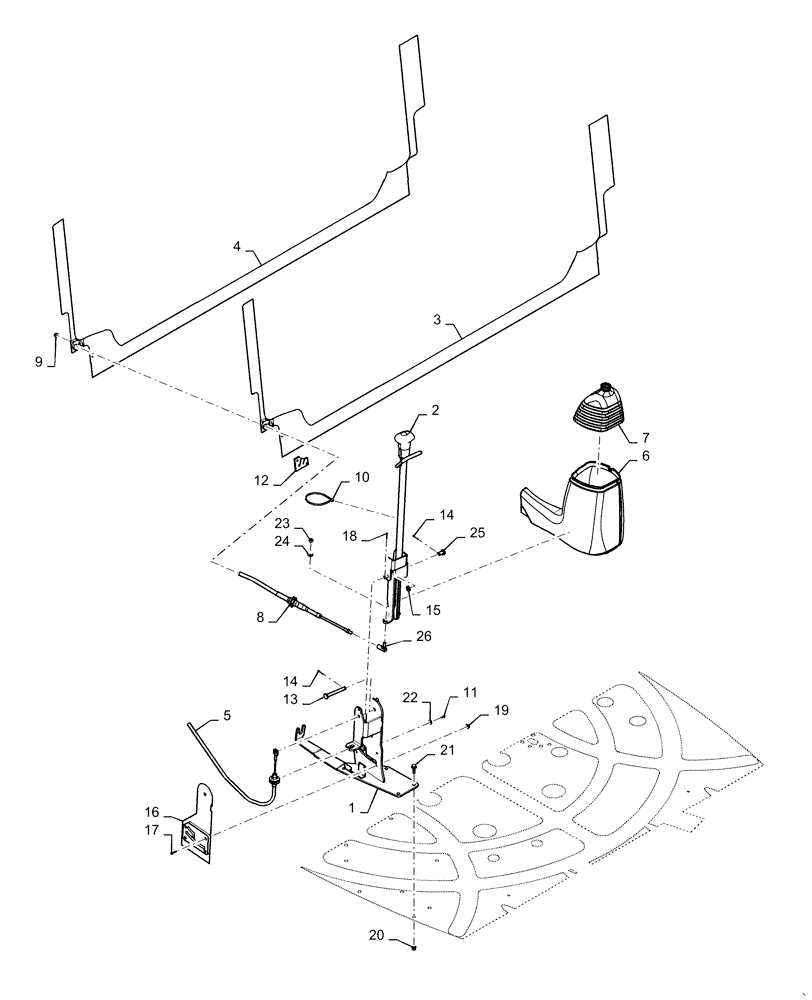

Запчасти Case IH 7130 (21.126.AB) - LEVER, GEARSHIFT (21) - TRANSMISSION

1

47502627

SUPPORT

Gearshift Lever

1шт.

2

47502955

HANDLE

Gearshift

1шт.

3

84416701

PLATE

Shift Cable Securing

1шт.

4

84416703

PLATE

Shift Cable Adjust

1шт.

5

115398A1

CABLE,3209mm L

Gear Selection, 3209mm

1шт.

6

84482251

TRIM PANEL

Boot, Gear Shifter, Lower

4шт.

7

47480642

BOOT

Boot, Gear Shifter, Upper

4шт.

8

115397A1

CABLE,3571mm L

Gear Selection, 3571mm

1шт.

9

86507064

FLANGE NUT,M5 x 0.8

2шт.

10

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

11

86511823

SCREW,Phillips Drive, Pan HD, M4 x 8mm, Cl 4.8

2шт.

12

84544383

GASKET,5mm Thk

Shifter Plate

1шт.

13

86599794

CLEVIS PIN,10mm OD x 85mm L

M10 x 85mm

1шт.

14

10796401

COTTER PIN,M3.2 x 18

3шт.

15

84476156

WASHER,10.5mm ID x 20mm OD x 2mm Thk

20mm OD x 10.5mm ID x 2mm

2шт.

16

47468700

PLATE

Shift Selector

1шт.

17

86511824

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 20mm, Cl 4.8

4шт.

18

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

19

87301238

NUT,Flange Hex, M4 x 0.7

M4, Serrated

4шт.

20

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

21

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

22

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

23

425-115

NUT,5/16"-24, G5

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

25

321637

CLEVIS PIN,M10 x 20

2шт.

26

86548493

BALL,5/16" -24 x 1-2/5"

Swivel Joint

1шт.
