Запчасти Case IH 7130 (21.114.AL[02]) - VAR - 425296, 425297, 425300, 425301 - TRANSMISSION, REAR (21) - TRANSMISSION

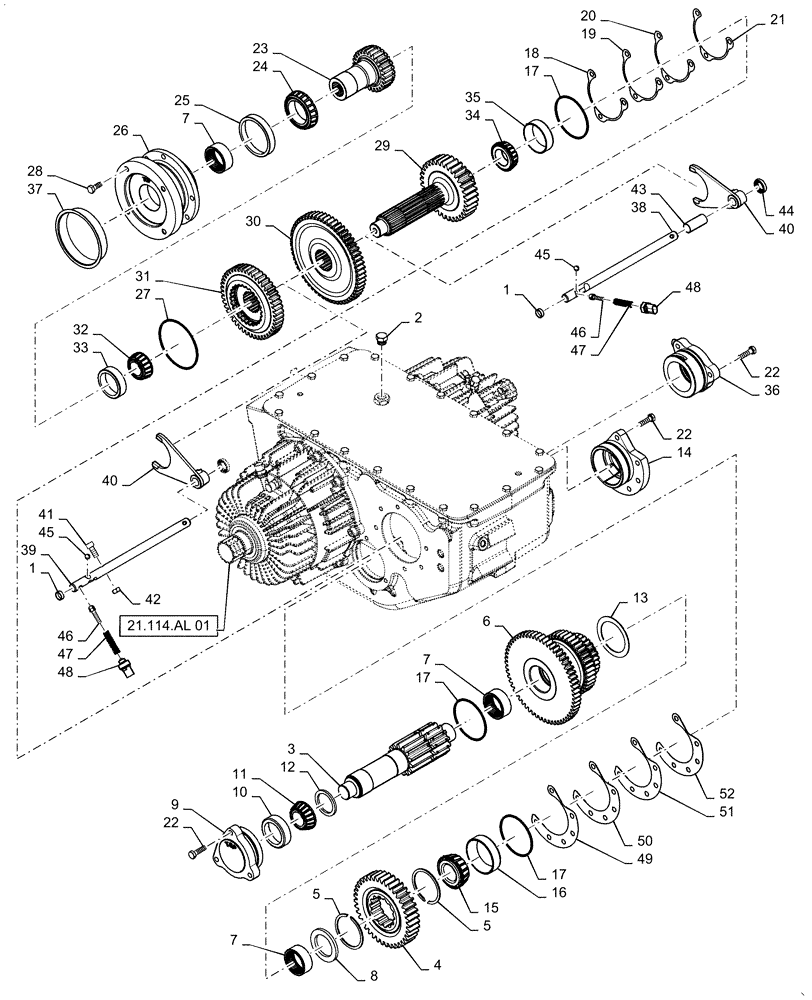

Схема запчастей Case IH 7130 - (21.114.AL[02]) - VAR - 425296, 425297, 425300, 425301 - TRANSMISSION, REAR (21) - TRANSMISSION
9
50
15
6
33
5
45
24
21.114.al 01
17
7
41
36
44
29
40
11
18
1
22
47
37
13
28
48
16
23
17
46
14
34
25
27
30
17
48
3
22
20
19
46
5
47
21
43
2
52
51
7
35
40
1
26
32
45
31
12
7
22
4
42
38
39
8
10
49

Артикул

Название

Примечание

Количество

1

41-1012

PLUG,Cup, 3/4"

2шт.

2

214389

PLUG,3/4" - 16 ORB

1шт.

3

84147485

GEAR SHAFT

Differential Pinion, 14 Tooth

1шт.

4

1342935C1

GEAR

Driven, 39 Tooth, Var - 425300, 425301

1шт.

4

84283744

GEAR

Driven, 37 Tooth, Var - 425296, 425297

1шт.

5

196693H1

RING

85.15mm OD x 74.07mm ID x 3.180mm

2шт.

6

87305298

GEAR,59T, 39T, 27T

Shaft, Var - 425300, 425301

1шт.

6

84283746

GEAR SHAFT

59 Tooth/ 40 Tooth/ 27 Tooth, Var - 425296, 425297

1шт.

7

675708R91

NEEDLE BEARING

2.5" OD x 2.125" ID x 1.0"

3шт.

8

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

Spool Gear

1шт.

9

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

1шт.

10

131312C1

BEARING CUP

2.8448" OD x .7812"

1шт.

11

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

1шт.

12

84147486

SPACER,47.95mm ID x 62mm OD x 4.5mm L

Spool Gear

1шт.

13

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

3.880" OD, 3 Lug

1шт.

14

84602046

CAGE

Bearing Cover

1шт.

15

57862H

BEARING CONE,1.625" ID x 3.375" OD x 1.1875"

1шт.

16

57861H

BEARING CUP

3.375" OD x 1.1875"

1шт.

17

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

3шт.

18

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

1шт.

19

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

1шт.

20

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

1шт.

21

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

1шт.

22

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

12шт.

23

84160943

GEAR

Input, Driver, 26 Tooth

1шт.

24

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

1шт.

25

105497H

BEARING CUP,96.85mm OD x 15.77mm W

96.85mm OD x 15.775mm

1шт.

26

84163252

HOUSING

Input Shaft

1шт.

27

86637742

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

28

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

29

1342934C1

SHAFT

Change Drive, 33 Tooth Spur/ 19 Tooth Spline, Var - 425300, 425301

1шт.

29

84283745

GEAR SHAFT

Change Drive, 35 Tooth Spur/ 19 Tooth Spline, Var - 425296, 425297

1шт.

30

401889R1

GEAR

Sliding, 58 Tooth

1шт.

31

87305299

GEAR

Sliding, 2nd And 3rd, 46 Tooth, Var - 425300, 425301

1шт.

31

84283747

GEAR

Sliding, 2nd And 3rd, 45 Tooth, Var - 425296, 425297

1шт.

32

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

1шт.

33

51200379

BEARING CUP,69.9mm OD x 18.95mm W

69.9mm OD x 18.9485mm

1шт.

34

290099C91

TAPERED BEARING,39.69mm ID x 22.1mm W

1.5625" ID

1шт.

35

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

2.8750" OD

1шт.

36

1997998C1

BEARING COVER,72.99 mm ID x 101.51 mm OD x 37.8 mm

1шт.

37

353-75

PLUG,Cap, 5.200" OD

1шт.

38

84213134

SHIFT RAIL

1st Gear

1шт.

39

84213133

SHIFT RAIL

2nd And 3rd Gear

1шт.

40

1997656C1

SHIFTER FORK

2шт.

41

1997657C1

SET SCREW

Socket Head, M10 x 30mm, 12.9

2шт.

42

829-1310

NUT,M10, Cl 10

2шт.

43

189168A1

SPACER

Shift Rail

1шт.

44

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

Shift Rails

2шт.

45

86624945

BALL,11.11mm OD, Gr 24

Gear Position Check

2шт.

46

47464221

PIN

Spring Actuator, Gear Position

2шт.

47

87670320

SPRING

Ball Detent, Gear Position

2шт.

48

84152678

SWITCH

Gear Position, Normally Closed

2шт.

49

84602040

SHIM

Bearing Cap, -.030"

1шт.

50

84602041

SHIM

Bearing Cap, -.003"

1шт.

51

84602042

SHIM

Bearing Cap, -.005"

1шт.

52

84602043

SHIM

Bearing Cap, -.007"

1шт.

Выбрано товаров: 56
