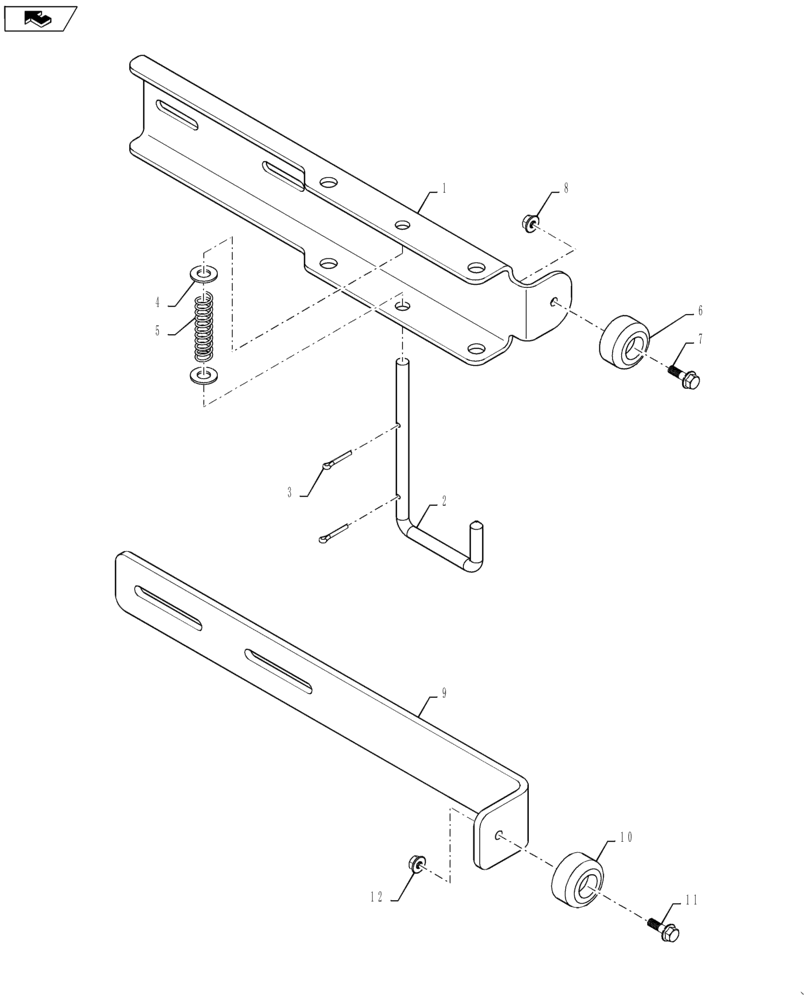

Запчасти Case IH 7130 (90.100.BI[04]) - LATCH AND BUMPER RH/LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87497819

BRACKET

Used On Both LH And RH

1шт.

2

87728300

PIN

1шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

5

192216A1

SPRING

1шт.

6

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

Includes Washer Insert

1шт.

7

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

8

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.

9

87651938

SUPPORT

RR LH Door

1шт.

10

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

Includes Washer Insert

1шт.

11

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

12

86619800

FLANGE NUT,M6 x 1, Cl 8

1шт.
