Запчасти Case IH 7130 (80.180.AU[02]) - UNLOADER TUBE ASSEMBLY, 21 FEET (80) - CROP STORAGE/UNLOADING

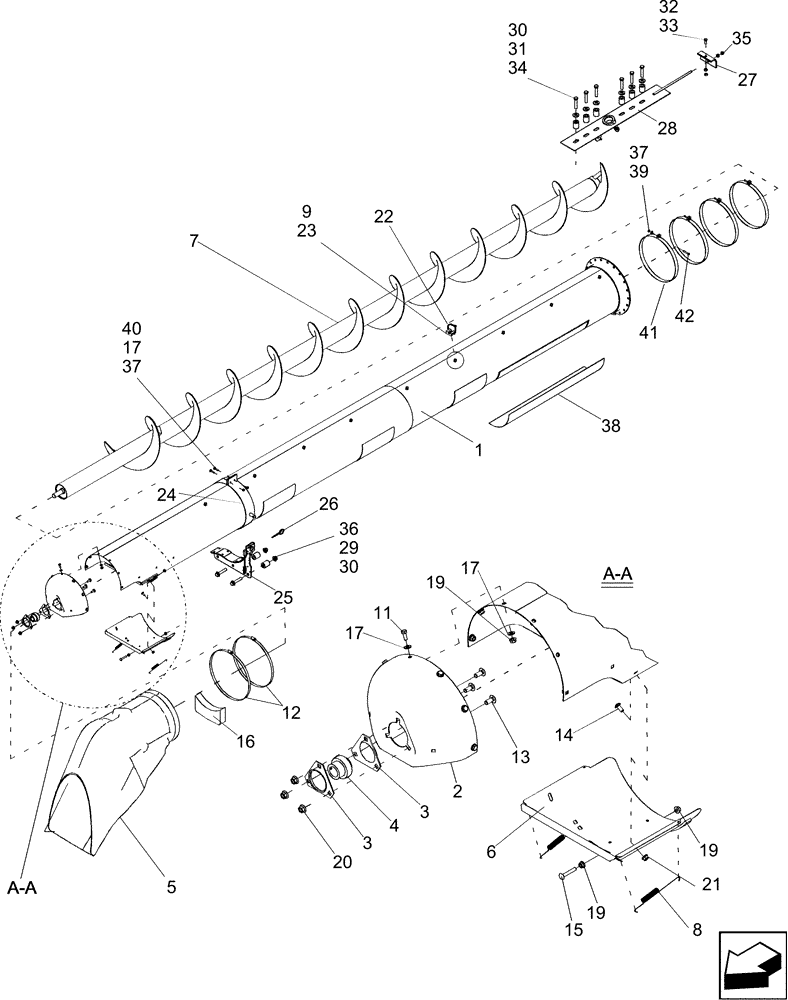

Схема запчастей Case IH 7130 - (80.180.AU[02]) - UNLOADER TUBE ASSEMBLY, 21 FEET (80) - CROP STORAGE/UNLOADING
1
19
22
4
33
2
35
19
37
31
30
40
23
32
28
30
38
15
29
19
5
42
12
25
3
14
37
26
27
17
34
24
21
13
36
17
7
6
9
11
41
17
3
16
8
39
20

Артикул

Название

Примечание

Количество

1

87743683

TUBE,5034.7 mm L

Unloader, Perforated

1шт.

1

87743673

TUBE,356mm ID x 5034.7mm OAL

Unloader, Standard And RFC

1шт.

2

87741381

COVER

Cap

1шт.

3

84414986

FLANGE

Bearing

2шт.

4

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

30 mm Bore, 62 mm Outer Sphere

1шт.

5

84219375

SPOUT

1шт.

6

84131732

DOOR

Grain Saver

1шт.

7

84447941

AUGER,5400.5mm L

Standard And Perforated

1шт.

7

87280339

AUGER,5400.5mm L

Extended Wear, RFC

1шт.

8

1338869C2

SPRING,162mm Free Length

2шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Perforated Unloader Tube

9шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

12

87339347

CLAMP,316mm - 387mm

2шт.

13

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

14

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

15

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

16

84219420

PLUG

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

19

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

20

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

21

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

22

86566989

CABLE TIE,208mm L

Perforated Unloader Tube

9шт.

23

445394

RIVET,Pop, 3/16" x 1/2" OAL

Perforated Unloader Tube

9шт.

24

84248894

SECURING BAND

Unloader Tube

1шт.

25

84528510

SUPPORT

Unloader Tube

1шт.

25a

84402542

WEAR STRIP,76mm W x 155mm OAL x 1.7mm Thk

1шт.

25b

151-573

RIVET,Pop, 4.75mm OD x 14.61mm L

4шт.

26

87106279

PIN,6.4mm OD

1шт.

27

84072832

BRACKET

1шт.

28

86998599

PLATE

1шт.

29

87646188

FLANGE BOLT,M16 x 95.4mm, Cl 10.9

2шт.

30

87284863

SPACER,38mm OD x 46mm OAL

8шт.

31

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

6шт.

32

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

33

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

34

86577946

BOLT,Hex, M16 x 80mm x 10.9

6шт.

35

9706685

NUT,M12 x 1.75, Cl 8

2шт.

36

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

37

86629542

NUT,M8 x 1.25, Cl 8.8

QTY For Standard And RFC Unloader Tubes, QTY For Perforated Unloader Tube

6шт.

38

87552568

COVER

Perforated Unloader Tube

1шт.

39

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

Perforated Unloader Tube

4шт.

40

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

2шт.

41

87552565

CLAMP,356mm

Perforated Unloader Tube

4шт.

42

120107

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8, Full Thd

Perforated Unloader Tube

4шт.

Выбрано товаров: 44
