Запчасти Case IH 7130 (80.175.AG[03]) - UNLOADER BELT DRIVE ASSY (80) - CROP STORAGE/UNLOADING

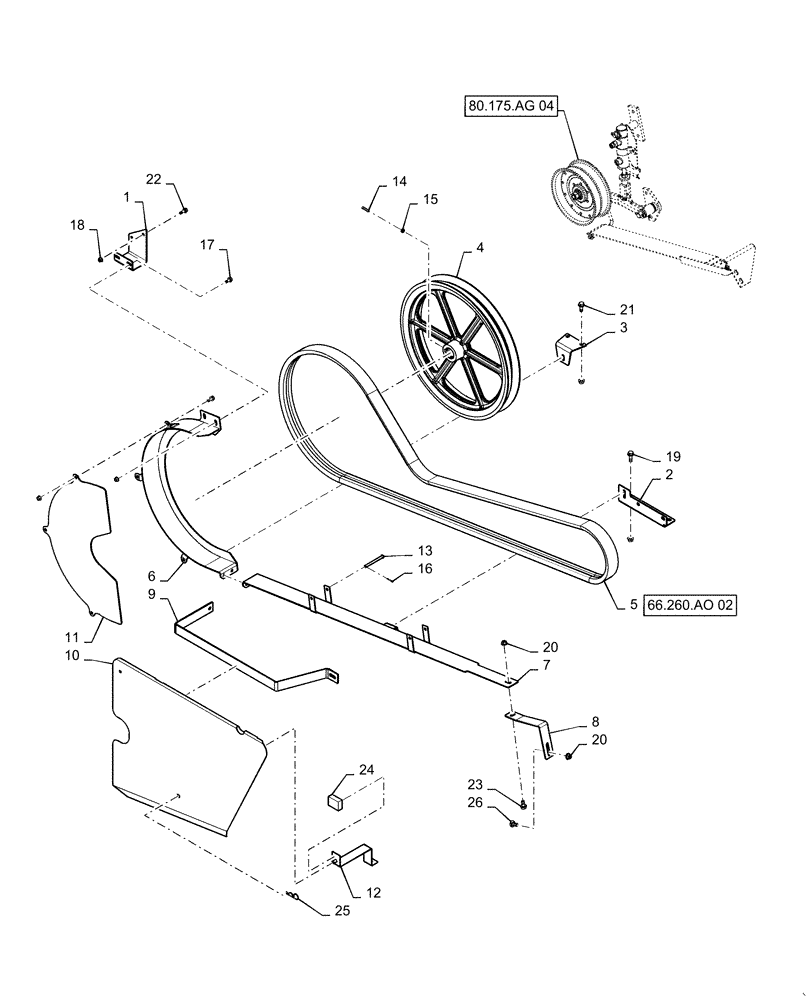

Схема запчастей Case IH 7130 - (80.175.AG[03]) - UNLOADER BELT DRIVE ASSY (80) - CROP STORAGE/UNLOADING
14
9
20
4
7
3
17
11
66.260.ao 02
80.175.ag 04
15
24
22
20
16
10
19
8
25
23
1
26
5
12
18
2
6
21
13

Артикул

Название

Примечание

Количество

1

87682668

SUPPORT

Unloader Belt Guide, Top, Dark Gray

1шт.

2

87682672

SUPPORT

Unloader Belt Guide, Center, Dark Gray

1шт.

3

87682670

SUPPORT

Unloader Belt Guide, Bottom, Dark Gray

1шт.

4

87555276

PULLEY

Unloader Driven, Dark Gray

1шт.

5

87549557

V-BELT,22.33 mm W x 3868.00 mm L

Unloader Drive

1шт.

6

87682676

GUIDE

Unloader Belt, Front, Dark Gray

1шт.

7

87682680

GUIDE

Unloader Belt, Rear, Dark Gray

1шт.

8

87395751

SUPPORT

Unloader Belt Guide, Rear, Dark Gray

1шт.

9

87684242

STRAP

Unloader Drive Shield, Dark Gray

1шт.

10

87684244

BRACKET, SUPPORTING

Dunloader Drive Belt Shield, Dark Gray

1шт.

11

87684246

COVER ASSY

Unloader Drive Belt, Dark Gray

1шт.

12

87555282

SUPPORT ASSY.

Unloader Shield, Dark Gray

1шт.

13

439-1556

PIN,5/16" x 3 1/2"

2шт.

14

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

2шт.

15

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

16

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

17

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

9шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

11шт.

19

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

20

86050279

FLANGE NUT,M10 x 1.5, Cl 10

11шт.

21

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

5шт.

22

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

23

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

2шт.

24

187884C1

SEALING STRIP,50mm L

Foam

1шт.

25

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

Unloader Drive Belt Shield

1шт.

26

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

Выбрано товаров: 26
