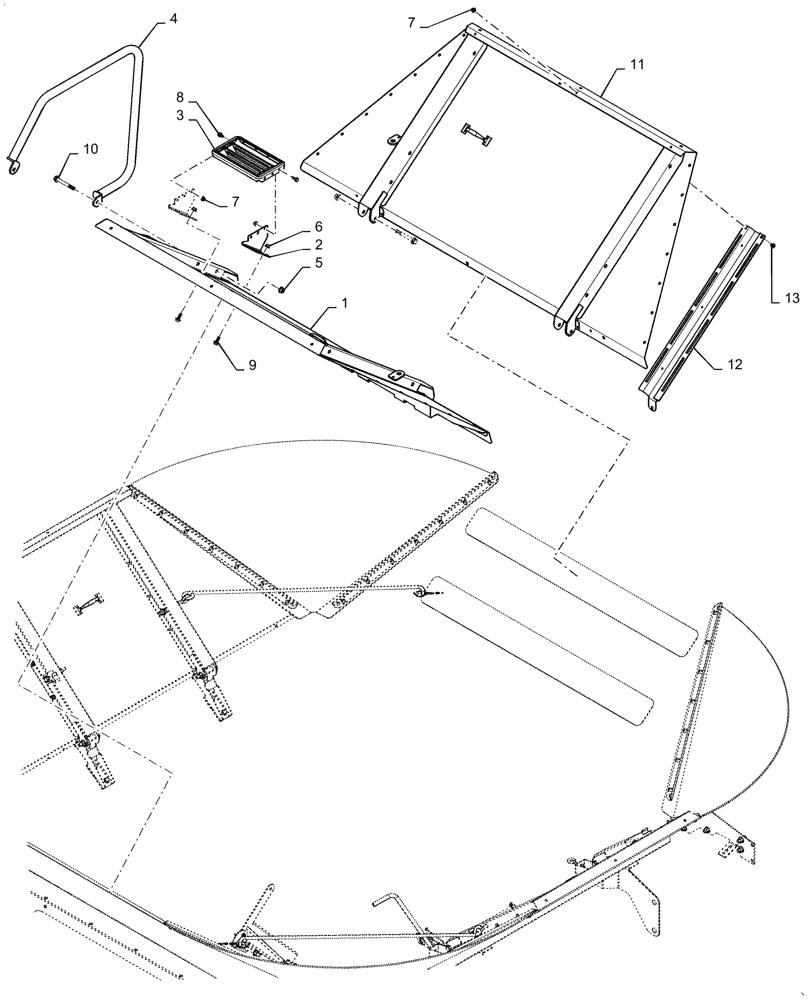

Запчасти Case IH 7130 (80.150.BG[04]) - VAR - 425466 - GRAIN BIN EXTENSION, DOOR (80) - CROP STORAGE/UNLOADING

1

87735049

EXTENSION ASSY.

Rear, 32"

1шт.

2

87609690

BRACKET

Step Support

2шт.

3

1531337C1

STEP

1шт.

4

87648705

HANDLE

Grab

1шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

8

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

9

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

Flange, M10 x 25mm, Full Thread, 10.9

4шт.

10

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

2шт.

11

87721662

EXTENSION ASSY.

Front, 32"

1шт.

12

87685904

BRACKET

Bin Level Sensor Mount

1шт.

13

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

3шт.
