Запчасти Case IH 7130 (80.150.AI) - BOTTOM, GRAIN TANK (80) - CROP STORAGE/UNLOADING

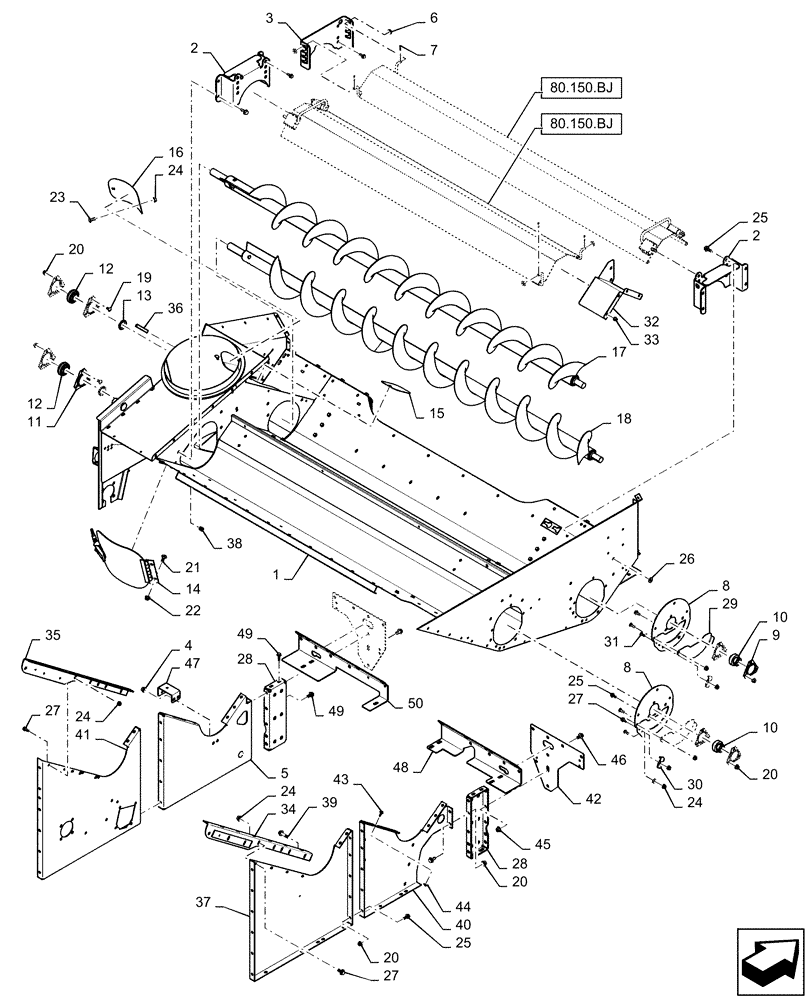

Схема запчастей Case IH 7130 - (80.150.AI) - BOTTOM, GRAIN TANK (80) - CROP STORAGE/UNLOADING
44
34
28
14
9
29
16
45
4
5
33
42
1
50
2
19
25
25
10
24
39
12
12
80.150.bj
8
46
49
22
40
23
20
36
30
6
47
3
2
43
37
20
7
38
15
21
18
31
25
24
20
13
48
35
27
80.150.bj
28
32
20
24
49
17
24
27
41
26
8
11
27
10

Артикул

Название

Примечание

Количество

1

84499036

GRAIN TANK

Bottom

1шт.

2

86975993

BRACKET

Support

2шт.

3

86975994

BRACKET

Support

1шт.

4

86610201

INSERT,M8

M8

2шт.

5

84499021

SUPPORT

Support, Center, LH

1шт.

6

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

4шт.

7

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

8

87342517

BEARING COVER

Grain Tank Access, Cleanout

2шт.

9

84414986

FLANGE

62mm ID

4шт.

10

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

62mm OD

2шт.

11

84414985

FLANGED BEARING

72mm ID

4шт.

12

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

13

84075099

WASHER,36mm ID x 51mm OD x 6mm Thk

2шт.

14

87583588

COVER ASSY

Bubble Up Inspection

1шт.

15

86600691

COVER

Inspection

1шт.

16

86597524

COVER

Inspection

1шт.

17

84075321

AUGER

Grain Tank Cross, Front

1шт.

18

84075322

AUGER

Grain Tank Cross, Rear

1шт.

19

87682390

CARRIAGE BOLT,M10 x 1.5 x 20mm, Cl 10.9

Carriage, M10 x 20mm, 10.9

7шт.

20

86050279

FLANGE NUT,M10 x 1.5, Cl 10

32шт.

21

87752072

CARRIAGE BOLT,M6 x 1.0 x 26.6mm, Cl 10.9

M6 x 20mm, 10.9

2шт.

22

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

23

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

38шт.

25

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

Flange, M10 x 25mm, Full Thread, 10.9

27шт.

26

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

38mm OD x 10mm ID

3шт.

27

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

31шт.

28

84499024

SUPPORT

Lifting Eye

2шт.

29

87342513

COVER

Grain Tank Cleanout

2шт.

30

425093

CLAMP

Line Retainer

6шт.

31

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

8шт.

32

87564472

COVER

1шт.

33

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

Rivnut, M8

4шт.

34

84131457

ANGLE

Grain Tank Rear, RH

1шт.

35

84131453

ANGLE

Grain Tank Rear, LH

1шт.

36

86516805

SOFT TRIM,31-3/4" L

Cut To Length, 2.4"

1шт.

37

84581530

SUPPORT

Grain Tank Rear, RH

1шт.

38

86610201

INSERT,M8

Rivnut, M8

2шт.

39

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

40

84499028

SUPPORT

Grain Tank, Center, RH

1шт.

41

87755376

SUPPORT

Grain Tank, Rear, LH

1шт.

42

47470110

SUPPORT

Grain Tank, Front

1шт.

43

87673845

SELF-TAP SCREW,M8 x 1.25 x 25mm

12шт.

44

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

12шт.

45

86512497

FLANGE NUT,M12 x 1.75, Cl 10

31шт.

46

87343550

FLANGE BOLT,Hex, M12 x 25mm

31шт.

47

87685426

BRACKET

Clamp

1шт.

48

47470118

CHANNEL

Grain Tank Front, RH

1шт.

49

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

50

47470122

CHANNEL

Grain Tank Front, LH

1шт.

Выбрано товаров: 50
