Запчасти Case IH 7130 (80.101.AR[03]) - VAR 722630 - GRAIN ELEVATOR HOUSING (80) - CROP STORAGE/UNLOADING

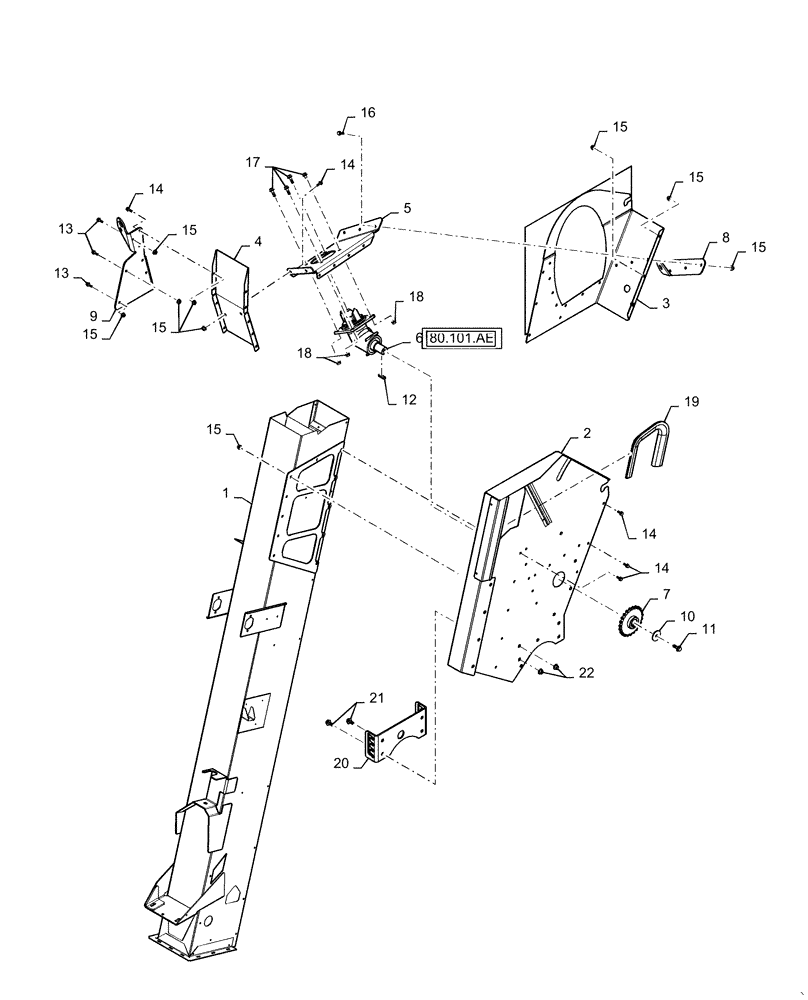

Схема запчастей Case IH 7130 - (80.101.AR[03]) - VAR 722630 - GRAIN ELEVATOR HOUSING (80) - CROP STORAGE/UNLOADING
15
4
22
12
17
15
14
15
80.101.ae
15
18
14
18
1
13
15
9
15
13
7
15
14
6
11
20
8
10
3
21
5
19
2
16
14

Артикул

Название

Примечание

Количество

1

84398020

FRAME

Clean Grain Elevator, Standard Wear

1шт.

2

84122309

PANEL ASSY.

Elevator Head And Gearbox Support

1шт.

3

84135527

FRAME ASSY

Gearbox And Elevator Head

1шт.

4

84122801

WALL

Bubbler Auger Sump

1шт.

5

84122793

BRACKET

Gearbox And Bubbler Auger

1шт.

6

87491126

GEARBOX

Gearbox, Bubbler Auger W/ Coupler

1шт.

7

84167767

SPROCKET ASSY.

Bubbler Driven, 23 Tooth

1шт.

8

87656574

PLATE

Auger Hinge

1шт.

9

87653731

BRACKET

Bubbler Hinge, Rear

1шт.

10

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

2" OD x .521" ID x .134"

1шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

12

354775

KEY,10mm x 8mm x 40mm

1шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

14

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

31шт.

15

86507066

FLANGE NUT,M8 x 1.25, Cl 10

37шт.

16

87030775

BOLT,M8 x 38.1mm, Cl 10.9

3шт.

17

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

4шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

19

87703603

SEAL,610mm L

Elevator Head

1шт.

20

84126497

BRACKET, SUPPORTING

Auger Cover

1шт.

21

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

22

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

Выбрано товаров: 22
