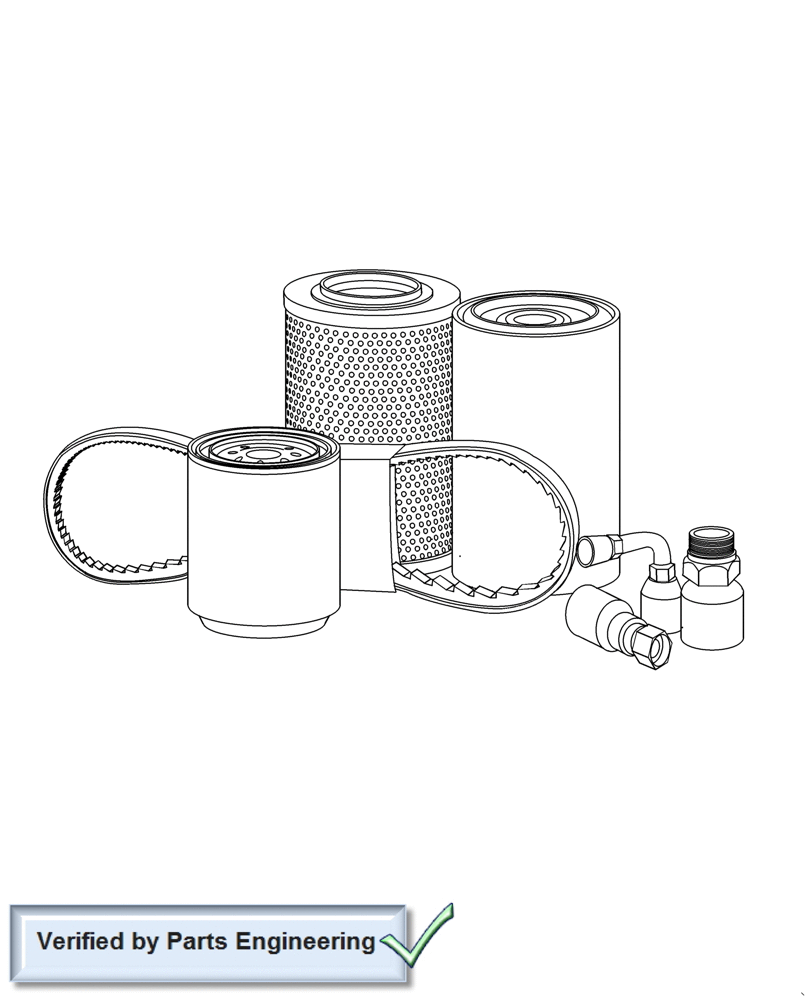

Запчасти Case IH 7130 (05.100.03) - FILTERS & CAPACITIES - ALL MODELS (05) - SERVICE & MAINTENANCE

1

Coolant Capacity 32L (8.5 Gallons), Coolant Type XHD Coolant/Antifreeze

1шт.

2

6.7L W Filter Change 15.5L(16 Quarts), Engine Oil Type- Akcela Number 1 Engine Oil SAE 15W-40 - 5130 Only

1шт.

2

9L W Filter Change 15.5L(169.0L 26.4L(27.9 Quarts), Engine Oil Type- Akcela Number 1 Engine Oil SAE 15W-40 - 6130/7130 Only

1шт.

3

DEF Capacity, 41 Gallons (155L)

1шт.

4

Transmission Capacity - 16.2 Liters (4.3 Gallons) Transmission Oil Type - Akcela HY-TRAN Ultra

1шт.

5

Final Drive Oil Capacity (Each) 12.3L(13 US Quarts) Final Drive Oil Type - Akcela Gear 135 H EP 85W-140

1шт.

5

Hydraulic Reservoir Capacity- 57L (15 Gallons) -Hydraulic Reservoir Oil Type - Akcela HY-TRAN Ultra - Entire System Capacity- 100L(26.4 Gallons)

1шт.

6

PTO Gearbox/Hydrostatic System - 13.2L (3.5 Gallons) Oil Type Akcela HY-TRAN Ultra

1шт.

7

Feeder and Cleaning Fan Gear Case (Standard) 6.4L (6.8 quarts) Akcela Gear Lube SSl

1шт.

7

Feeder and Cleaning Fan Gear Case (Heavy Duty, If Equipped) 8.2L (8.7 Quarts) Akcela Gear Lube SSL

1шт.

8

Two Speed Feeder Gear Case (If Equipped), 4.3L(4.5 Quarts) Akcela HY-Tran Ultra

1шт.

9

Lower Unloader Gear Case Capacity - 0.6 Liters (1.3 US Pints) - Akcela 135H EP Gear Lube SAE 85W-140

1шт.

10

Upper Unloader Gear Case Capacity - .43 Liters (0.9 US Pints) - Akcela 135H EP Gear Lube SAE 85W-140

1шт.

11

Rotor Gear Case Capacity - 7.5 Liters (1.975 US Gallons)- Akcela 135H EP Gear Lube SAE 85W-140

1шт.

12

Straw Chopper Gear Case Capacity - 3.1 Liters (3.3 US Quarts) - Akcela 135H EP Gear Lube SAE 80W-90

1шт.
