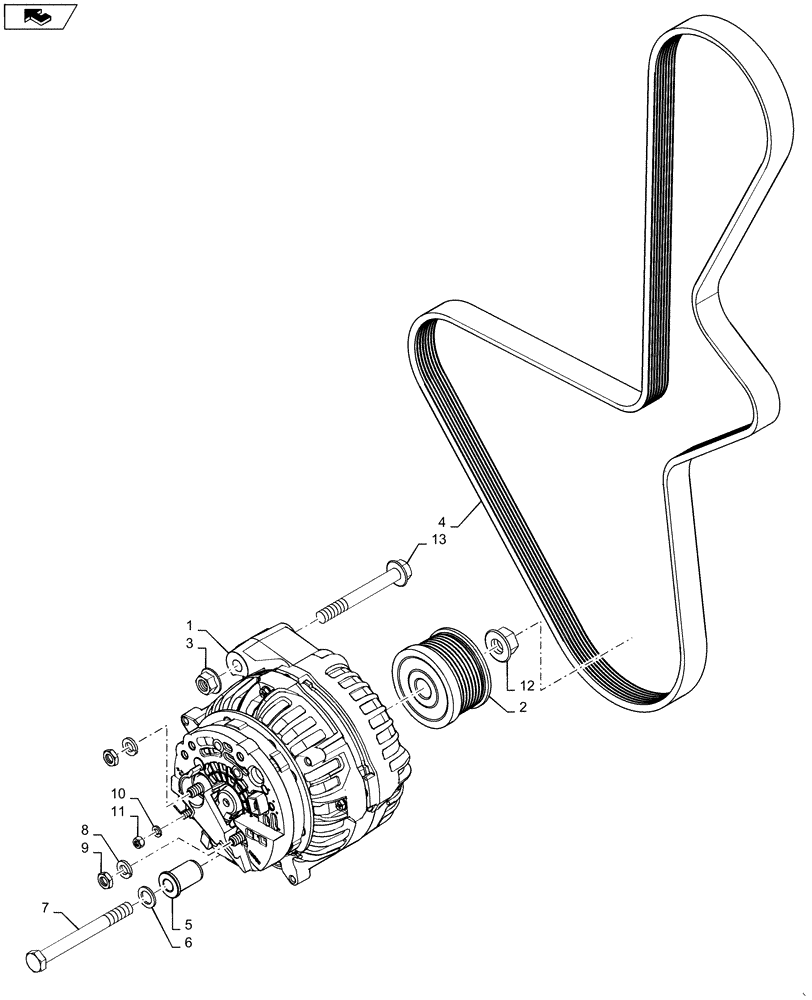

Запчасти Case IH 7130 (55.301.AA[02]) - ALTERNATOR AND MOUNTING (55) - ELECTRICAL SYSTEMS

1

84474354

ALTERNATOR,12V, 200A

200A 14V *Includes Nut 86512498*, Does Not Include Pulley

1шт.

1

84474354R

REMAN-ALTERNATOR,12V, 200A

5130 TIER 4 COMMON CAB, 6130 TIER 4 COMMON CAB MR6CN4, 7130 TIER 4 COMMON CAB MR7CN4 ALL (1/13-)

1шт.

1

84474354C

CORE-ALTERNATOR

RETURN NUMBER

1шт.

2

84174273

PULLEY

Not Included With Alternator

1шт.

3

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

4

84292913

BELT,2203.00 mm L

1шт.

5

84277970

SPACER

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

7

87698861

BOLT,Hex, M10 x 110mm, Cl 10.9

1шт.

8

892-11008

LOCK WASHER,8mm ID

2шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

10

892-11005

LOCK WASHER,M5

1шт.

11

824-1405

NUT,M5, Cl 5

1шт.

12

86512498

FLANGE NUT,M16 x 2, Cl 10

1шт.

13

87698842

BOLT,Hex, M10 x 80mm, Cl 10.9

1шт.
