/ / / / / / / / (10.105.03[01]) - PISTON & CONNECTING ROD - 7120/7120(LA)
Запчасти Case IH 7120 (10.105.03[01]) - PISTON & CONNECTING ROD - 7120/7120(LA) (10) - ENGINE

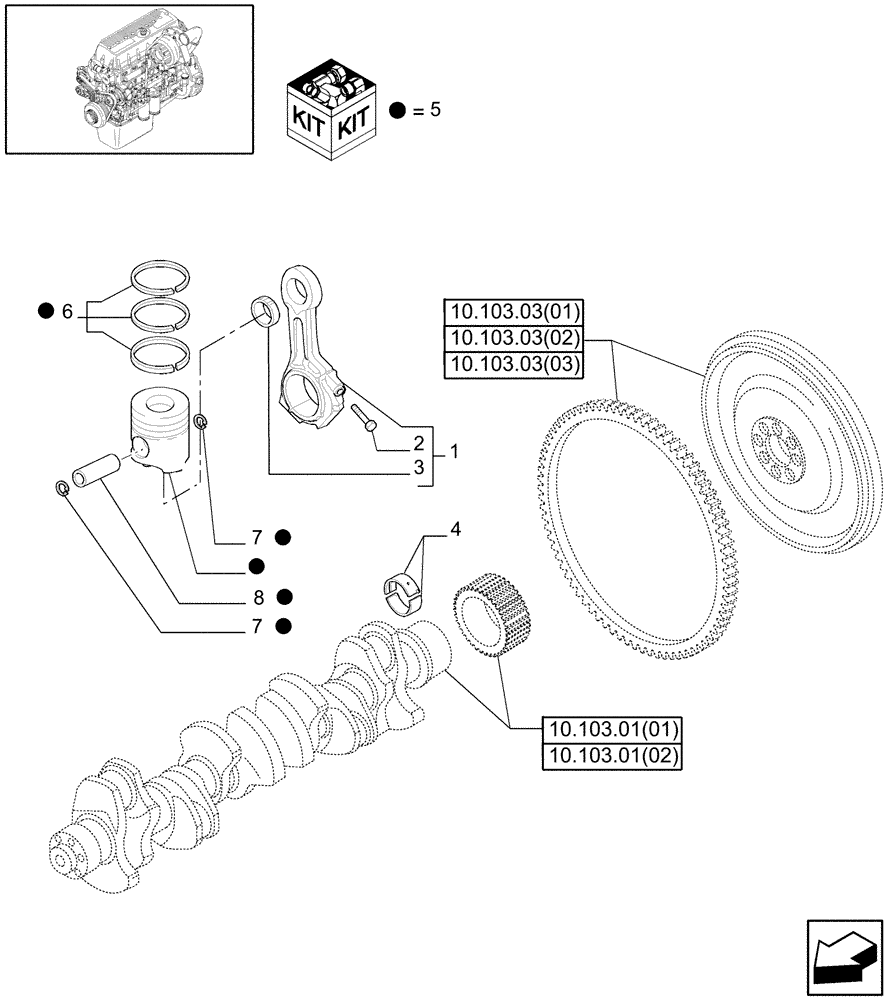

![Схема запчастей Case IH 7120 - (10.105.03[01]) - PISTON & CONNECTING ROD - 7120/7120(LA) (10) - ENGINE](https://partsell.ru/storage/images/caseih/265631.png)
3
2
8
1
6
4
7
5
10.103.03(02)
10.103.01(02)
10.103.01(01)
10.103.03(01)
10.103.03(03)
7
1
504128706
CONNECTING ROD
6шт.
2
504126229
SCREW
12шт.
3
504126231
BUSHING
6шт.
4
8094907
SET OF CONN ROD BRGS STD
Red
6шт.
4
8094908
SET OF CONN ROD BRGS STD
Green
6шт.
4
8094909
SET OF CONN ROD BRGS U/S
Red/Black (- 0.127)
6шт.
4
8094910
SET OF CONN ROD BRGS U/S
Green Black (- 0.127)
6шт.
4
8094911
SET OF CONN ROD BRGS U/S
Red (- 0.254)
6шт.
4
8094912
SET OF CONN ROD BRGS U/S
Green (- 0.254)
6шт.
4
8094913
SET OF CONN ROD BRGS U/S
Red (- 0.508)
6шт.
4
8094914
SET OF CONN ROD BRGS U/S
Green (- 0.508)
6шт.
5
8094893
PISTON ASSY
Std
6шт.
6
8094892
SET OF RINGS
6шт.
7
16873473
SNAP RING
12шт.
8
504126580
PISTON PIN
6шт.
