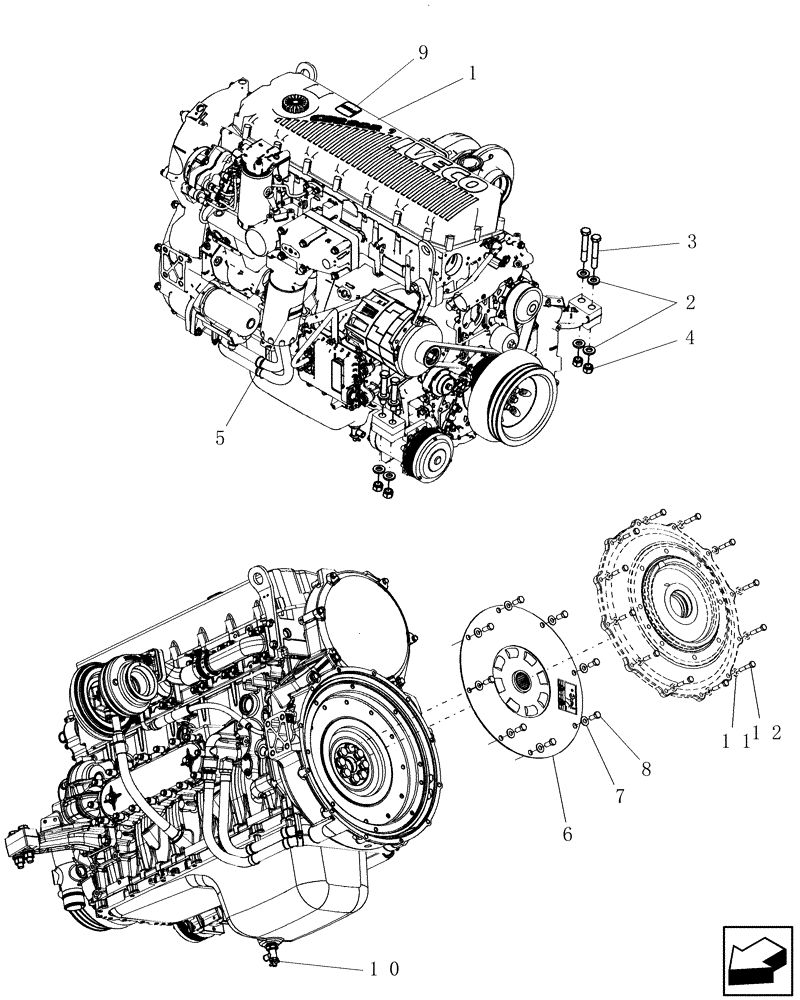

Запчасти Case IH 7120 (10.100.01[01]) - COMPLETE ENGINE - 7120/7120(LA) (10) - ENGINE

1

87733691

ENGINE

Cursor 9

1шт.

1

87733691R

REMAN-REPLACEMENT EN

Reman Cursor 9

1шт.

1

87733691C

CORE-BASIC ENGINE

Return Number

1шт.

1

87733691ER

REMAN-REPLACEMENT EN

7120 (9/08 - 2/12) w/Cursor 9, 6 Cyl., 4 Valve, Tier 3 Engine

1шт.

1

87733691EPAC

CORE-REPLACEMENT ENG

Return Number

1шт.

1

47389929R

REMAN-BASIC ENGINE

7120 (9/08 - 2/12) w/Cursor 9, 6 Cyl., 4 Valve, Tier 3 Engine, Reman Basic Engine For New P/N 87733691

1шт.

1

47389929C

CORE-BASIC ENGINE

Return Number

1шт.

2

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

8шт.

3

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

4шт.

4

412066

NUT,M16 x 2.0, Cl 8

4шт.

5

87679098

DECAL,37mm x 70mm

CIH

2шт.

6

87536815

SPLINED COUPLING,466.67mm OD

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

8

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

9

87679108

DECAL

Emblem Case/IH

1шт.

10

87105048

DRAINCOCK/TAP SUPPLY

1шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

12

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

12шт.
