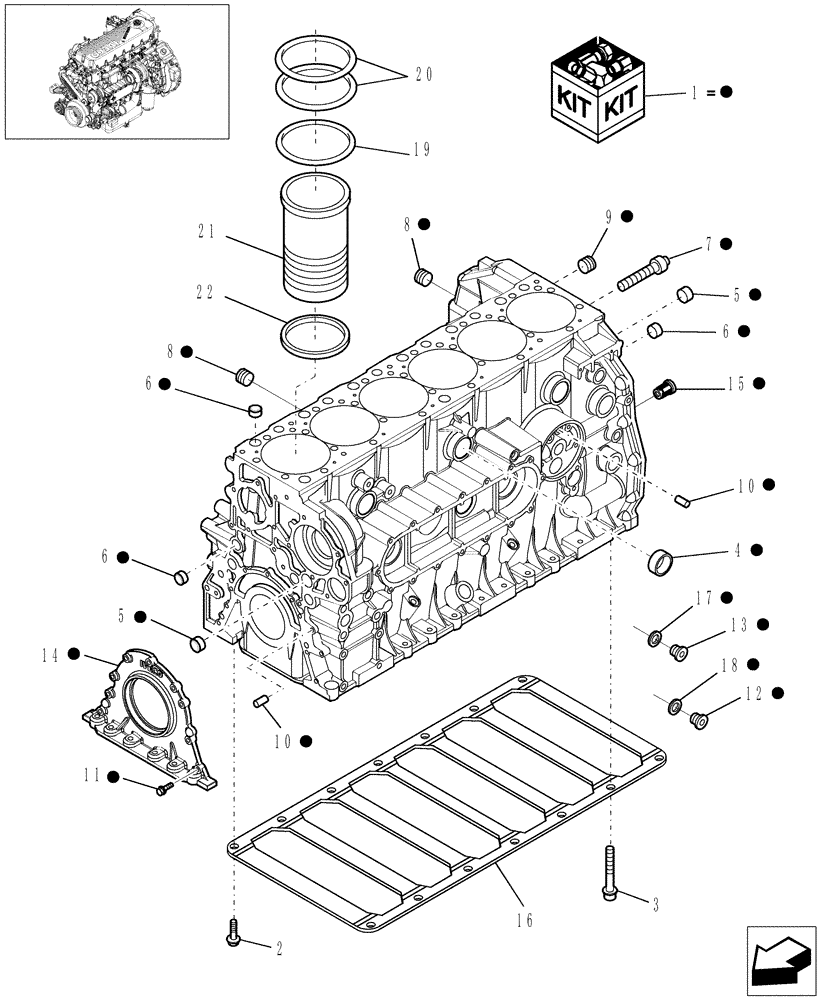

Запчасти Case IH 7120 (10.001.04[01]) - CYLINDER BLOCK & RELATED PARTS - 7120/7120(LA) (10) - ENGINE

1

504219039

CYLINDER BLOCK

Block, Cylinder

1шт.

2

504125417

SCREW

M16 x 2 x 68

14шт.

3

18139424

SCREW,Hex, M10 x 20mm

M10 x 20

12шт.

4

16991370

PLUG

D = 45 mm

4шт.

5

16990870

PLUG

D = 28 mm

3шт.

6

16990670

PLUG,Lock, 22mm Dia

D = 22 mm

10шт.

7

500356932

PLUG

D = 12 mm

3шт.

8

504051237

PLUG

D = 1/4"

3шт.

9

504051236

PLUG,Threaded, 1/8"

D = 1/8"

1шт.

10

500314967

DOWEL

D = 10 mm

3шт.

11

16673735

BOLT,Hex, M8 x 1.25 x 25mm

M8 x 25

9шт.

12

16992515

PLUG

Threaded, M19 x 1.5

1шт.

13

16887515

PLUG

Threaded, M12 x 1.5

1шт.

14

504125098

COVER ASSY

1шт.

15

504142601

VALVE

1шт.

16

504127723

PLATE

Stiffener

9шт.

17

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

D = M12 x 20

1шт.

18

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18 x 26 x 1.5

1шт.

19

99459175

GASKET

M120.24 x 3.53

6шт.

20

99459176

GASKET

M120.24 x 3.53

12шт.

21

504305869

LINER, ENGINE CYLIND

6шт.

22

504128648

SHIM

THK 0,08 mm

6шт.

22

504128649

SHIM

THK 0,1 mm

6шт.

22

504128650

SHIM

THK 0,12 mm

6шт.

22

504128651

SHIM

THK 0,14 mm

6шт.
